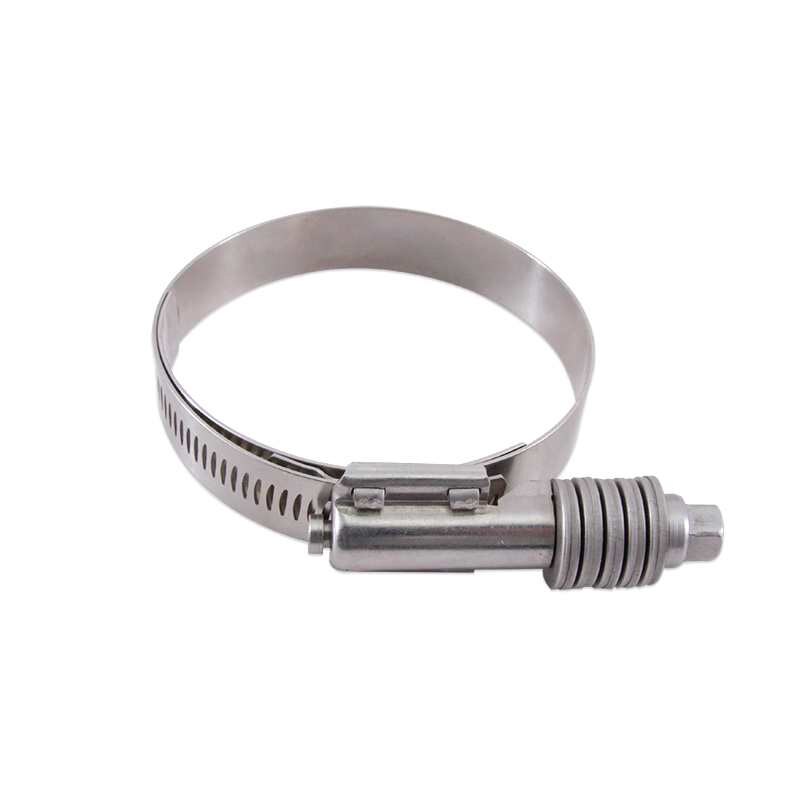

Worm Gear Clamp, Constant Tension, Silver, 1.77 in - 2.60in (45mm-66mm) - Mishimoto - MMCLAMP-CTWG-66

Just like our high-torque worm gear clamps Mishimoto's Constant Tension Worm Gear Clamps are an effective solution to a wide range of clamping needs. Where this 1.77in - 2.60in (45mm - 66mm) constant tension worm gear clamp excels however is in high-temperature applications. The spring on the adjustment bolt allows the clamp to exert continuous pressure through a wide range of temperatures to ensure your parts stay clamped as strong as the day you installed them. This 1.77in - 2.60in (45mm - 66mm) constant tension worm gear clamp is made from stainless steel to weather any environment and ensure a tight seal for years to come. Our constant tension worm gear clamps are also available in a wide variety of other sizes to suit everything from coolant lines to intake pipes. Like all Mishimoto products this 1.77in - 2.60in (45mm - 66mm) constant tension worm gear clamp is backed by our Mishimoto Lifetime Warranty.
Securely clamps pipes couplers and hoses with an outer diameter from 1.77- 2.60-in (45mm-66mm)
Constant tension spring maintains clamping pressure through a wide range of temperatures
Worm gear design for quick and easy tightening
Material: Stainless Steel
Size: 2.6 IN
Maximum Diameter: 2.6 IN
Minimum Diameter: 1.77 IN
Reusable: Yes
Color: Silver
Band Width: 0.62 IN
Finish: Plain
Spring Material: Steel
Type: Worm Gear
Grade Type: Premium
Recommended Torque: 168 PPI
SAE Size: 42
SAE Type: F
Install Difficulty: 1
OptionLabel: Stainless Steel
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Securely clamps pipes couplers and hoses with an outer diameter from 1.77- 2.60-in (45mm-66mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Worm gear design for quick and easy tightening
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Band Width (in): 0.62
TechSpec Clamp Style: Constant Tension Worm Gear Clamp
TechSpec Includes: (1) Mishimoto Constant Tension Worm Gear Clamp--Mishimoto Lifetime Warranty
TechSpec Material: Stainless Steel
TechSpec Maximum Clamp Diameter (in): 2.6
TechSpec Minimum Clamp Diameter (in): 1.77
TechSpec Note: If using this clamp we recommend purchasing:--MMICP-SS-2251----MMICP-SS-250----MMICP-SS-259----MMICP-SS-251----MMICP-AL-2750----MMICP-AL-2759----MMICP-AL-2751----MMICP-AL-30----MMICP-AL-39----MMICP-AL-31----MMICP-AL-40
TechSpec Recommended Tightening Torque: 14 lb-ft (20 NM)
TechSpec SAE Number: 262
