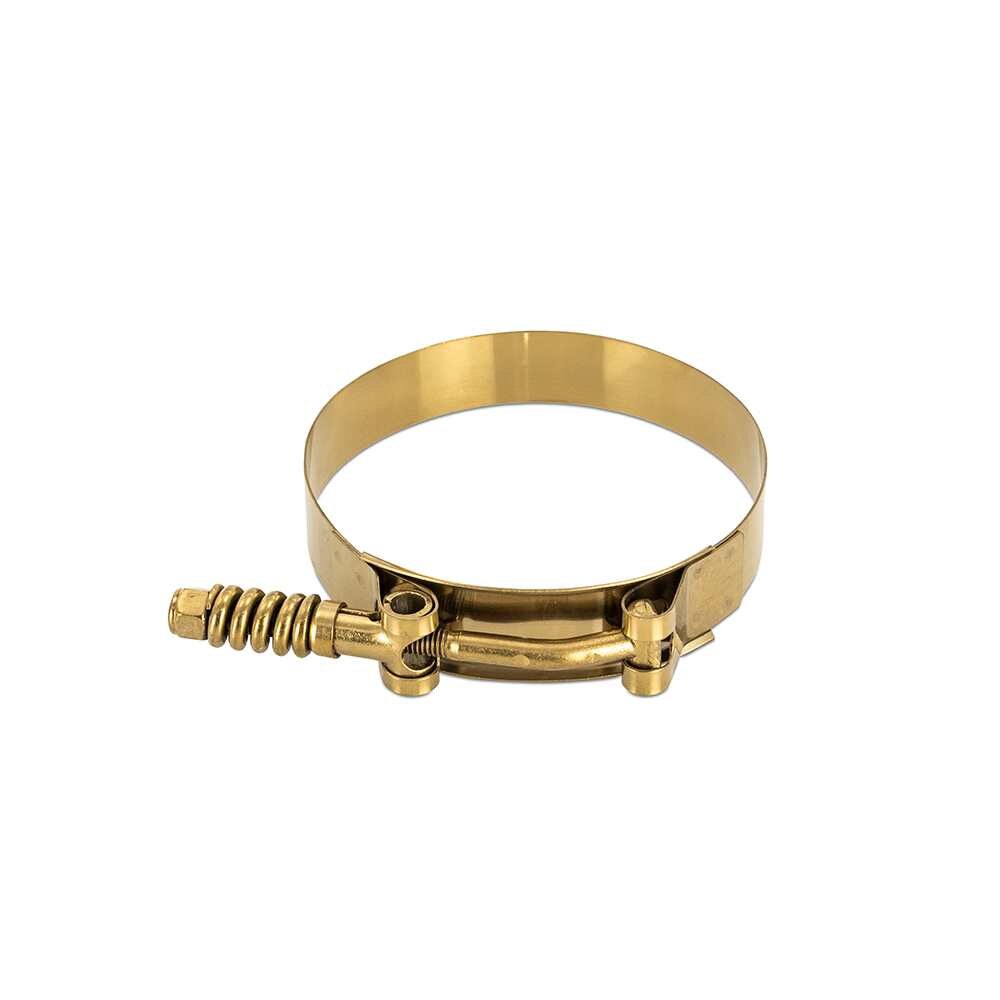

T-Bolt Clamp, Stainless-Steel, Constant Tension, Gold, 3.75in - Mishimoto - MMCLAMP-375TGD

Mishimoto's Constant Tension T-bolt Clamps are the ideal choice for clamping hoses and couplers that see a wide range of temperature and where high clamping force is needed. This 3.5" - 3.82" (89mm - 97mm) constant tension T-bolt clamps takes the superior clamping force of our traditional T-bolt clamp and adds even more reliability. A spring on the adjustment bolt allows the clamp to expand and contract with temperature swings while keeping constant pressure on the clamped parts. Like our traditional T-bolt clamps these constant tension T-bolt clamps include a locking nut to prevent loosening under vibration. Like all Mishimoto clamps this 3.5" - 3.82" (89mm - 97mm) constant tension T-bolt clamp is backed by our Mishimoto Lifetime Warranty.
Securely clamps pipes couplers and hoses with an outer diameter from 3.5- 3.82-in (89mm-97mm)
Constant tension spring maintains clamping pressure through a wide range of temperatures
Included self-locking nut prevents loosening with movement and vibration
Material: Stainless Steel
Size: 3.75 IN
Maximum Diameter: 3.82 IN
Minimum Diameter: 3.5 IN
Reusable: Yes
Color: Gold
Band Width: 0.75 IN
Finish: Plain
Spring Material: Steel
Type: T-Bolt
Grade Type: Premium
Recommended Torque: 27 PPI
SAE Size: 62
SAE Type: F
Install Difficulty: 1
OptionLabel: Gold
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Securely clamps pipes couplers and hoses with an outer diameter from 3.5- 3.82-in (89mm-97mm)
SellingPoint02: Constant tension spring maintains clamping pressure through a wide range of temperatures
SellingPoint03: Included self-locking nut prevents loosening with movement and vibration
SellingPoint04: Stainless steel construction resists corrosion longer than zinc-plated clamps
SellingPoint05: Optional wear-resistant titanium nitride gold coating provides unique engine bay styling
SellingPoint06: Clamps sold individually
SellingPoint07: Mishimoto Lifetime Warranty
SellingPoint08: N/A
SellingPoint09: N/A
SellingPoint10: N/A
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Band Width (in): 0.75
TechSpec Clamp Style: Constant Tension T-Bolt Clamp
TechSpec Includes: (1) Mishimoto Stainless Steel Constant Tension T-Bolt Clamp--Mishimoto Lifetime Warranty
TechSpec Material: Stainless Steel
TechSpec Maximum Clamp Diameter (in): 3.82
TechSpec Minimum Clamp Diameter (in): 3.5
TechSpec Note: N/A
TechSpec Recommended Tightening Torque: 27 in-lbs (3 NM)
TechSpec SAE Number: N/A
