Baffled Oil Catch Can, CCV Side, fits Toyota GR Supra 3.0L 2020+ - Mishimoto - MMBCC-SUP-20CBE

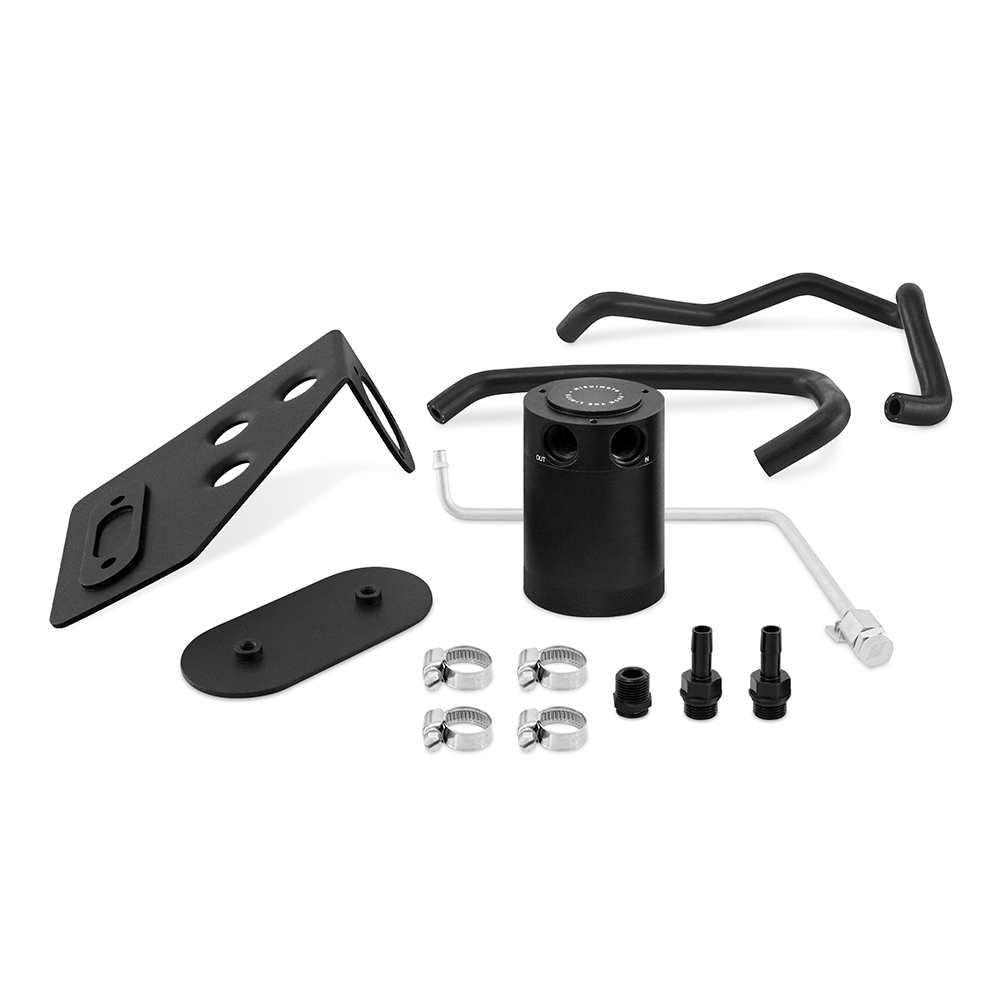

The Supra is back! This means that now is the perfect time to add a layer of protection to your B58 with the Mishimoto 2020+ Toyota Supra Baffled Oil Catch Can. The tag-team between Toyota and BMW resulted in a sleek new look for the A90 Supra teeming with power technology and efficiency. However the inevitable side effect of blow-by still found its way to this Supra which will lead to carbon build-up on the intake valves eventually slowing this Supra down. Our catch can kit utilizes the proven engineering from the patent-pending Mishimoto 2-Port Compact Baffled Oil Catch Can complete with its 50-micron bronze filter and internal baffle to better separate the oil and fuel from crankcase vapors. The compact catch can is constructed from 6061 aluminum and sealed with Viton O-rings to stand up to anything the Supra can throw at it. This can mounts in line with the B58's CCV system and defends the intercooler intake system and VANOS system from carbon build-up and helps maintain proper octane levels to reduce potential detonation. The Mishimoto Toyota Supra Catch Can Kit includes two pre-molded direct-fit hoses which require no modification to tie into the Supra's CCV system. Our kit also includes a specially designed hard-line drain system complete with a threaded drain plug for simplified servicing and long-lasting protection for your Supra. Like every Mishimoto oil catch can this baffled catch can kit comes with the Mishimoto Lifetime Warranty!Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by can condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans you won?t want that draining back i
Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
Application-specific bracket mounts the can in a serviceable location
Direct-fit hoses allow for installation with no modification to engine cover
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Powder Coat
Install Difficulty: 2
Installation Difficulty: 2
Material: Aluminum
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2020+ Toyota Supra 3.0L
SellingPoint02: Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
SellingPoint03: Application-specific bracket mounts the can in a serviceable location
SellingPoint04: Direct-fit hoses allow for installation with no modification to engine cover
SellingPoint05: Application-specific lid designed so fitting size matches CCV line size
SellingPoint06: Billet 6061 aluminum sealed can
SellingPoint07: Defends intercooler intake system from oil blow-by
SellingPoint08: Helps maintain proper octane levels to reduce potential detonation
SellingPoint09: Internal air diverter increases air turbulence to improve oil separation
SellingPoint10: Filters and can are fully serviceable
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
