BMW N20/N26 Baffled Oil Catch Can Kit, 2011-2017 - Mishimoto - MMBCC-N20N26-12CBE2

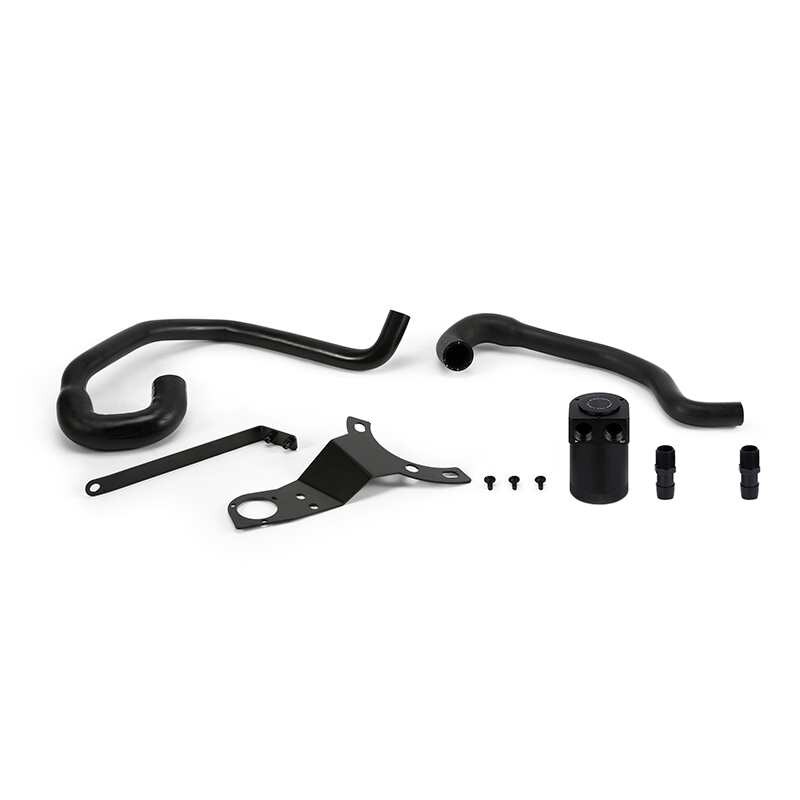

The Mishimoto BMW N20/N26 Baffled Oil Catch Can is designed and engineered to reduce carbon buildup a common issue with the direct fuel injection N20 and N26 engines. The Mishimoto BMW N20/N26 catch can kit uses the proven engineering from the Mishimoto 2-Port Compact Baffled Oil Catch Can with a bronze filter and internal baffled to better separate the oil from the crankcase vapors. The engineers at Mishimoto designed a CNC-machined lid which features large inlet/outlets in order to match the inner dimension of the CCV hose. This baffled oil catch can will defend your intercooler intake system and VANOS system from oil-blowby and help maintain proper octane levels to reduce potential detonation. The kit comes with two direct-fit hoses which require no modification to the engine cover and one direct fit mounting bracket that not only is extremely easy to install but also mounts the can in a serviceable location! Two CNC-machined aluminum 3/4in barb fittings connect the hoses to the can. Like all of our products this baffled catch can kit comes with the Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
Application-specific bracket mounts the can in a serviceable location
Direct fit hoses allow for installation with no modification
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 4 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Anodized
Install Difficulty: 3
Installation Difficulty: 3
Material: 6061 Aluminum
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Single 2-Port Compact Baffled Oil Catch Can with application-specific lid mounts in line with the CCV system to separate oil particles using 50 micron bronze filter
SellingPoint02: Application-specific bracket mounts the can in a serviceable location
SellingPoint03: Direct fit hoses allow for installation with no modification
SellingPoint04: Application-specific lid designed so fitting size matches CCV line size
SellingPoint05: Billet 6061 aluminum sealed can
SellingPoint06: Defends intercooler intake system and VANOS system from oil blow-by
SellingPoint07: Helps maintain proper octane levels to reduce potential detonation
SellingPoint08: Filters and can are fully serviceable
SellingPoint09: Internal air diverter turbulates air longer to improve oil separation
SellingPoint10: Patent Nos. US ZL 202120175368.7 US D966 372 S
SellingPoint11: Mishimoto Lifetime Warranty
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Height (in): N/A
TechSpec Includes: N/A
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Mishimoto BMW N20/N26 Baffled Oil Catch Can Kit 2011-2017
