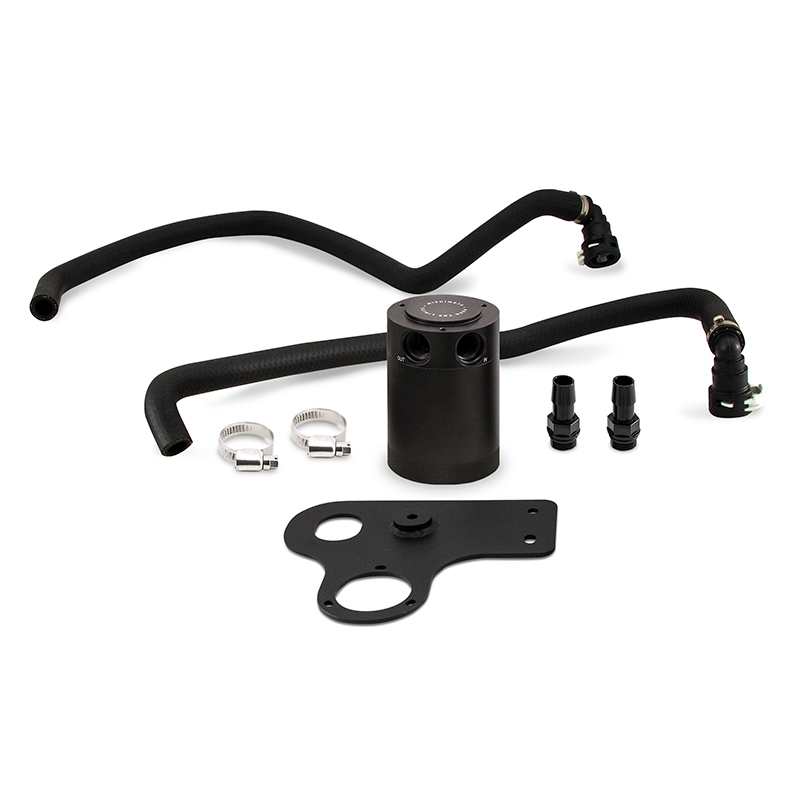

Ford Mustang GT Baffled Oil Catch Can, PCV Side, 2018-2023 - Mishimoto - MMBCC-MUS8-18PBE

Your 5.0 Coyote engine needs protection now more than ever in your 2018-2023 Mustang GT. With the introduction of direct injection along with more power in Ford's 3rd Gen Coyote the intake tract is more at risk to the dangers of blow-by. Engine blow-by can cause an oily mess inside intake manifolds and decrease octane levels potentially increasing chances of detonation. Mishimoto's 2018-2023 Mustang catch can kit features a patent-pending 2-port Compact Baffled Oil Catch Can with a 50-micron bronze filter and an internal baffle to better separate oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Reducing blow-by becomes even more important with the addition of forced induction so this 2018-2023 Mustang catch can kit mounts away from most intake and supercharger kits to make room for some more horses. When you're on the road with that 5.0L Coyote you'll have the peace of mind knowing that blow-by isn't stripping away any of your treasured HP. To back up Mishimoto's superior craftsmanship each 2018-2023 Mustang catch can kit comes with the renowned Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
Installs in under 30 minutes
Robust application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Powder Coat
Install Difficulty: 2
Installation Difficulty: 2
Material: 6061 Aluminum
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2018-2023 Ford Mustang GT
SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
SellingPoint03: Installs in under 30 minutes
SellingPoint04: Robust application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
SellingPoint05: Catch can has a 2 oz. capacity for longer servicing intervals
SellingPoint06: Silicone hoses include pre-attached stock-style quick-disconnect fittings for a true plug-and-play install
SellingPoint07: Billet 6061 aluminum sealed can
SellingPoint08: Defends intake system and essential components from oil blow-by
SellingPoint09: Helps maintain proper octane levels to reduce potential detonation
SellingPoint10: Filter and can are fully serviceable
SellingPoint11: Internal air diverter turbulates air longer to improve oil separation
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
