Dodge Charger, Chrysler 300C 6.4L Direct Fit Catch Can Kit, 2015+ - Mishimoto - MMBCC-MOP64-15PBEBK

Give your 6.4L Hemi the protection it deserves with the Mishimoto Direct Fit catch can specifically designed for the 2015+ Dodge Charger. This monstrous V8 packs a serious punch meaning that it also produces a significant amount of blow-by which over time will build carbon on the intake components and throttle your muscle car?s power and efficiency as a result. Our catch can kit installs in line with the PCV system using an application specific bracket and chemical resistant OEM styled hoses to intercept the contaminated crankcase pressure before making its way to the intake tract. Our tired and true compact catch can features an internal baffle designed to aid in the condensation of oil droplets and fuel vapors sending only clean air back through the Hemi. As an added line of protection our cans include a 50 micron bronze filter to capture any rogue blow-by droplets without sacrificing flow. Finally our 3 oz. cans and CNC-machined aluminum fittings are sealed with Viton O-rings to ensure that all collected blow-by stays in the can. Our Mopar 6.4L catch can kit is available with the option of a black or polished can and includes the Mishimoto Lifetime Warranty. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what We've seen in the bottom of our catch cans you won?t want that draining back into your oil either.
Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
Billet 6061 aluminum can sealed with Viton O-rings
Defends intake components from oil blow-by
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Install Difficulty: 2
OptionLabel: Black Can
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2012-2014 Dodge Charger and Chrysler 300C 6.4L
SellingPoint02: Single 2-Port Compact Baffled Oil Catch Can separates oil particles using 50-micron bronze filter
SellingPoint03: Billet 6061 aluminum can sealed with Viton O-rings
SellingPoint04: Defends intake components from oil blow-by
SellingPoint05: Helps maintain proper octane levels to reduce potential detonation
SellingPoint06: Internal air diverter increases air turbulence to improve oil separation
SellingPoint07: Filters and can are fully serviceable
SellingPoint08: 3 oz. capacity for longer service intervals
SellingPoint09: Available in anodized black or polished finishes
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2015+ Dodge Charger SRT 6.4L--2015+ Chrysler 300C SRT 6.4L
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: 6.4L Hemi
TechSpec Height (in): N/A

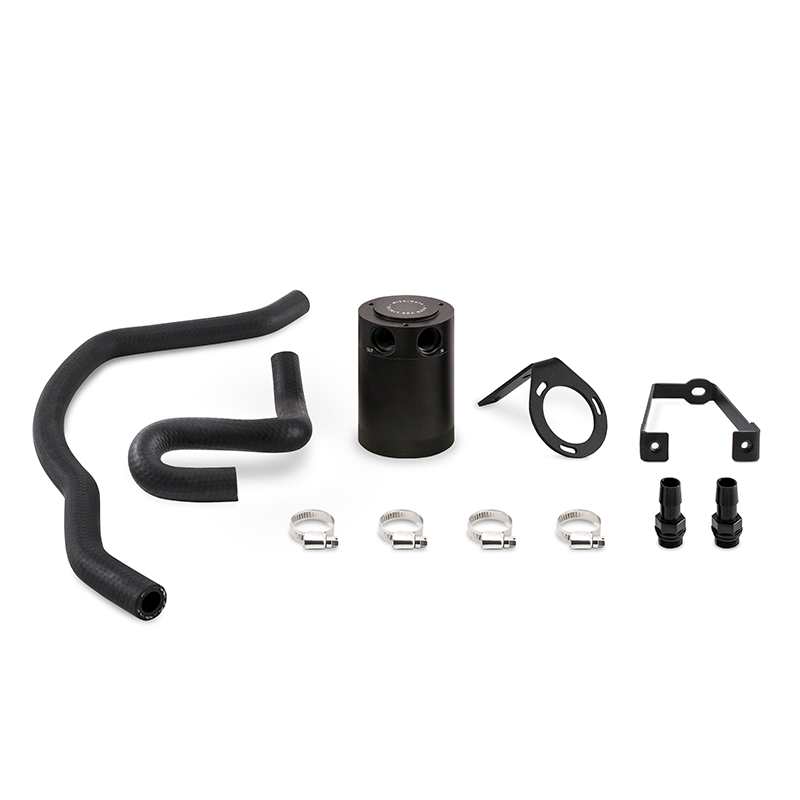

TechSpec Includes: (1) Compact Baffled Oil Catch Can--(1) Application-Specific Mounting Bracket--(2) Direct-Fit Hoses Black--(4) High-Quality Worm Gear Clamps--(2) CNC-machined Aluminum Barbed Fittings--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: 6061 Aluminum
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Mishimoto Dodge Charger Chrysler 300C 6.4L Direct Fit Catch Can Kit 2015+
