Mazda Miata Baffled Oil Catch Can Kit, 2016+ - Mishimoto - MMBCC-MIA-16PBE

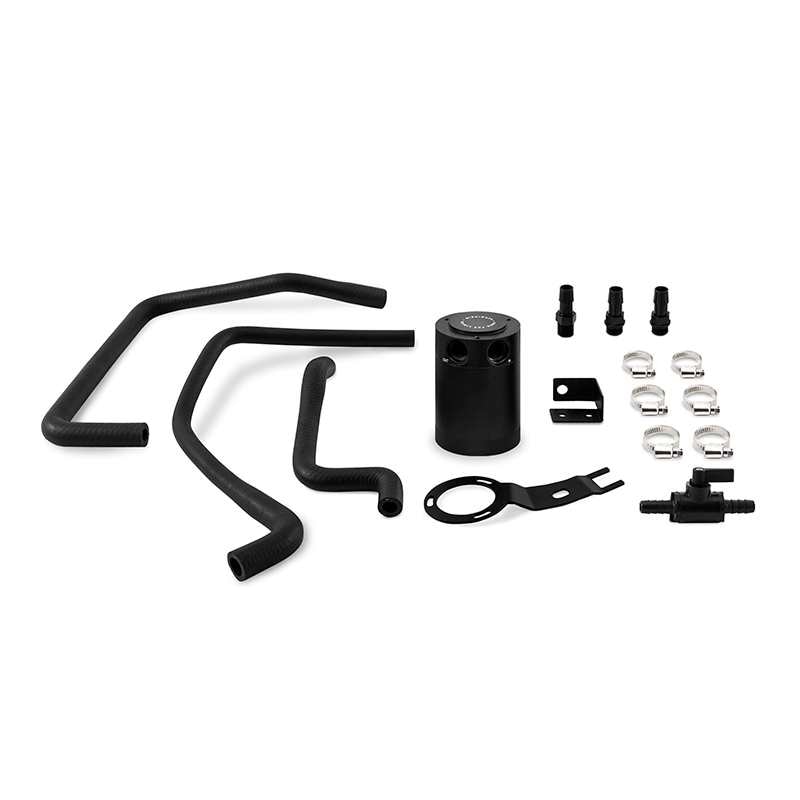

With the release of the new 2016 Mazda Miata the Mishimoto engineers are hard at work looking for ways to improve engine efficiency. They created this new direct-fit Miata oil catch can system to help protect the heart of your Miata from harmful blow-by. Direct injection engines like the one in the 2016 Miata suffer from accelerated carbon build up due to the lack of port injection which washes the valves with fuel during engine operation. The engineers saw a significant coating of oil build up while examining the intake manifold. The oil was coming from the PCV system which contributed to carbon accumulation and a decrease in octane levels. Mishimoto's new Miata catch can system helps to prevent this blow-by from reaching the intake resulting in a cleaner running engine. Mishimoto's Mazda Miata oil catch can kit features Mishimoto's 2-port Compact Baffled Oil Catch Can with a bronze filter and internal baffle to better separate the oil from the crankcase vapors. Two direct-fit hoses and an application-specific bracket make for a quick and simple installation. Like all Mishimoto ND Miata parts this catch can kit comes with the Mishimoto Lifetime Warranty! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Single can mounts in-line with the PCV system to separate oil particles using 50 micron bronze filter
Application-specific bracket mounts the can in a serviceable location inside the engine bay
Features integrated drain valve and hose for easy service
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Powder Coat
Install Difficulty: 2
Installation Difficulty: 2
Material: 6061 Aluminum
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Single can mounts in-line with the PCV system to separate oil particles using 50 micron bronze filter
SellingPoint02: Application-specific bracket mounts the can in a serviceable location inside the engine bay
SellingPoint03: Features integrated drain valve and hose for easy service
SellingPoint04: Fits RHD and LHD vehicles
SellingPoint05: Will not interfere with stock or aftermarket strut tower bars
SellingPoint06: Silicone hoses come pre-molded for a reliable install
SellingPoint07: Billet 6061 aluminum sealed can
SellingPoint08: Defends intake system and essential components from oil blow-by
SellingPoint09: Helps reduce carbon build-up on the intake valves
SellingPoint10: Helps maintain proper octane levels to reduce potential detonation
SellingPoint11: Filter and can are fully serviceable
SellingPoint12: Internal air diverter turbulates air longer to improve oil separation
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Height (in): N/A
TechSpec Includes: N/A
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Mishimoto Mazda Miata Baffled Oil Catch Can Kit 2016+
