Baffled Oil Catch Can System, fits Ford F-150 3.5L EcoBoost 2021.5+ - Mishimoto - MMBCC-F35T-21

Turbocharging and direct-injection are quickly becoming the go-to method for building powerful and efficient trucks. However if not carefully maintained they can become a problem for your 2021.5+ Ford F-150 3.5L EcoBoost.----Direct injection makes the 3.5L EcoBoost one of the most efficient engines ever fitted to the F-150 but without the benefit of fuel washing over the back of the intake valves blow-by is free to accumulate in the form of carbon deposits. Eventually those carbon deposits can choke your engine and reduce its performance. Thankfully Mishimoto has a solution.----Mishimoto's 2021.5+ Ford F-150 3.5L EcoBoost Catch Can Kit protects your intake tract and valves from the harmful effects of blow-by and carbon accumulation. The dual-can setup ensures that blow-by is routed away from your intake and valves in all driving conditions. Our road-proven 12 fl. oz. baffled catch can holds more blow-by for extended service intervals. Whether you're hard on the throttle or cruising around town these cans have your engine's back.----The powder coated 3mm-thick steel bracket is strong enough to handle any terrain a work truck off-roader or daily driver will see and the pre-installed quick-disconnect fittings make installation a breeze. Of course this catch can kit is backed by our Mishimoto Lifetime Warranty so you can rest easy knowing your 2021.5+ F-150 3.5L EcoBoost is protected from blow-by for as long as you own it.
Patent #US D884 760 S
N/A
Dual-can setup captures blow-by from both the PCV and CCV systems
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2021.5+ Ford F-150 3.5L EcoBoost
SellingPoint02: Dual-can setup captures blow-by from both the PCV and CCV systems 2N
SellingPoint03: Includes oversized 12 fl. oz. can for longer service intervals 03
SellingPoint04: CCV side accommodates stock pressure sensor for CEL-free running 4K
SellingPoint05: Application-specific lines fit with stock engine cover 5I
SellingPoint06: 3mm-thick steel bracket won’t bend rattle or break under heavy abuse
SellingPoint07: Includes stock-style quick-disconnect fittings
SellingPoint08: Filters and cans are fully serviceable 8U
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: Patent No. US D884 760
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2021+ Ford F-150 3.5L EcoBoost--2021+ Ford Raptor 3.5L EcoBoost
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: 3/8-IN NPT
TechSpec Engine Codes: 3.5L EcoBoost
TechSpec Height (in): N/A

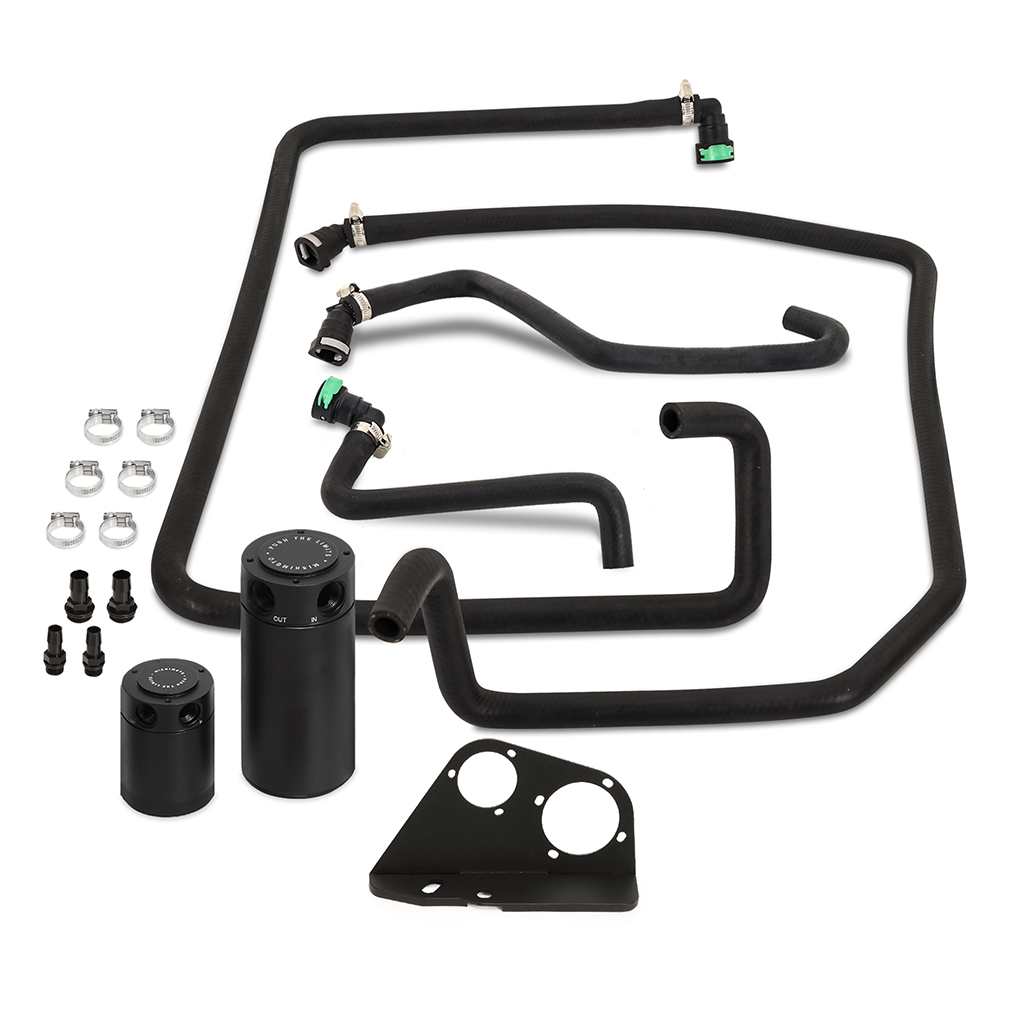

TechSpec Includes: (1) Application-Specific Mounting Bracket--(1) 12 fl oz Black Anodized 6061 Aluminum Catch Can--(1) 3 fl oz Black Anodized 6061 Aluminum Catch Can--(4) Direct-Fit Hoses--(4) Pre-Installed Quick-Disconnect Fittings--(4) CNC-Machined Aluminum Barbed Fittings--(2) Bronze Filters--(2) Air Diverters--(2) Internal Baffle and Rods--(2) 3/8 NPT Plugs--(2) Large O-Rings--(6) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: To remove the fittings use a pick tool underneath the orange tab and depress the 3x barbs while pulling the fitting away to disengage them. These fittings are designed to be tamper-proof and may be difficult to remove. Alternatively remove the CCV breather fitting from the intake manifold and the section of the intake tube to the CCV hose is attached to then the assembly can be removed from the vehicle for better access to the fitting barbs.
TechSpec Material: Steel
TechSpec Note: Fits mid-2021+ models please verify this product fits your F-150 before purchasing.----After installation Mishimoto recommends checking the contents of the baffled catch cans every 1 000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle. 23
TechSpec Outlet: N/A
