Ford 6.0L Powerstroke Baffled Oil Catch Can Kit, 2003-2007 - Mishimoto - MMBCC-F2D-03BE

High-output engines require high-flow crankcase ventilation. More air and fuel going into the cylinder means more blow-by working its way past the piston rings and traveling around your intake system. All that volume needs room to flow and if you?re using a catch can it better flow well too. Luckily Mishimoto has created a catch can that meets those needs. Our high-flow catch can utilizes a high-capacity bottom with a 5.3 fl. oz. capacity. The CNC-machined lid includes large M27 x 2.0 inlets and outlets to let your crankcase breathe. Inside the can is a newly engineered CNC-machined baffle with integrated filter that lets crankcase gases flow through while filtering out potentially harmful fuel oil and water vapors. Like our compact baffled oil catch can our high-flow catch can and filter are fully serviceable for easy draining and cleaning. The included 3/8? NPT plug in the bottom of the can allows you to drain the can without removing the bottom or attach our available drain kit for even easier servicing. To make this kit direct-fit for your 2003-2007 Ford 6.0L Powerstroke Mishimoto includes a custom-engineered bracket that bolts to the driver?s side frame rail just behind the wheel well. This mounts the can in an easy to access location that?s out of the way of engine components. The 3mm thick steel bracket is gusseted and powder-coated black for the highest strength and resistance to the elements. Also included with this kit is a set of direct-fit nitrile hoses to carry blow-by away from your engine and into the catch can. Of course all our catch can kits come with Mishimoto's Lifetime Warranty with Accident Protection and this kit is no exception.

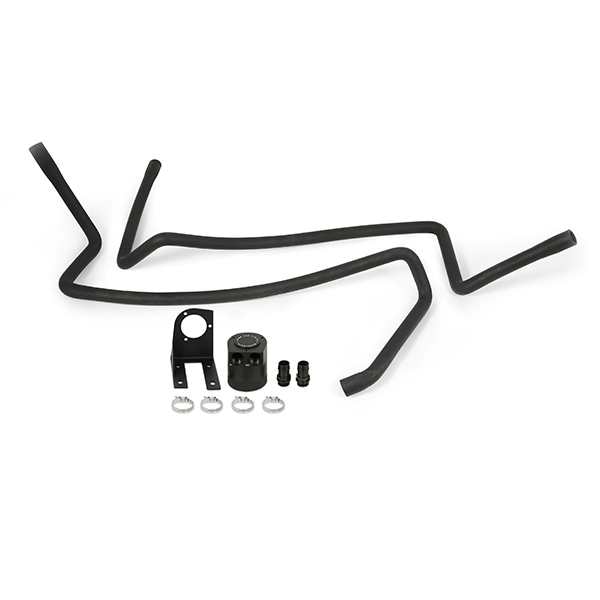

Direct-fit for 2003-2007 Ford 6.0L Powerstroke
High-flow catch can allows your crankcase to breathe while filtering out harmful oil fuel and water vapors
Sturdy 3mm thick steel bracket mounts the catch can in an easily accessible location for easy servicing
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 3.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 1.1 IN
Inlet Port Inside Diameter: 1.1 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3 IN
Maximum Can Capacity: 5.3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct-fit for 2003-2007 Ford 6.0L Powerstroke
SellingPoint02: High-flow catch can allows your crankcase to breathe while filtering out harmful oil fuel and water vapors
SellingPoint03: Sturdy 3mm thick steel bracket mounts the catch can in an easily accessible location for easy servicing
SellingPoint04: Includes durable CNC-machined aluminum hose-barb fittings
SellingPoint05: 5.3 fl. oz. capacity for improved flow and extended service intervals
SellingPoint06: Powder-coated bracket for maximum durability in all conditions
SellingPoint07: Filter and can are fully serviceable
SellingPoint08: Patent No. US D884 761
SellingPoint09: Mishimoto Lifetime Warranty
