Honda Civic Type R Baffled Oil Catch Can Kit, 2017+ - Mishimoto - MMBCC-CTR-17PBERD2

The 2017+ Honda Civic Type R is the current king of the hot hatchbacks and It's easy to see why. The mighty K20C1 produces 305hp and-with the help of Honda's state-of-the-art torque-vectoring differential and suspension-delivered a record-shattering lap time around the Nurburgring immediately putting it on a level of its own. However performance like this comes at a cost. The complexity of combining a direct-injected fuel delivery system with high-compression and turbocharged power leaves the top-end components susceptible to the symptoms of blow-by like clogged intake valves and intercooler internals coated with oil. The result is unwarranted temperature reduction of this year's scolding hot hatch. End the assault of engine blow-by in your 2017+ Honda Civic Type R with the Mishimoto Direct-Fit Baffled Oil Catch Can kit. This kit includes everything you need to protect your investment in a limited run FK8 Type R. It contains hoses designed specifically for the K20C1's PCV system simplifying the installation process. For added protection a one-way check valve has been incorporated into the lines to ensure that the crankcase gasses are always flowing in the right direction. Included in the kit is a mounting bracket engineered to fit directly on the Type R's firewall. The setup holds our 2oz. compact oil catch can steady in any driving condition. Our bracket is available in black or Rallye Red to add some extra flare under the hood of the Civic Type R. All these benefits and features are complemented by the Mishimoto Lifetime Warranty.
Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
Installs in under 30 minutes
Robust application-specific bracket mounts the can in a serviceable location
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Red
Finish: Powder Coat
Install Difficulty: N/A
Installation Difficulty: 2
Material: 6061 Aluminum
OptionLabel: Red Bracket
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the left hand drive 2017+ Honda Civic Type R
SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
SellingPoint03: Installs in under 30 minutes
SellingPoint04: Robust application-specific bracket mounts the can in a serviceable location
SellingPoint05: Bracket available in Black or Rallye Red
SellingPoint06: Catch can has a 2 oz. capacity for longer servicing intervals
SellingPoint07: Integrated check valve prevents leaks by keeping boost pressure from reaching the catch can and crankcase.
SellingPoint08: Billet 6061 aluminum sealed can is fully serviceable
SellingPoint09: Internal air diverter increases air turbulence to improve oil separation
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2017+ Honda Civic Type R
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: FK8/FL5
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: K20C1
TechSpec Height (in): N/A

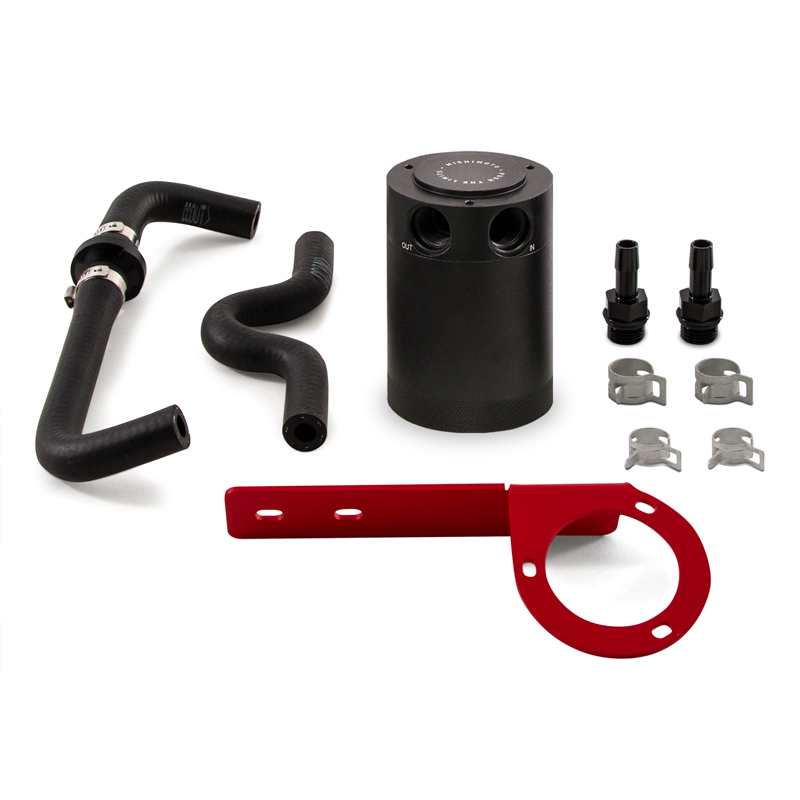

TechSpec Includes: (1) Compact Baffled Oil Catch Can--(1) Application Specific Mounting Bracket--(2) Direct-Fit Hoses with Integrated Check Valve--(4) Spring Clamps--(2) 3/8-in Aluminum Barbed Fittings--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: 6061 Aluminum
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Mishimoto Honda Civic Type R Baffled Oil Catch Can Kit 2017+
