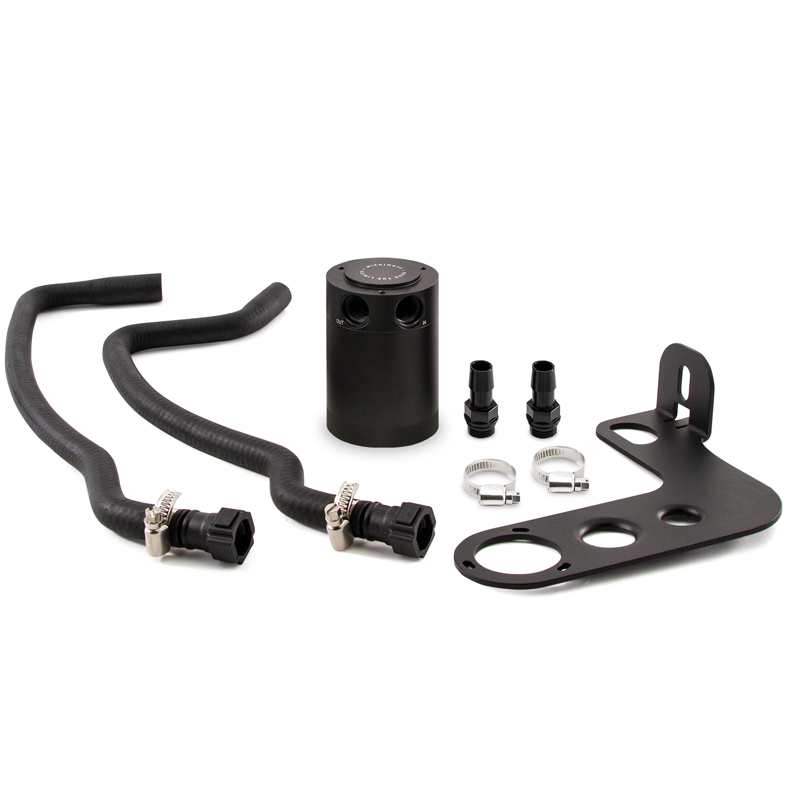

Chevrolet Camaro SS Baffled Oil Catch Can Kit 2010-2015 - Mishimoto - MMBCC-CSS-10PBE

The LS3 engines fitted to the 5th Gen Camaro SS generate an impressive 400+ horsepower from their eight cylinders. But those eight cylinders produce something a little less impressive: blow-by. Oil fuel and other by-products of combustion squeeze their way past piston rings with each stroke. Left unchecked that blow-by can work its way into your Camaro's intake and rob the engine of power and efficiency. Enter the Mishimoto 2010-15 Camaro SS direct-fit catch can kit. Our catch cans feature air diverters and an internal baffle to help slow incoming air condensing oil and fuel vapors. To further prevent any blow-by from escaping the catch can outlet employs a 50-micron bronze filter. This kit will ensure that blow-by vapors never make their way back into your intake. The catch can mounts to your Camaro via a bracket that has been custom designed to fit without any drilling or cutting. Direct-fit lines complete with quick-disconnect fittings mate our can to your factory Chevrolet PCV system for an easy and seamless install. Of course this kit is backed by Mishimoto's Lifetime Warranty for lifetime peace of mind. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
Installs in under 30 minutes
Robust application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Aluminum
Install Difficulty: 2
Installation Difficulty: 1
Material: 6061 Aluminum
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2010-2015 Chevrolet Camaro SS manual transmission
SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
SellingPoint03: Installs in under 30 minutes
SellingPoint04: Robust application-specific bracket mounts the can in a serviceable location away from most intake and supercharger kits
SellingPoint05: Works in conjunction with the stock air/oil separator to deliver maximum protection for your engine
SellingPoint06: Catch can has a 2 oz. capacity for longer servicing intervals
SellingPoint07: Silicone hoses include pre-attached stock-style quick-disconnect fittings for a true plug-and-play install
SellingPoint08: Defends intake system and essential components from oil blow-by
SellingPoint09: Helps maintain proper octane levels to reduce potential detonation
SellingPoint10: Billet 6061 aluminum sealed can is fully serviceable
SellingPoint11: Internal air diverter increases air turbulence to improve oil separation
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: N/A
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Height (in): N/A
TechSpec Includes: N/A
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: N/A
TechSpec Note: For 2010 and 2011 models you will need to purchase GM part # 22762586 to have the correct bushing required for installation
TechSpec Outlet: N/A
Title: Mishimoto Chevrolet Camaro SS Baffled Oil Catch Can Kit 2010-2015
