Honda Civic 1.5L T Baffled Oil Catch Can, PCV Side, 2016-2021 - Mishimoto - MMBCC-CIV-16PBE

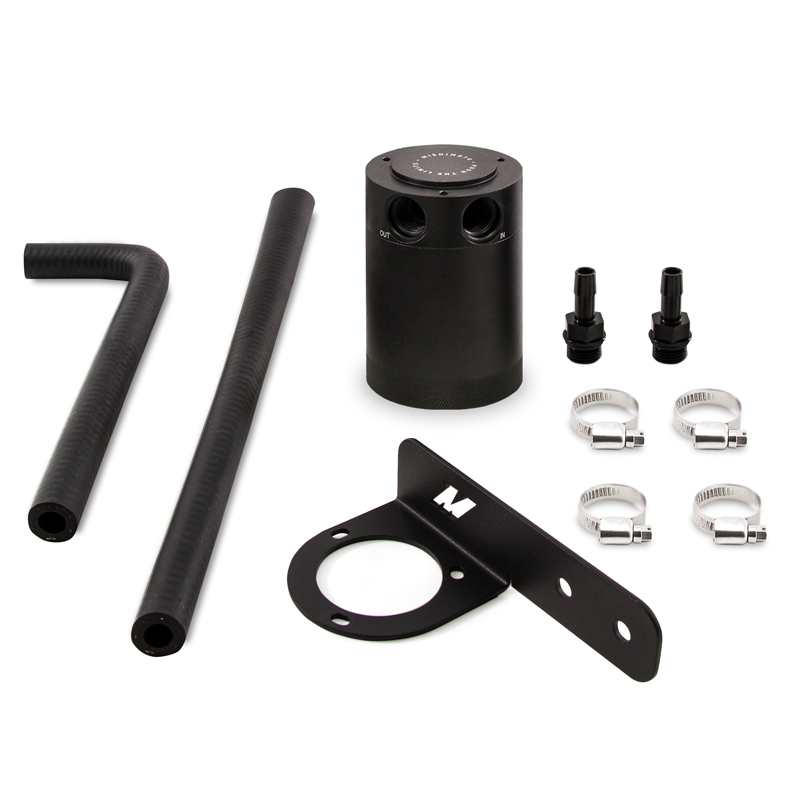

We here at Mishimoto are very excited to see the first turbocharged Honda engine in the US domestic market. It may be small but It's still packs a punch for having a displacement of only 1.5L. The Mishimoto Civic catch can will make sure that your 1.5L turbocharged engine keeps running like it just rolled off the assembly line. The 2-port baffled catch can mounts in the back of the engine bay by means of the included application-specific bracket. The 50 micron bronze filter keeps blow-by from making a mess of your intake tract. This 2016-2021 Civic catch can kit includes direct-fit hoses to make for an easy 30 minute installation. The included Mishimoto Lifetime Warranty ensures that your Civic will always have the protection it needs! Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
Installs in under 30 minutes
Application-specific bracket mounts the can in a serviceable location
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Powdercoated
Install Difficulty: 2
Installation Difficulty: 2
Material: 6061 Aluminum
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2016-2021 Honda Civic 1.5 Turbo
SellingPoint02: Single can mounts in line with the PCV system to separate oil from air using a 50 micron bronze filter
SellingPoint03: Installs in under 30 minutes
SellingPoint04: Application-specific bracket mounts the can in a serviceable location
SellingPoint05: Billet 6061 aluminum sealed can
SellingPoint06: Internal air diverter turbulates air longer to improve oil separation
SellingPoint07: Defends intercooler intake system and essential components from oil blow-by
SellingPoint08: Helps maintain proper octane levels to reduce potential detonation
SellingPoint09: Mishimoto Lifetime Warranty
SellingPoint10: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1 US D884 760
