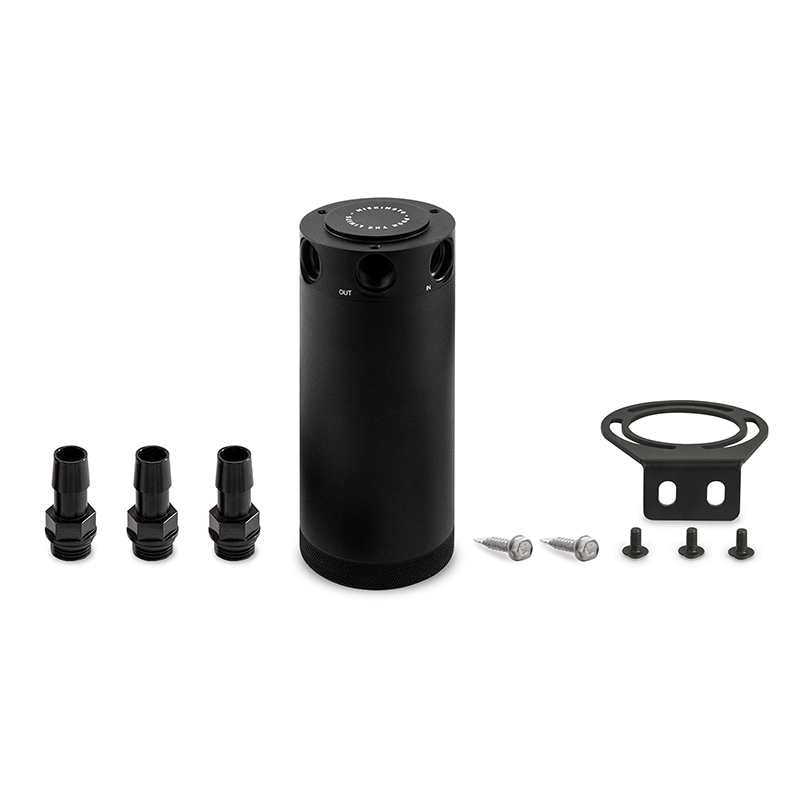

Baffled Oil Catch Can, Black, 3-Port, XL Compact - Mishimoto - MMBCC-CBTHR-XLBK

With years of oil catch can research and development Mishimoto has created the most effective oil catch can on the market. The patent pending Mishimoto XL Baffled Oil Catch Can was designed to separate oil particles from the PCV/CCV air that would normally have just been routed back to your intake. The internal air diverter increases air turbulence and ensures all the oil sinks to the bottom of the can leaving nothing but clean air to pass through the 50-micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. This oil catch can features three ports two inlet and one outlet for easy installation on CCV and PCV systems.The Mishimoto XL Baffled Oil Catch Can features a 7.5 fluid ounce capacity for heavy blow-by collection or extending the servicing interval on any vehicle. The 100-percent billet 6061 aluminum can features M16 x 1.5 threads at the inlet outlet and drain area and includes three black anodized CNC-machined aluminum fittings to make installation effortless. Our catch can is also sealed with Viton(TM) O-Rings to ensure all captured blow-by stays inside of the can. For maximum fitment options the top mounting setup allows the can to be mounted from multiple angles. To make maintenance easy the drain plug can be removed to allow for a return to the oil pan. The can is also 100-percent washable unlike many other cans that require you to replace your filtration system.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what we've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Separates oil particles from PCV/CCV air using 50 micron bronze filter
100-percent billet 6061 aluminum sealed can
Defends intercooler intake system and essential components from oil blow-by
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 2
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 6.2 IN
Maximum Can Capacity: 7.5 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: N/A
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Separates oil particles from PCV/CCV air using 50 micron bronze filter
SellingPoint02: 100-percent billet 6061 aluminum sealed can
SellingPoint03: Defends intercooler intake system and essential components from oil blow-by
SellingPoint04: Helps maintain proper octane levels to reduce potential detonation
SellingPoint05: Features two inlets and one outlet
SellingPoint06: Filter and can are both fully serviceable
SellingPoint07: Safe for pressurized applications
SellingPoint08: Internal air diverter increases air turbulence to improve oil separation
SellingPoint09: Includes 2 aluminum barbed 1/2-in hose fittings
SellingPoint10: Universal mounting bracket for different configurations
SellingPoint11: Patent No. US D910 727
SellingPoint12: Mishimoto Lifetime Warranty
