Baffled Oil Catch Can, PCV Side, fits Subaru BRZ/Toyota GR86 2022+ - Mishimoto - MMBCC-BRZ-22

The Mishimoto baffled oil catch can kit is designed and engineered to eliminate harmful blow-by vapors in your BRZ or GR8's intake. The FA24 in the BRZ/GR86 utilizes a combination of direct and port injection to improve power delivery throughout the RPM range with the added benefit of reduced carbon buildup. While carbon buildup may not be as severe as most direct-injected engines blow-by alone can wreak havoc on your intake tract. The oil and fuel vapors can condense on sensors affecting their readings and the vapor that makes its way into the cylinders can increase the potential for knock and reduce power. The solution is Mishimoto's baffled oil catch can kit for the 2022+ Subaru BRZ and Toyota GR86.----The Mishimoto BRZ/86 catch can kit uses the our 2-port compact baffled oil catch can to separate oil fuel and water from the blow-by gasses. Blow-by passes through a bronze filter air turbulators and internal baffle when they're condensed in the can and stored away from the intake waiting to be drained with your next oil change. This kit includes a 3mm-thick steel mounting bracket that secures the catch can away from engine vibration. Our direct-fit catch can kit includes molded hoses designed to seamlessly connect the catch can to the engine and intake manifold. Two O-ring sealed CNC-machined aluminum fittings connect the hoses to the can for a leak-free installation. Like every Mishimoto oil catch can this 2022+ Subaru BRZ/Toyota GR86 baffled oil catch can kit is backed by our Mishimoto Lifetime Warranty.
Helps prevent knock and power loss caused by blow-by
Includes molded direct-fit hoses for a clean and simple install
3oz catch can captures oil and fuel vapors preventing fouling of sensors
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2022+ Subaru BRZ and Toyota GR86
SellingPoint02: Helps prevent knock and power loss caused by blow-by
SellingPoint03: Includes molded direct-fit hoses for a clean and simple install
SellingPoint04: 3oz catch can captures oil and fuel vapors preventing fouling of sensors
SellingPoint05: Fully serviceable can and internal components
SellingPoint06: Durable 3mm-thick bracket mounts can away from engine vibration
SellingPoint07: CNC-machined fittings with O-ring seals for leak-free operation
SellingPoint08: Internal air diverter increases air turbulence to improve oil separation
SellingPoint09: Patent No. US D966 372 S
SellingPoint10: Mishimoto Lifetime Warranty
SellingPoint11: N/A
SellingPoint12: N/A
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Toyota GR86 H4 2.4L 2022+--Subaru BRZ H4 2.4L 2022+
TechSpec Catch Can Diameter (in): 2.5
TechSpec Chassis Codes: ZN8
TechSpec Drain Plug Thread Size: 3/8-NPT
TechSpec Engine Codes: FA24
TechSpec Height (in): 3.7

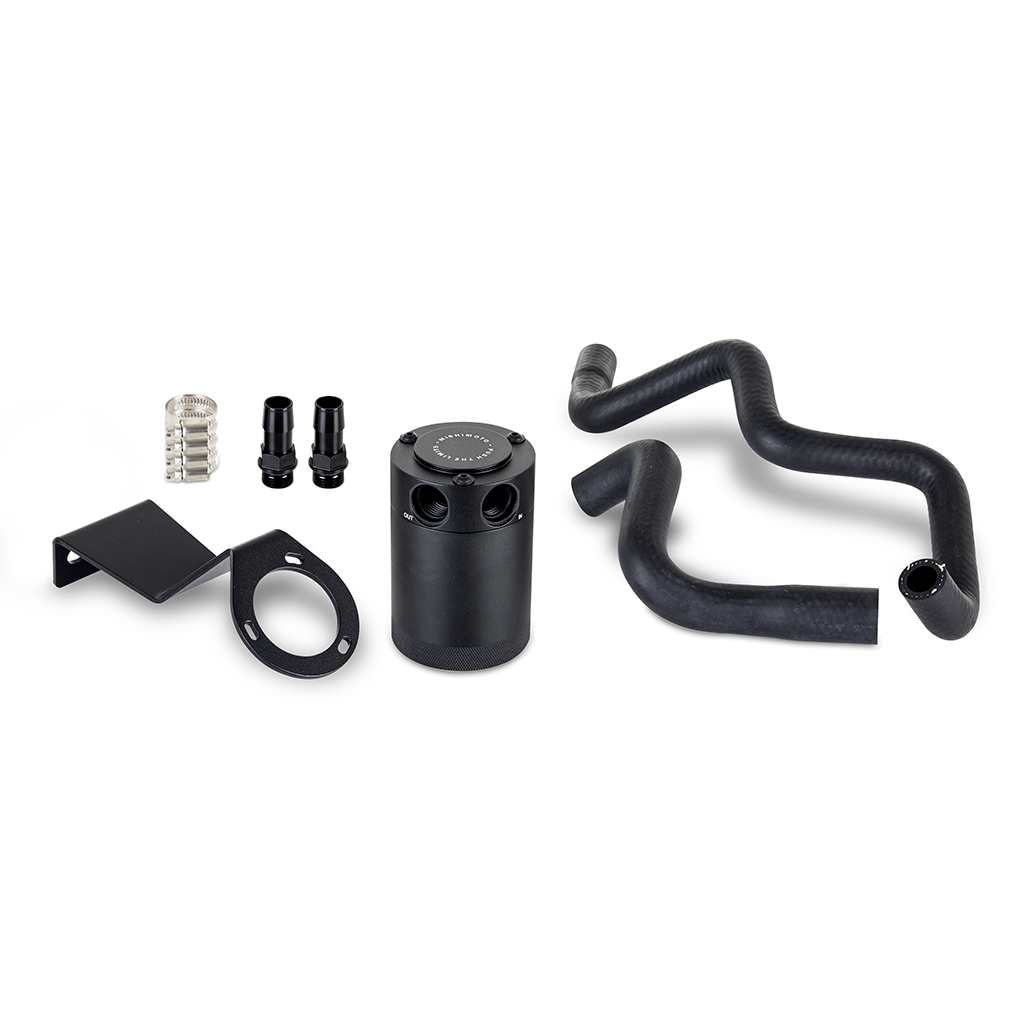

TechSpec Includes: (1) Compact Baffled Oil Catch Can--(2) Direct Fit Hoses--(1) Application-Specific Mounting Bracket--(2) 9/16-in Aluminum Fittings--(2) Worm Gear Clamps--Mounting Hardware--Mishimoto Lifetime Warranty
TechSpec Inlet: M16X1.5
TechSpec Installation Notes: 22 in-lbs (2.5NM) recommended for all worm-gear clamps. These clamps have an operating range of 18-27 in- 2-3NM. Do not exceed the maximum torque rating of 27 in-lbs (3NM)
TechSpec Material: AL-6061
TechSpec Note: After installation Mishimoto recommends checking the contents of the baffled catch cans every 1 000 miles until a baseline is established. Oil blow-by accumulation will vary with ambient temperatures and driving conditions. It is important that the contents of the can do not rise above the internal baffle.----Designed to fit LHD vehicles. Will NOT fit RHD vehicles due to interference with brake lines.
TechSpec Outlet: M16X1.5
