Baffled Oil Catch Can System, fits Ford Bronco 2.7L 2023+ - Mishimoto - MMBCC-BR27-23S

In 2023 Ford's ECM changed crankcase pressure monitoring. We redesigned to meet factory specs. The 2.7L EcoBoost has been powering Fords for nearly a decade and has become one of the most respected truck engines available. The second generation 2.7L features both port and direct injection for efficiency throughout the RPM range. While the added port injection helps clean the intake valves it doesn't protect the rest of your engine from the effects of blow-by. As blow-by flows through your intake it coats components like sensors and your intercooler in a sludge of oil carbon and fuel reducing their ability to function. Blow-by can also reduce the effectiveness of your engine oil. The factory air-oil-separator drains blow-by back into the oil pan which is great for the environment but the fuel and water in blow-by can thin your engine oil and reduce its viscosity.-- Finally any blow-by that does make its way back into the cylinder can reduce the octane of your fuel and for a high-strung turbocharged engine like the 2.7L EcoBoost lower octane means less power. The solution to all those issues is to capture the blow-by and keep it out of the engine with a Mishimoto catch can system. Our direct-fit baffled oil catch can system for the 2023+ Ford Bronco 2.7L EcoBoost intercepts blow-by before it enters the intake and captures it to be recycled at your next oil change. This dual catch can system provides efficient oil/water separation for both the PCV and CCV systems on your Bronco. Our catch cans feature an internal baffle and air turbulators that help condense oil fuel and water vapor from the blow-by as well as a low-restriction composite filter that captures carbon particles. Our catch can system features a sturdy 2.5mm-thick steel bracket and molded hoses which include Ford-specific quick-disconnect fittings for an easy and clean install. This catch can system is backed by our Mishimoto Lifetime Warranty for a lifetime of clean running.

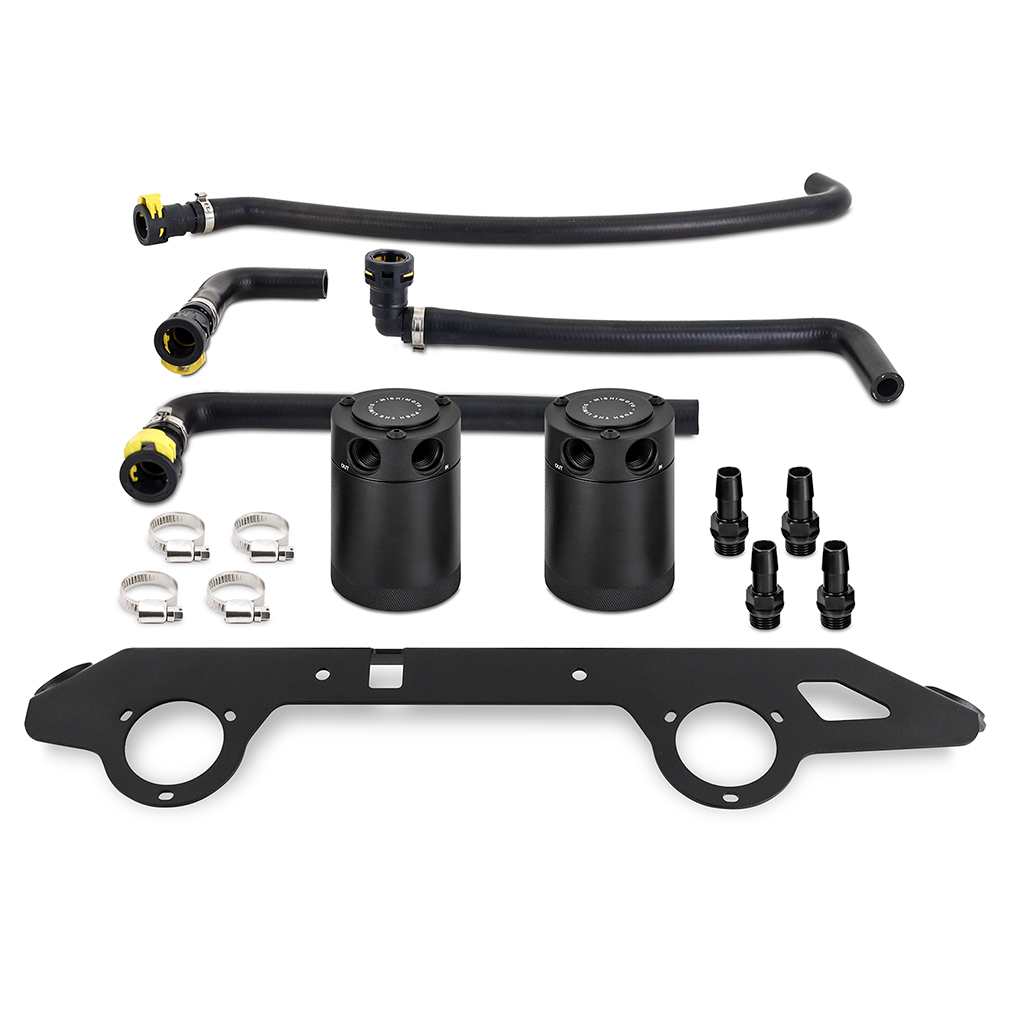

Dual can system captures blow-by from both the PCV and CCV system
Helps prevent fuel dilution and preserves octane rating
Direct-fit bracket mounts the catch cans away from engine vibration
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Install Difficulty: 3
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for 2023+ Ford Bronco with 2.7L EcoBoost
SellingPoint02: Dual can system captures blow-by from both the PCV and CCV system
SellingPoint03: Helps prevent fuel dilution and preserves octane rating
SellingPoint04: Direct-fit bracket mounts the catch cans away from engine vibration
SellingPoint05: Includes molded hoses specifically designed for the 2.7L EcoBoost
SellingPoint06: Pre-installed factory-style quick-disconnect fittings for clean installation
SellingPoint07: Sturdy 2.5mm-thick steel bracket withstands rough roads and off-road abuse
SellingPoint08: Catch cans capture blow-by preventing it from fouling the engine oil
SellingPoint09: Internal components can be easily cleaned and reused for a lifetime of service
SellingPoint10: Billet 6061 aluminum cans sealed with Viton O-rings
SellingPoint11: Patent No. US D884 760
SellingPoint12: Mishimoto Lifetime Warranty
SellingPoint13: N/A
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: Ford Bronco 2.7L V6 2023+
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: U725
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: 2.7L EcoBoost
TechSpec Height (in): N/A
TechSpec Includes: N/A
TechSpec Inlet: N/A
TechSpec Installation Notes: The factory breather hose is attached with tamper-proof fittings that may break upon removal. Our hose are fully compatible and removable should you ever need to remove our system. If you need to replace your OEM line the part number are MB3Z-6758-C
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Baffled Oil Catch Can System fits Ford Bronco 2.7L 2023+
