Cadillac ATS 2.0T Baffled Oil Catch Can System, 2013-2019 - Mishimoto - MMBCC-ATS4-13SBE

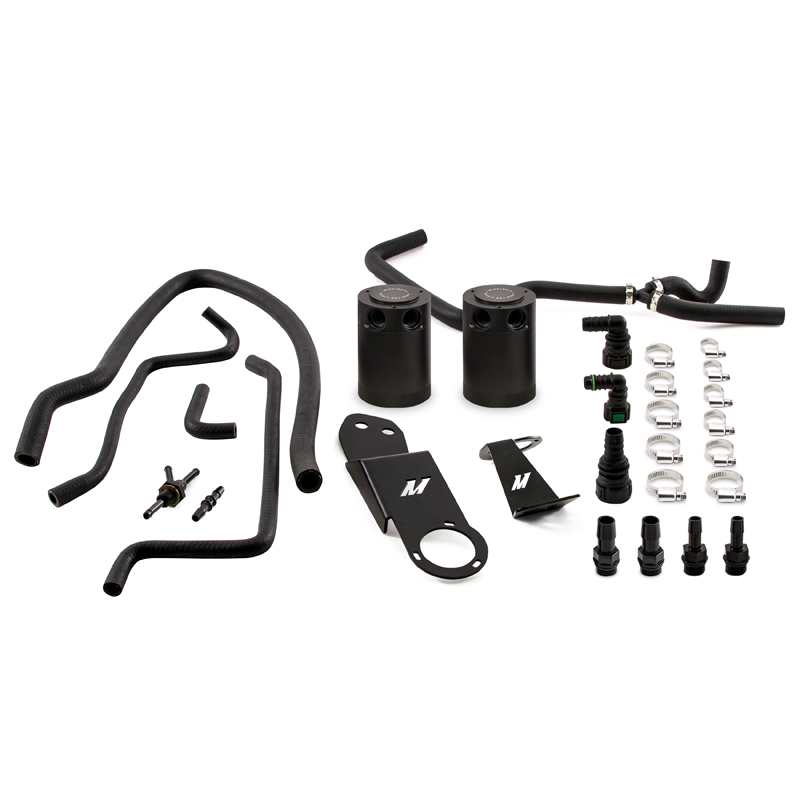

This is the most efficient method for protecting your LTG engine from the dangers of oil-blow by. Why buy one and then the other? Get both the PCV and CCV Baffled Oil Catch Can Kits combined in one. With this complete Mishimoto 2013-2019 Cadillac ATS 2.0T Catch Can System you will have an unbeatable setup that will effectively combat oil blow-by keeping your intake charge pipes and turbocharger compressor free of oil. To help maintain proper octane levels prevent blow-by and reduce potential detonation we use a patent-pending solution engineered to extract blow-by through utilizing a hidden PCV valve inside the valve cover. This complete kit uses two 50-micron bronze filter-equipped catch cans from the PCV and CCV system with application-specific mounts and silicone hoses. Your dual billet 6061 aluminum catch cans will mount securely under your hood as if they came that way from the factory and they both install in under an hour! The Mishimoto 2013-2019 Cadillac 2.0T Catch Can System includes all mounting and installation hardware and ships with the Mishimoto Lifetime Warranty. Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you've seen what We've seen in the bottom of our catch cans you won't want that draining back into your oil either.
Installs in under 1 hour
Includes our Patent Pending PCV adapter to allow for proper connection into engine's PCV system
Cans mount in line with the PCV and CCV systems to separate oil from air using 50-micron bronze filters
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Install Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2013-2019 Cadillac ATS 2.0T
SellingPoint02: Installs in under 1 hour
SellingPoint03: Includes our Patent Pending PCV adapter to allow for proper connection into engine's PCV system
SellingPoint04: Cans mount in line with the PCV and CCV systems to separate oil from air using 50-micron bronze filters
SellingPoint05: Helps maintain proper octane levels to reduce potential detonation
SellingPoint06: Reduces carbon build-up on the intake valves
SellingPoint07: Internal air diverter increases air turbulence to improve oil separation
SellingPoint08: Application-specific brackets mount the cans in serviceable locations
SellingPoint09: Billet 6061 aluminum sealed cans
SellingPoint10: Filters and cans are fully serviceable
SellingPoint11: Catch cans have a 2 oz. capacity for longer servicing intervals
SellingPoint12: Hoses include OEM style quick-disconnect fittings for easy installation and special tools to remove original fittings without damage
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: Patent No. US D884 760
TechSpec Applications: N/A
TechSpec Catch Can Diameter (in): N/A
TechSpec Chassis Codes: N/A
TechSpec Drain Plug Thread Size: N/A
TechSpec Engine Codes: N/A
TechSpec Height (in): N/A
TechSpec Includes: N/A
TechSpec Inlet: N/A
TechSpec Installation Notes: N/A
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet: N/A
Title: Mishimoto Cadillac ATS 2.0T Baffled Oil Catch Can System 2013-2019
