Baffled Oil Catch Can System, fits Nissan 370Z 2009-2020 - Mishimoto - MMBCC-370Z-09PBE

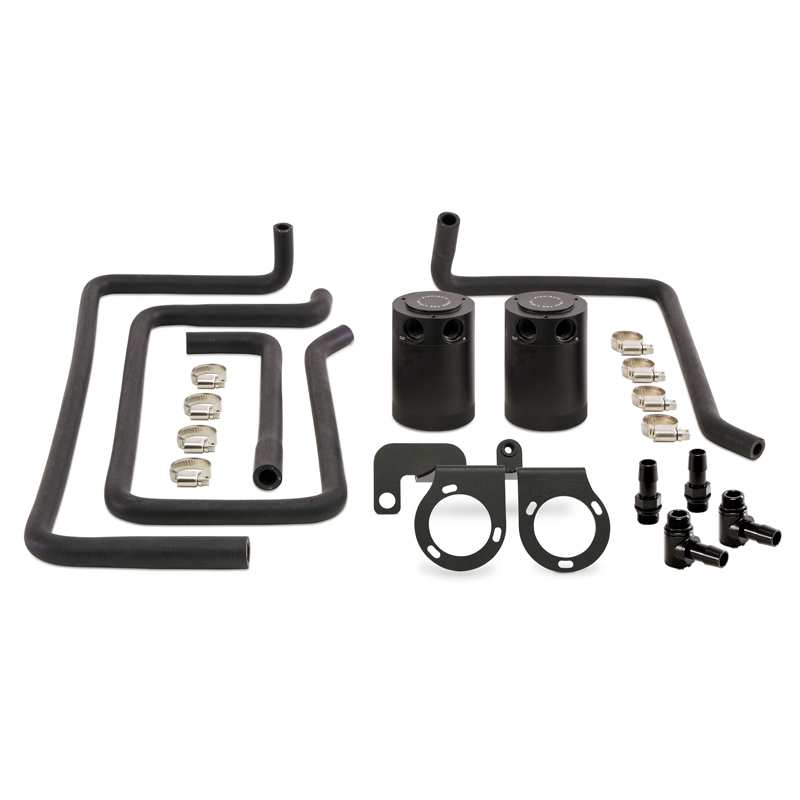

Give your VQ37 powered Nissan the protection it deserves with the Mishimoto 2009-2020 Nissan 370Z Baffled Oil Catch Can kit. Our complete dual-can setup combats the one issue that effects every modern day engine ? blow-by. As a side effect of how your engine operates and to keep the environmentalists satisfied engine oil droplets make their way back through the intake tract and can build carbon on the valves ultimately robbing your high-output V6 of its performance. With our 370Z Baffled oil Catch Can Kit installed you will have an unbeatable setup that will effectively intercept the contaminated crankcase gasses and prevent them from entering the intake.Our complete kit utilizes a pair of our tried and true 6061 aluminum compact catch cans that mount in line with the VQ37VHR?s dual PCV system using an application specific mounting bracket. It's more of what?s on the inside that counts for these catch cans however. Our compact oil catch cans come equipped with a highly engineered baffle designed to condense oil droplets and fuel vapors to be collected in the bottom of the can. We've also incorporated internal air diverters to ensure a smooth and consistent flow of your PCV pressure. As an added line of defense each one of our catch cans has a 50-micron bronze filter installed to trap any potential rogue oil droplets from escaping into the return line. Finally every kit comes with a full set of pre-molded flat-black hoses that look right at home under the hood of your 370Z and also ships with the Mishimoto Lifetime Warranty.Our catch cans are different from most air-oil-separator (AOS) systems on a few levels. First our catch cans are not heated. This means that all of the blow-by is able to condense in the can including low-octane oil vapors and contaminated fuel vapors. Most AOS systems also drain the blow-by back into the oil pan while our catch cans trap the blow-by and keep it out of the engine permanently. If you?ve seen what We've seen
Mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
Installs in under 1 hour
Application-specific bracket mounts the cans in an easily maintained location inside the engine bay
Can Material: 6061-T6 Billet Aluminum
Can Type: Twist Off
Can Outside Diameter: 2.5 IN
Inlet Port Quantity per Can: 1
Outlet Port Quantity per Can: 1
Can Finish: Anodized
Hose Included: Yes
Color: Black
Outlet Port Inside Diameter: 0.6 IN
Inlet Port Inside Diameter: 0.6 IN
Drain Plug Included: Yes
Finish: Anodized
Height: 3.7 IN
Maximum Can Capacity: 3 FO
Interior Baffle: Yes
Mounting Bracket Included: Yes
Color: Black
Finish: Powdercoated
Install Difficulty: 2
Installation Difficulty: 2
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2009-2020 Nissan 370Z
SellingPoint02: Mounts in line with the PCV system to separate oil from air using a 50-micron bronze filter
SellingPoint03: Installs in under 1 hour
SellingPoint04: Application-specific bracket mounts the cans in an easily maintained location inside the engine bay
SellingPoint05: Includes pre-molded stock-style hoses for simplified install
SellingPoint06: Defends intake system and essential engine components from oil blow-by
SellingPoint07: Billet 6061 aluminum cans sealed with Viton O-rings
SellingPoint08: CNC-machined aluminum barbed fittings ensure a sturdy connection between lines and can
SellingPoint09: Helps reduce carbon build-up on intake valves
SellingPoint10: Catch cans have a 3oz. capacity for longer servicing intervals
SellingPoint11: Patent Nos. US ZL 202120175368.7 US ZL 201830621732.1
