Heavy-Duty Protection Bundle, fits Ford 6.7L Powerstroke 2011-2016 - Mishimoto - MMB-F2D-004

Tired of constantly filling your 2011-2016 Ford 6.7L Powerstroke radiator with coolant because you have a leak? Or maybe you're tired of seeing your charge air temps creep up when you tow. Either way this Mishimoto Heavy-Duty Bundle for the 2011-2016 Ford 6.7L Powerstroke has you covered. This kit includes everything you need to fortify your 6.7L and ensure it runs cool in any situation. The first two components in this bundle are designed to keep your engine running cool and withstand the rigors of a powerful work truck. The Mishimoto all-aluminum 6.7L primary and secondary radiators are constructed from high-quality aircraft-grade aluminum with 100-percent brazed aluminum cores. The cores are then TIG-welded to aluminum end tanks for superior durability and longevity. Our primary radiator boasts a 37-percent increase in coolant capacity and 20-percent greater surface area than the stock radiator to keep your engine running cool. To make sure the air going into your engine stays cool our secondary radiator utilizes a 19-percent thicker core to reduce charge air temperatures by up to 6 F. Our secondary radiator also includes both thermostat housings for a clean and simple installation. Couple these radiators with our upper support bar and silicone hoses and you have a recipe for a cool leak-free 6.7L. Engineered right here in Delaware our upper support bar is constructed of heavy-duty steel and firmly secures to your truck with cast-steel anchor points. All that steel minimizes front end flex improving the truck's rigidity and saving your radiator. Our silicone radiator hoses constructed from high-grade silicone with heat-resistant embedded fibers for superior heat and pressure tolerance. These hoses also include pre-installed quick-disconnect fittings to make installation as easy as the stock hoses. To round out this heavy-duty 6.7L bundle We've added a bit of performance to your cooling with our 6.7L air-to-water performance intercooler kit.

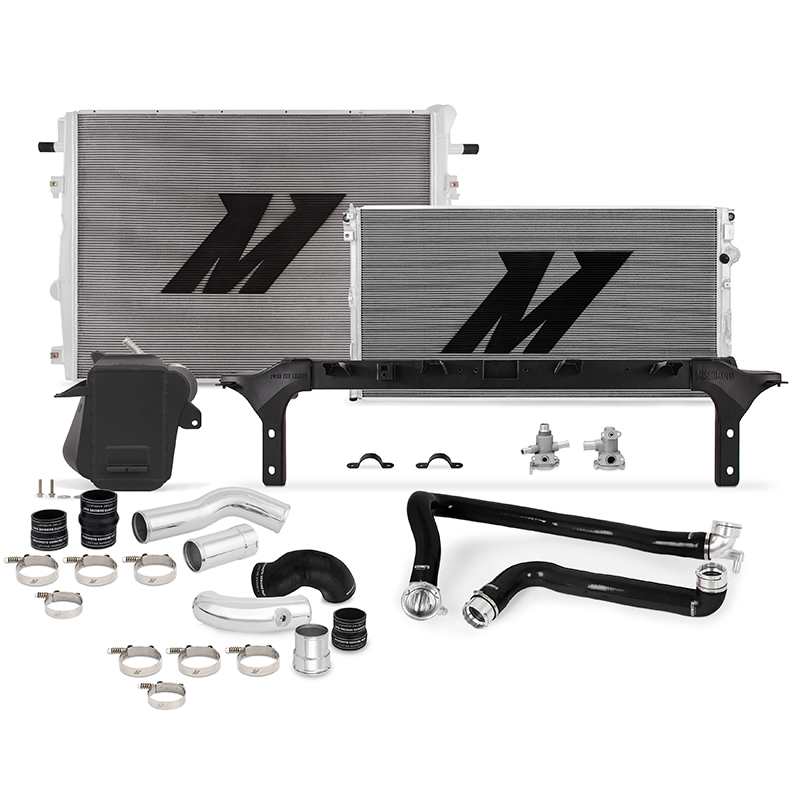

Includes 6.7L Powerstroke primary radiator secondary radiator intercooler intercooler pipe and boot kit upper support bar and silicone coolant hoses
Primary radiator features extruded tubes with internal struts for increased strength and pressure tolerance
Primary radiator increases coolant capacity by 37-percent and boasts a 10-percent thicker core than the stock radiator
Install Difficulty: 4
Prop 65 - Short Label: WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Y/N: Y
SellingPoint01: Direct fit for the 2011-2016 Ford 6.7L Powerstroke
SellingPoint02: Includes 6.7L Powerstroke primary radiator secondary radiator intercooler intercooler pipe and boot kit upper support bar and silicone coolant hoses
SellingPoint03: Primary radiator features extruded tubes with internal struts for increased strength and pressure tolerance
SellingPoint04: Primary radiator increases coolant capacity by 37-percent and boasts a 10-percent thicker core than the stock radiator
SellingPoint05: Secondary radiator increases cooling surface area by 27-percent and reduces charge air cooler temperatures by up to 6F
SellingPoint06: Intercooler and pipes increase flow by 22-percent over stock
SellingPoint07: Intercooler produces a dyno-proven 40 lb-ft torque gain without other modifications
SellingPoint08: Upper support bar improves front-end rigidity reducing stress on cooling components
SellingPoint09: Upper support bar features cast steel anchor points and tube steel center for improved strength
SellingPoint10: Coolant hoses are constructed from high-grade silicone with heat-resistant embedded fibers for superior heat and pressure tolerance
SellingPoint11: Hoses come with pre-installed CNC quick-disconnect fittings for fast and easy installation
SellingPoint12: Patent No. US D966 950 S
SellingPoint13: Mishimoto Lifetime Warranty
SellingPoint14: N/A
SellingPoint15: N/A
TechSpec Applications: 2011-2016 Ford F-250 w/ 6.7L Powerstroke--2011-2016 Ford F-350 w/ 6.7L Powerstroke--2011-2016 Ford F-450 w/ 6.7L Powerstroke--2011-2016 Ford F-550 w/ 6.7L Powerstroke
TechSpec Chassis Codes: N/A
TechSpec Core Height (in): N/A
TechSpec Core Length (in): N/A
TechSpec Core Thickness (in): N/A
TechSpec DPI: N/A
TechSpec Drain Plug Thread Size: M12 x 1.5
TechSpec Engine Codes: N/A
TechSpec Fluid Capacity (gal): N/A
TechSpec Includes: Mishimoto 6.7L Primary Radiator-- Mishimoto 6.7L Secondary Radiator-- Mishimoto Air-to-Water Intercooler-- Mandrel-Bent Cold-Side Pipe-- Mandrel-Bent Hot-Side Pipe-- Upper Coolant Hose with Pre-installed CNC Couplers-- Lower Coolant Hose with Pre-installed CNC Couplers--(2) CNC-Machined Aluminum Quick-Disconnect Couplers--(4) Silicone Boots w/ Duracore™ Technology--(8) Constant Tension T-Bolt Clamps-- Mishimoto Support Bar--(2) Upper Support Bar Mounting Brackets--(2) Cast Thermostat Housings--(2) Magnetic Drain Plugs w/ Dowty Oil Seal--(4) Rubber Bushings and Metal Collars--(3) Hardware Packs--(4) M6 x 1.0 x 16mm Bolts--(12) Black Plastic Tree Clips--(2) Push Mount Cable Ties--Mishimoto Lifetime Warranty
TechSpec Inlet (in): N/A
TechSpec Material: N/A
TechSpec Note: N/A
TechSpec Outlet (in): N/A
TechSpec Overall Height (in): N/A
TechSpec Overall Length (in): N/A
TechSpec Overall Width (ins): N/A
TechSpec Rows: N/A
