In Stock
MahleSKU: BSD-MCI-224-3503WR.010Engine Piston Set Of 8 - MAHLE - 224-3503WR.010
$128.43
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description

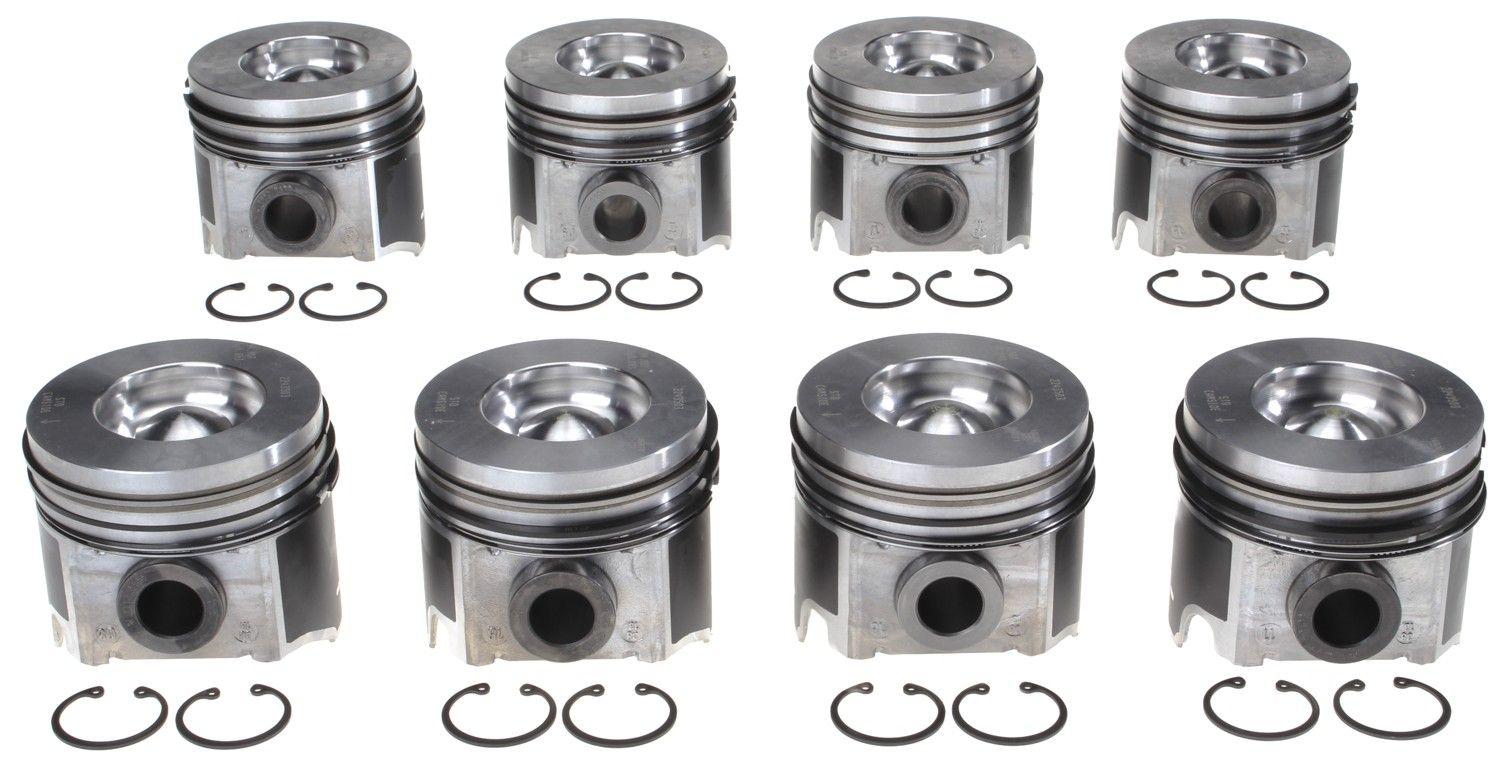

MAHLE 224-3503WR.010 Engine Piston Set – OE Grade Replacement
MAHLE(R) pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.
Engineered to meet or exceed OEM specifications
Reliable MAHLE performance and durability
Application-specific design for fit and function
GTIN/UPC: 27067929792
1 year limited warranty
Qty included in Set 8 Quantity per Application 8 Oversized Yes Top Compression Ring Thickness (mm) 2.3 Second Compression Ring Thickness (mm) 2.0 Oil Ring Thickness (mm) 3.44 Piston Pin Outside Diameter (mm) 34.01 Piston Head Type Bowl Piston Material Aluminium Coated Skirt Yes Compression Height (mm) 52.29
MAHLE(R) pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.
Engineered to meet or exceed OEM specifications
Reliable MAHLE performance and durability
Application-specific design for fit and function
GTIN/UPC: 27067929792
1 year limited warranty
Qty included in Set 8 Quantity per Application 8 Oversized Yes Top Compression Ring Thickness (mm) 2.3 Second Compression Ring Thickness (mm) 2.0 Oil Ring Thickness (mm) 3.44 Piston Pin Outside Diameter (mm) 34.01 Piston Head Type Bowl Piston Material Aluminium Coated Skirt Yes Compression Height (mm) 52.29
