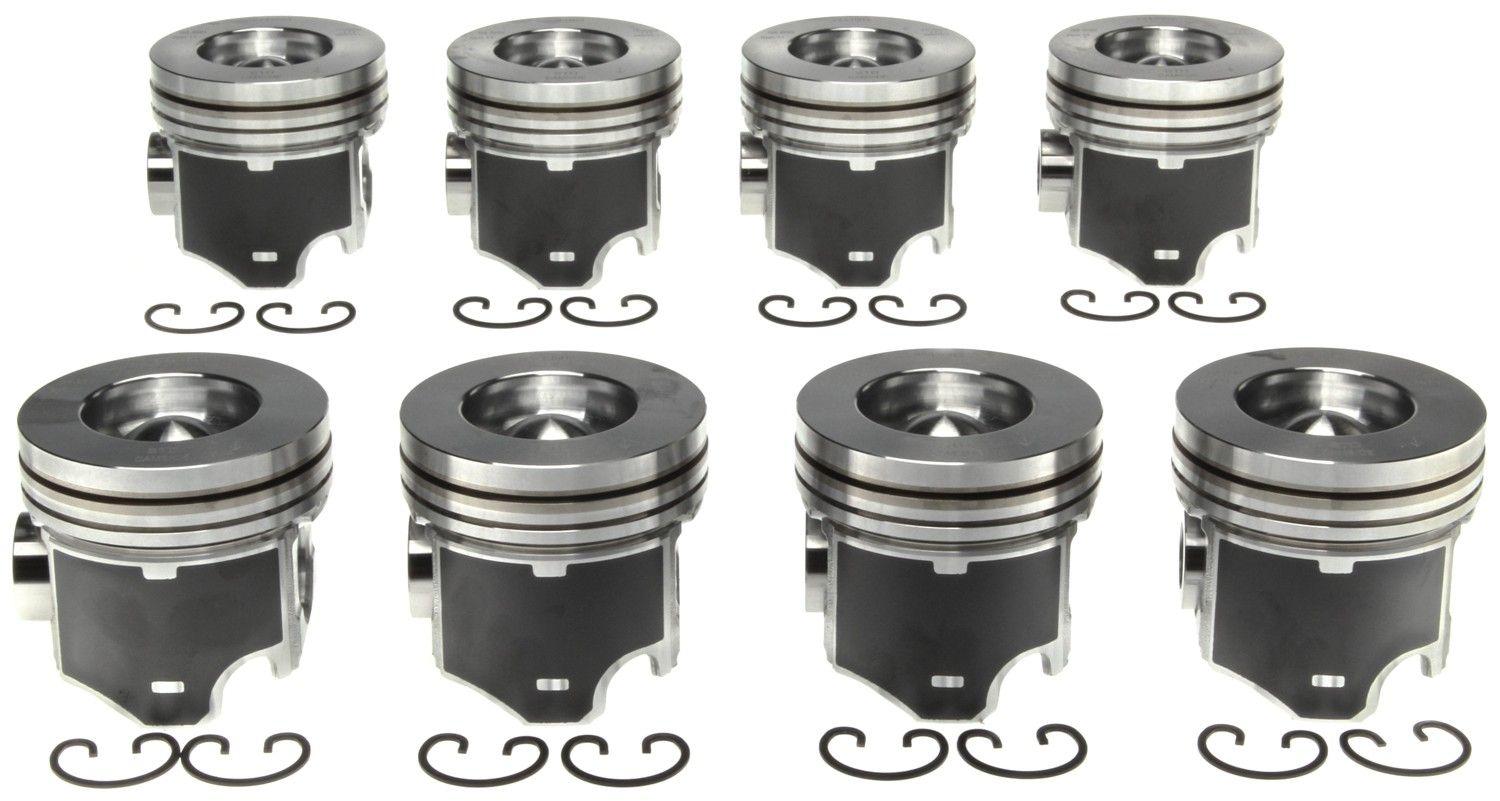

Engine Piston Set Of 8 - Oversize Standard - MAHLE - 224-3503

MAHLE 224-3503 Engine Piston Set – OE Grade Replacement

MAHLE(R) pistons are OE quality and have the same great OE features such as compensated ring grooves to assure proper ring loading and oil control, as well as expansion controlled designs for small fitting clearances to reduce engine noise, wear, emissions, and improve oil control. MAHLE offers pistons ready for installation with mounted piston rings, with pin and clips included for the convenience of the engine builder. MAHLE is one of the largest OE piston manufacturers in the world.

Engineered to meet or exceed OEM specifications
Reliable MAHLE performance and durability
Application-specific design for fit and function
GTIN/UPC: 27067713858
1 year limited warranty


Qty included in Set 8 Quantity per Application 8 Oversized No Top Compression Ring Thickness (mm) 2.3 Second Compression Ring Thickness (mm) 2.0 Oil Ring Thickness (mm) 3.44 Piston Pin Outside Diameter (mm) 34.01 Piston Head Type Bowl Piston Material Aluminium Bore Diameter (in) 3.74 Bore Diameter (mm) 95.0 Coated Skirt Yes Compression Distance (in) 2.059 Compression Distance (mm) 52.29 Compression Height (in) Standard Piston Length (mm) 85.82 Piston Recess Depth (in) 0.665 Piston Skirt Clearance (in) 0.0036 Piston oversize Standard Piston Recess Diameter (in) 2.0905 Piston Note Keystone top ring. Coated skirts. Piston Pin Hole Location Center Piston Pin Retention Type Floating Piston Recess Volume 31.89 Compression Height (mm) 52.29 With Piston Rings No Piston Item Grade OE Replacement Piston Casting Number 95L102A1
