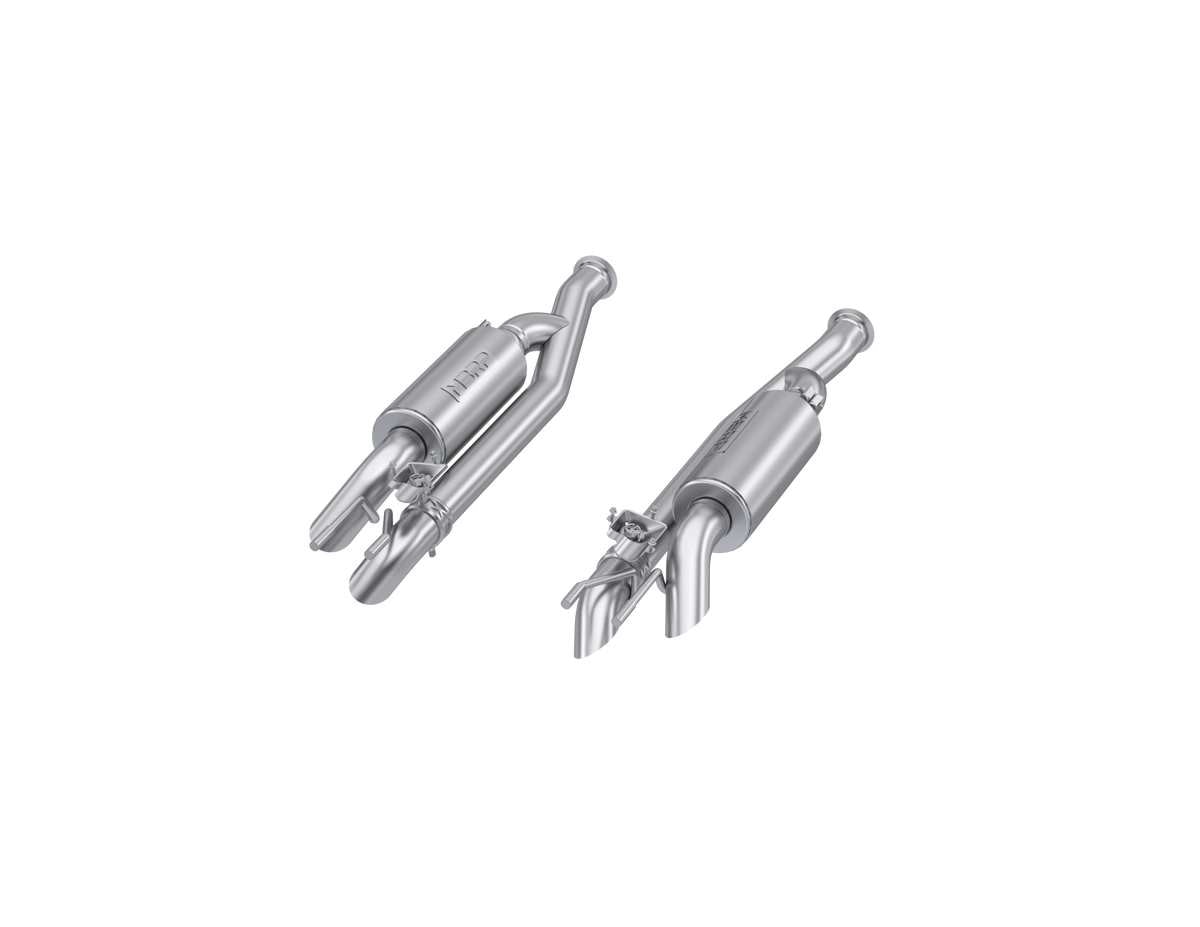

2.5in. Cat-Back; Dual Split Quad Rear; Active; T304 - MBRP Exhaust - S5601304

Make your G-Wagon sound as bold as it looks. The Mercedes-Benz G63 is the perfect fusion of luxury and raw power-and with MBRP's S5601304 Armor Pro Series Pre-Axle Cat-Back Exhaust you can amplify the beast within. Designed to deliver uncompromising durability aggressive sound and a head-turning appearance this system is built for those who demand more from their ride.and#x0D; and#x0D; Crafted from premium T304 stainless steel this system is engineered to withstand the harshest conditions. Whether you're carving through backcountry trails or cruising city streets the high-clearance quad turndown tail design keeps your exhaust tucked up and protected-ready for wherever the G-Wagon dares to go.and#x0D; Sound That Commands Attention - The G63's stock exhaust doesn't do justice to its twin-turbo V8. That's why we preserved the active exhaust functionality giving you full control over your sound. From a refined moderate tone to a deep aggressive growl-this system lets you choose when to whisper and when to roar.and#x0D; and#x0D; MBRP's mandrel-bent tubing ensures smooth unrestricted flow- maximizing exhaust flow. That means better throttle response and enhanced engine longevity. It's performance you'll feel every time you hit the throttle.and#x0D; and#x0D; At MBRP we believe your exhaust should look as good as it sounds. The dual split side quad outlet turndown tailpipes not only elevate the G-Wagon's rugged aesthetic-they're also designed for high-clearance practicality. It's a bold statement that doesn't compromise capability.
Durable T304 Stainless Steel Construction. Smooth Mandrel Bent Tubing. Moderate to Race Active Exhaust. High Clearance Turndown Tail. Bolt-on Installation.
Built to Perform MBRP's performance exhaust systems are built to perform. Designed to maximize exhaust flow and minimize exhaust temperatures your truck will use less gas last longer and perform better. Every system we sell has been built to the most exacting standards in the industry.
Dyno Proven
Your MBRP performance gas exhaust system has undergone countless hours on our in-house Mustang 1100 AWD-SE Chassis Dynamometer hundreds of miles on road and track and numerous tweaks and modifications to get the most out of your truck. From the vehicle specific muffler design to the fully mandrel bent tubing to minimal bend degree angles your MBRP performance system gets exhaust out fast. An MBRP performance exhaust system is the starting point to getting the most from cold air intakes programmers modules and downloaders.
Exhaust Tip Quantity: 4
Exhaust Tip Diameter: 2.5 IN
Exhaust Tip Finish: Polished
Exhaust Tip Material: Stainless Steel
Tip Shape: Turndown
Clamps Included: Yes
Finish: Polished
Gasket Or Seal Included: No
Pipe Material: 304 Stainless Steel
Clamping Type: Round Band
Hangers Included: Yes
Muffler Flanged Inlet: No
Muffler Flanged Outlet: No
Tail Pipe Outlet Outside Diameter: 2.5 IN
Tail Pipe Tapered Outlet: No
Muffler Body Material: T304 Stainless Steel
Muffler Body Shape: Round
Muffler Quantity: 1
Muffler Outlet Quantity: 2
Tail Pipe Quantity: 4
Spring Bolt Kit Included: No
Inlet Type: Bolt-on
Exit Style: Quad Split Rear Turndown
Main Piping Diameter: 2.5 IN
Exhaust Tip Connection: Bolt-on
Exhaust Tip Wall: Single
Exhaust Tip Cut: Angled Turndown
Exhaust Tip Edge: Straight
Exhaust Tip Resonated: No
Exhaust Tip Intercooled: No
Muffler Finish: Polished
Muffler Inlet Connection: Slip-Fit
Muffler Outlet Connection: Slip-Fit
Bolt-On Yes/No: Yes
Cutting Required: No
Exit Style: Quad Rear Exit
Fuel Type: Gasoline
Major: Performance Gas
Material: T-304 Stainless Steel
MBRP Series: Armor Pro
Minor: Quad
Muffler Yes/No: Yes
Profile: Active Profile
Prop 65 (C R or CR): CR
Prop 65 - Short Label: Prop65warning.pdf
Prop 65 Yes/No: YES
Title: MBRP Exhaust 2.5in. Cat-Back Dual Split Quad Rear Active T304
Tubing Diameter: 2.5 Inch
Type: Cat-Back
UPS Able: Yes
Vehicle Segment: Truck

Detailed Fitment Results
Year Make Model Engine Size Sub Model 2019 Mercedes-Benz G63 AMG 4.0 Base / Edition 1 2020 Mercedes-Benz G63 AMG 4.0 4Matic / Base 2021 Mercedes-Benz G63 AMG 4.0 Base / Biturbo+ 2022 Mercedes-Benz G63 AMG 4.0 Base / Biturbo 2023 Mercedes-Benz G63 AMG 4.0 Base / Edition 55 / Professional Edition 2024 Mercedes-Benz G63 AMG 4.0 Base 2025 Mercedes-Benz G63 AMG 4.0 Base
