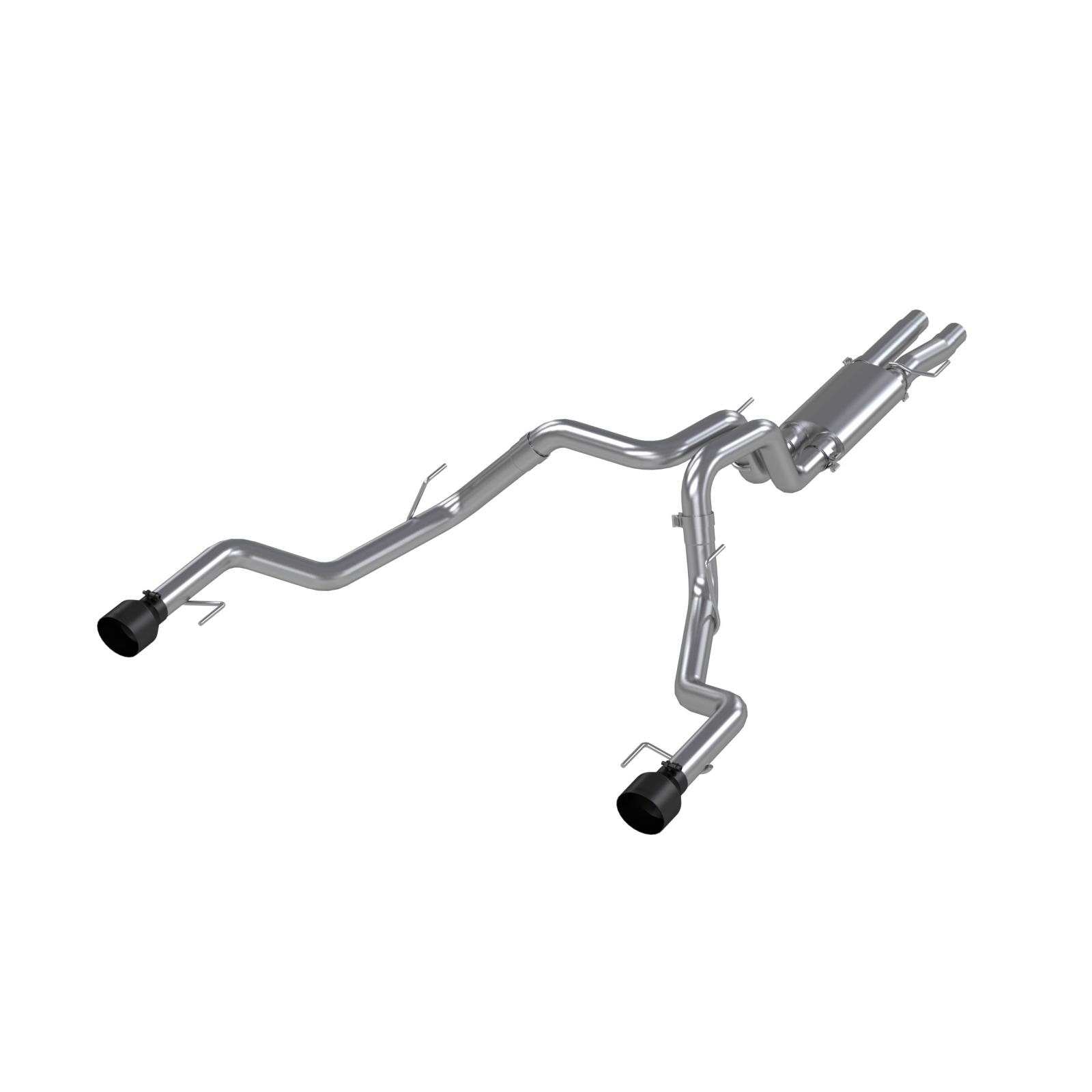

3in. Resonator Back; Dual Rear; T409 - MBRP Exhaust - S5264409

RELIABILITY BACKED FOR A LIFETIME - ARMOR PLUS Series exhaust systems are crafted from corrosion-resistant T409 Stainless Steel - a value-oriented material designed to protect from penetrating rust and will stand up to almost anything you can throw at it.and#x0D; T409 Stainless Steel tubing is easy to clean. If you’re looking for a performance exhaust system with a Lifetime Warranty this is probably the one for you. If you don’t find yourself faced with lots of precipitation and salt this is all you’re ever going to need. All of the tubing is mandrel bent for maximum exhaust flow. Mandrel bending ensures no rippling in the bends. The end result is that it gives you more fresh air inside your engine’s cylinders allowing it to produce more power and improve vehicle performance and longevity. It's important to note that T409 Stainless Steel is resistant to penetrating rust but winter conditions heavy salt air and road treatments might accelerate the corrosion process these conditions are not covered by MBRP's manufacturer warranty unless the part or system fails completely. When it comes to a performance exhaust system choose the MBRP ARMOR PLUS Series for a reliable option backed for a lifetime. MBRP Stand out from the crowd with a performance exhaust system that sounds great.
Rugged T409 Stainless Steel Construction. Bolt-on Installation. MBRP Signature Styling and Sound.
Built to Perform MBRP's performance exhaust systems are built to perform. Designed to maximize exhaust flow and minimize exhaust temperatures your truck will use less gas last longer and perform better. Every system we sell has been built to the most exacting standards in the industry.
Dyno Proven
Your MBRP performance gas exhaust system has undergone countless hours on our in-house Mustang 1100 AWD-SE Chassis Dynamometer hundreds of miles on road and track and numerous tweaks and modifications to get the most out of your truck. From the vehicle specific muffler design to the fully mandrel bent tubing to minimal bend degree angles your MBRP performance system gets exhaust out fast. An MBRP performance exhaust system is the starting point to getting the most from cold air intakes programmers modules and downloaders.
Exhaust Tip Length: 6.5 IN
Exhaust Tip Quantity: 2
Exhaust Tip Diameter: 5 IN
Exhaust Tip Finish: Polished
Exhaust Tip Material: Stainless Steel
Tip Shape: Round
Clamps Included: Yes
Finish: Polished
Gasket Or Seal Included: No
Pipe Material: 409 Stainless Steel
Clamping Type: Round Band
Hangers Included: Yes
Muffler Flanged Inlet: No
Tail Pipe Outlet Outside Diameter: 3 IN
Tail Pipe Tapered Outlet: No
Muffler Body Material: T409 Stainless Steel
Muffler Body Shape: Oval
Muffler Quantity: 1
Muffler Outlet Quantity: 2
Tail Pipe Quantity: 2
Inlet Type: Bolt-on
Exit Style: Dual Split Rear
Main Piping Diameter: 3 IN
Exhaust Tip Connection: Bolt-on
Exhaust Tip Wall: Single
Exhaust Tip Cut: Angled
Exhaust Tip Edge: Straight
Exhaust Tip Resonated: No
Exhaust Tip Intercooled: No
Muffler Finish: Polished
Bolt-On Yes/No: Yes
Cutting Required: No
Exit Style: Dual Rear Exit
Flow Increase (%): 25
Fuel Type: Gasoline
Horsepower Increase (HP): 9
Major: Performance Gas
Material: T-409 Stainless Steel
MBRP Series: Armor Plus
Minor: Dual
Muffler Yes/No: Yes
Profile: Street Profile
Prop 65 (C R or CR): CR
Prop 65 - Short Label: Prop65warning.pdf
Prop 65 Yes/No: YES
Title: MBRP Exhaust 3in. Resonator Back Dual Rear T409
Torque Increase (FTLB): 8
Tubing Diameter: 3 Inch
Type: Resonator-Back
UPS Able: Yes
Vehicle Segment: Truck

Detailed Fitment Results
Year Make Model Engine Size Sub Model Body Type 2017 Ford F-150 3.5 Raptor Extended Cab Pickup / Crew Cab Pickup 2018 Ford F-150 3.5 Raptor Extended Cab Pickup / Crew Cab Pickup 2019 Ford F-150 3.5 Raptor / Limited Extended Cab Pickup / Crew Cab Pickup 2020 Ford F-150 3.5 Raptor Extended Cab Pickup / Crew Cab Pickup
