ULTIMATE FRONT END PACKAGE FOR 1988-1992 GM C/K SERIES TRUCKS/SUVS - Kryptonite - ULTIMATE88C

Important Fitment Notes:


If you're installing the Kryptonite SS Series Centerlink on a leveled or lifted truck, you may need longer sway bar end links to provide clearance for our oversized tie rod bodies. We recommend using the KRFDEL02 end links.

Will not work on Control Arm Drop / Drop Set Steering Lift kits: Older style lifts on these trucks will relocate the upper control arms and use drop set steering which lowers the center link, rather than a taller spindle. These lifts were phased out nearly industry wide around 2010.


Features:


Complete Death Grip Steering System - Replaces every moving steering component to eliminate play and restore precise steering control

Forged Idler Arm and Support Assembly - Significantly stronger than OEM to reduce flex and improve steering stability under load


Forged Uni-Spline Pitman Arm - Improved strength and stability from your steering box to the centerlink


Zinc-plated 1144 High-Carbon Steel Centerlink - High strength constriction resists bending while the zinc plating provides corrosion protection


Heavy Duty Tie Rods - The Death Grip tie rods are built to handle increased loads from lifted suspension, towing and oversized tires


Retains Factory Turning Radius - Maintains street friendly drivability with no loss of steering angle


Engineered for High-Horsepower and 4x4 Use - Designed to withstand aggressive driving, offroad abuse, and heavy-duty applications

Lifetime Warranty


Description:

The Kryptonite Ultimate Front End Kit is a complete steering system upgrade designed for 1988-1992 GM C and K Series trucks and SUVs. This kit replaces every major moving component in the factory steering system, eliminating excessive play while restoring precise, predictable steering control. It is engineered for trucks that see increased loads from towing, larger tires, lifted suspensions, or aggressive 4x4 use, without sacrificing smooth on-road drivability.

Each component in this kit is part of Kryptonite’s Death Grip Series, built to withstand significantly higher stresses than OEM steering parts. Forged components, heavy-duty tie rod assemblies, and a high-strength 1144 high-carbon steel center link work together to reduce flex, improve steering response, and maintain proper geometry under load. Corrosion-resistant coatings and greasable rod ends allow for regular service, extending component life and ensuring consistent performance over time.

Designed as a direct bolt-on replacement, the Ultimate Front End Kit installs with no modifications and retains the factory turning radius. It is compatible with stock, leveled, and lifted trucks using modern lift designs that retain factory-style steering geometry. Backed by Kryptonite’s industry-leading lifetime warranty, this kit delivers long-term durability and confidence for both daily driving and demanding off-road conditions.

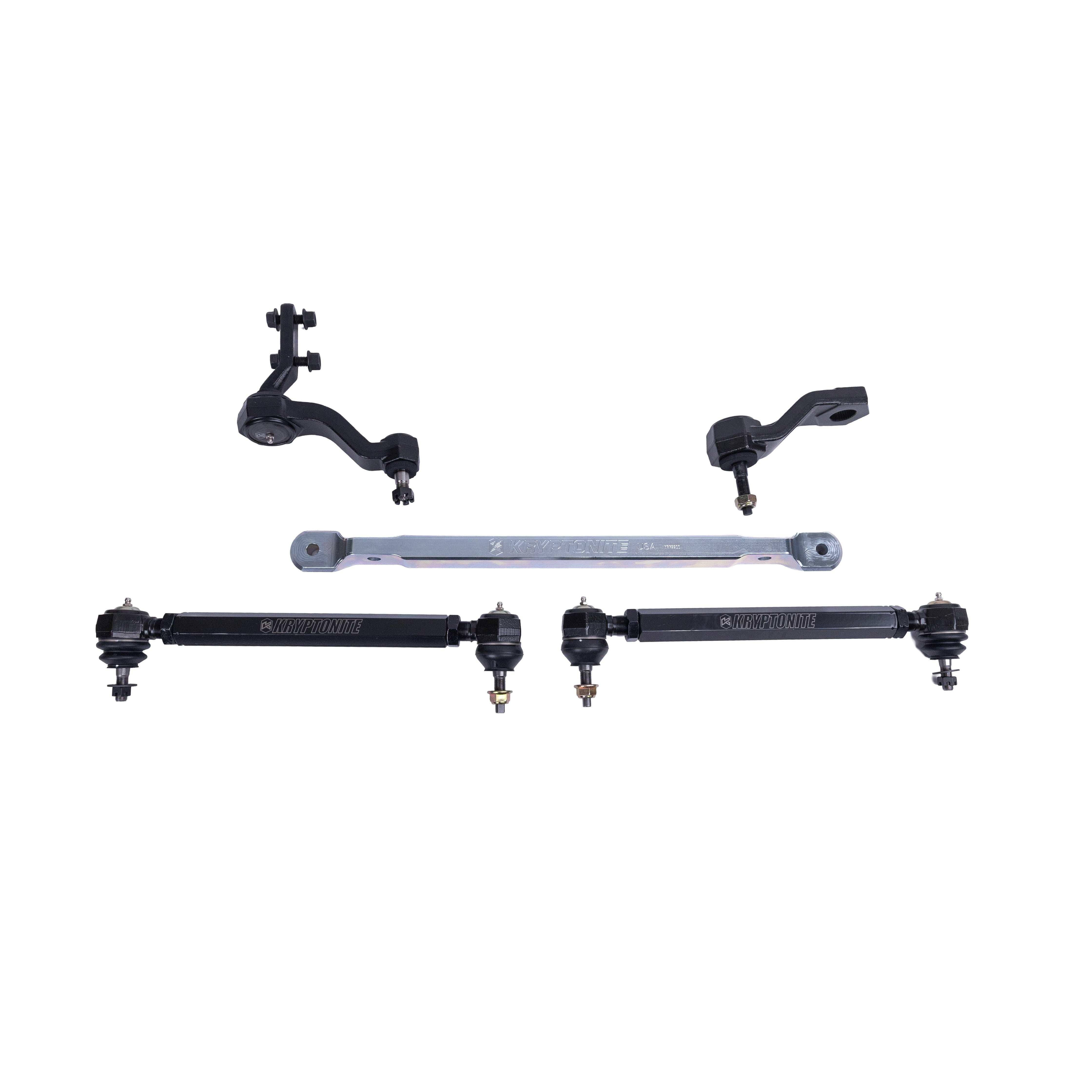

Includes:


Ultimate Kit for K Series Trucks - ULTIMATE88K

Death Grip Tie Rods - KRTR88


Death Grip Series Center Link - KRP1088


Death Grip Idler Arm - KRP0200


Death Grip Pitman Arm - KR6654







Ultimate Kit for C Series Trucks - ULTIMATE88C

Death Grip Tie Rods - KRTR88


Death Grip Series Center Link - KRP9900

Death Grip Idler Arm - KRP0200




Death Grip Pitman Arm - KR6654






Instructions:

CLICK HERE FOR COMPLETE INSTALLATION INSTRUCTIONS

Warranty:

(Kryptonite No Fine Print Lifetime Warranty)


Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it-we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase . Complete warranty details can be found [ here ] .
