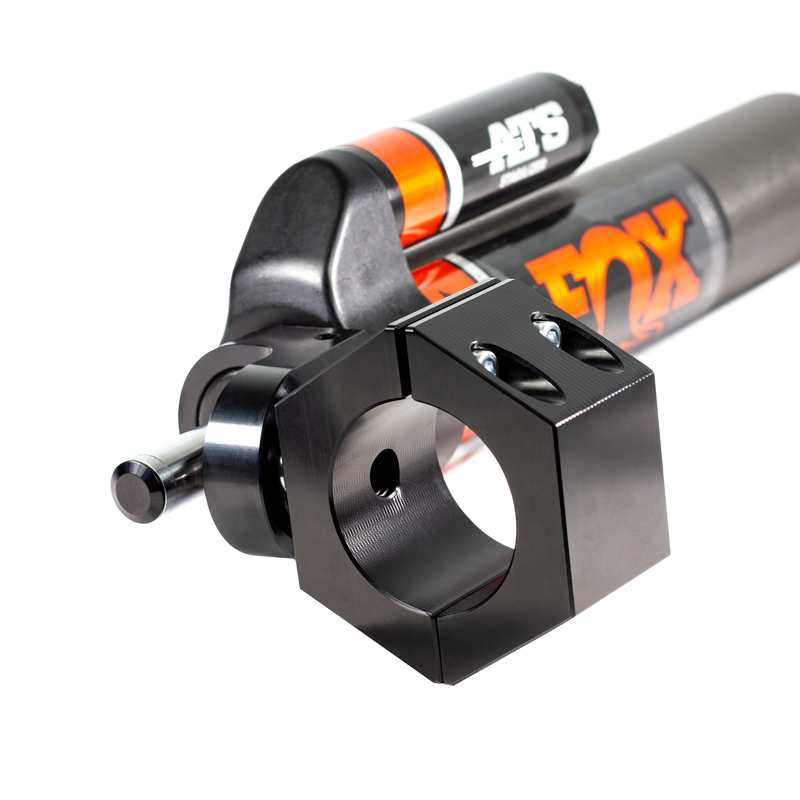

FOX FACTORY RACE SERIES 2.0 ATS STABILIZER FOR 2011-2025 FORD SUPER DUTY F-250/F-350 WITH DRAG LINK - Kryptonite - KRS143-K

Important Fitment Details:

Designed for trucks equipped with a Kryptonite Drag link

Sold Individually

Features:


Adjustable Through Shaft

Eliminates unidirectional pressure

A discreet high mount that acts like duals

Direct bolt-in with Kryptonite Drag Link


Description:

With conventional steering stabilizers, turning in one direction creates an increase in pressure inside the stabilizer as the shaft occupies more volume in the body and displaces the oil. The repercussion is a push or pull steering force felt by the driver as the stabilizer attempts to return to its neutral state. To overcome this unidirectional force, dual opposing stabilizers are often used, but this requires additional mounting hardware and space.

The Factory Race Series 2.0 Stabilizer ATS utilizes an Adjustable Through Shaft (ATS) architecture that eliminates shaft fluid displacement throughout the stabilizer’s entire travel in both directions. The external piggyback reservoir provides additional fluid capacity and utilizes an Internal Floating Piston (IFP) to separate the fluid from the nitrogen gas charge to eliminate cavitation. For increased control that can be tailored to any driving style and setup, an external adjuster provides 24 clicks of adjustment to fine tune the feel. The result is highly customizable and consistent damping of unwanted steering feedback in a single, bolt-on stabilizer.

Stabilizer Specs:


Collapsed (in): 14.1"

Extended (in): 22.2"
