STAGE 3 LEVELING KIT WITH FOX SHOCKS FOR 2017-2025 FORD SUPER DUTY F-250/F-350 - Kryptonite - KRFD17STAGE3FOX

Features:


Provides 2.5" of front lift

Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing

Compatible with Larger wheels/tire with minor trimming

Durable Black Finish

Grade 10.9 Hardware

Precision CAD Engineering

Billet Aluminum Spacer

Direct bolt on Install


Description:

Our new Stage 3 Leveling Kit is just what you need if your looking for a comprehensive suspension upgrade on your 2017-2025 F250/F350 Truck! This complete kit includes everything you need to give the front of your truck an extra 2.5" ride height increase while maintaining adequate droop travel for a premium ride quality.

This kit will allow your to upgrade to a 35"x12.5 Tire with little to no trimming.

* Or a 37" with additional fender and front bumper clearance required .

Built into the box welded structure of this arm is a Tire clearance pocket which will allow clearance of a 37" x 13.5" Tire on a stock 20" rim with 5.5" of backspacing.

We kept alignment adjustability in mind with the design of this arm. Utilizing our exclusive Hexagon Caster Eccentric allows you to make fixed 2 ° incremental changes in 5 different positions. This means that at any ride height from 0" up to 6" you'll be able to dial in Caster exactly where you need it. The best part is, no worrying about loosing your adjustments over time or with rough driving. The Hex shape of this Caster Eccentric will lock your alignment adjustment into place.

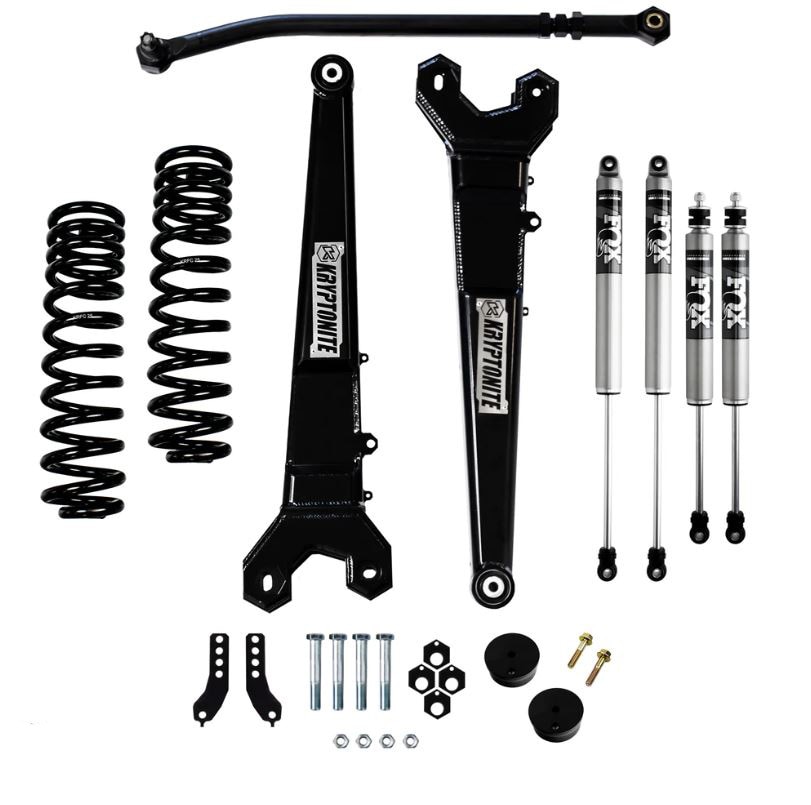

Includes:


Fox 2.0 Performance Series Extended Length shocks (4)

Kryptonite Radius arm kit

Bump Stop Spacer Kit




2.5" Leveling Coils

Kryptonite Adjustable Track Bar - KRFTB17


Warranty:

(Kryptonite No Fine Print Lifetime Warranty)


Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it-we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase . Complete warranty details can be found [ here ] .
