STAGE 2 LEVELING KIT WITH FOX SHOCKS FOR 2017-2022 FORD SUPER DUTY F250/F350 - Kryptonite - KRFD17STAGE2FOX

Features:
Provides 2.5" of front lift
Allows for up to a 35"x12.5" Tire on a 9" wide wheel w/ 4.5" Backspacing
Compatible with Larger wheels/tire with minor trimming
Durable Black Finish
Grade 10.9 Hardware
Precision CAD Engineering
Billet Aluminum Spacer
Direct bolt on Install
Description:
Our new Stage 2 Leveling Kit is just what you need if your looking for a comprehensive suspension upgrade on your 2017-2022 F250/F350 Truck! This complete kit includes everything you need to give the front of your truck an extra 2.5"/3.5" ride height increase while maintaining adequate droop travel for a premium ride quality.
This kit will allow your to upgrade to a 35"x12.5 Tire with little to no trimming.
* Or a 37" with additional fender and front bumper clearance required .
We kept alignment adjustability in mind with the design of this kit which is why we include a set of our 2° Caster Shims to ensure a proper alignment can be complete with our kit.
2.5" vs 3.5" Explained
You may notice our springs, and other manufacturers, have Ford springs listed as 2.5"/3.5", depending on the year. The answer is quite simple, the 2020 and later Ford Super Duty trucks sat 1" lower from the factory than its predecessors. This means the same 2.5" leveling coil on a 2005-2019 Super Duty will provide 3.5" of lift on the 2020+ Super Duty. No other parts changed, the truck just started out lower than before. The only time this is not true is for the 2020+ Super Duty TREMOR, these come from the factory with a 2" lift/level, and makes them 1" taller than a stock height 2005-2019. Using our 2.5"/3.5" spring will lift the front of a 2020+ TREMOR 1.5".

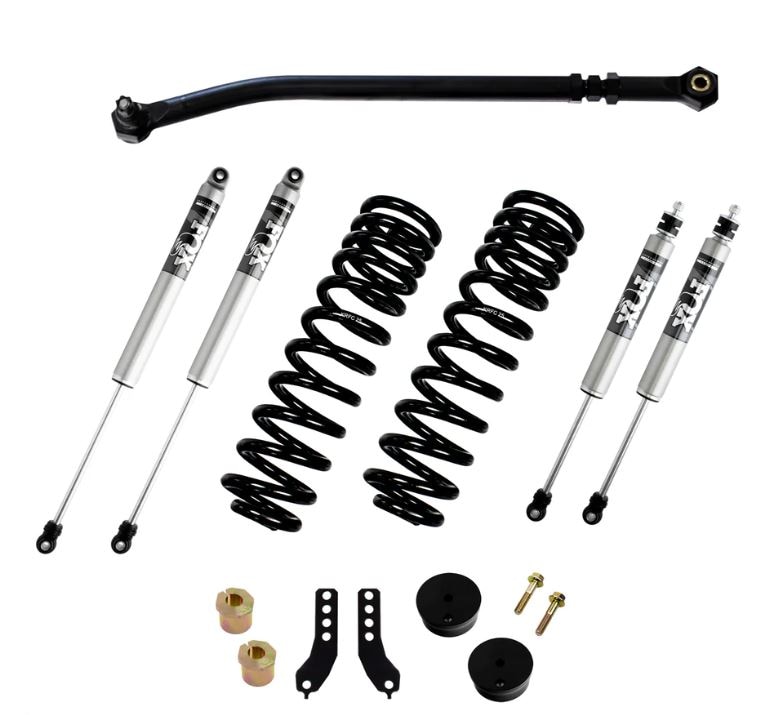

Includes:
Fox 2.0 Performance Series Extended Length shocks (4)
Bump Stop Spacer Kit
2.5" Leveling Coils
Caster Correction Shims
Kryptonite Adjustable Track Bar - KRFTB17
Instructions:
CLICK HERE FOR INSTALLATION INSTRUCTIONS
TRACK BAR INSTRUCTIONS
Warranty:
(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it-we don’t care. If you can break it, we’ll replace it.
Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase. Complete warranty details can be found [ here ].
