Out of Stock
KryptoniteSKU: BSD-KYP-KRCLP11-FT
SS CENTER LINK AND TIE ROD PACKAGE FOR 2011–2025 CHEVY/GMC 2500HD/3500HD - Kryptonite - KRCLP11-FT
$1,159.99
Shipping Estimate
Enter destination details for an instant shipping estimate. Final rates are confirmed at checkout.
Description
Important Fitment Info:
Available in two taper options-
Part# KRCLP11 - Factory OEM Taper
Part# KRCLP11-FT - Fabtech RTS Taper
Most applications require the Factory Taper . If you are unsure which taper your truck uses, please contact us before ordering .
Features:
Engineered to maintain all factory alignment specs and steering geometry
Modeled after the H1 Military Hummer centerlink design for extreme durability
Compatible with GM or aftermarket idler/pitman arms
Fits trucks with factory-style centerlink mounting (spindle-style lift kits only)
Constructed using high-strength materials:
Material
Application
Tensile Strength
Yield Strength
1144 Stress Proof Carbon Steel
Centerlink
115,000 psi (Min.)
100,000 psi (Min.)
4140-4130 Chromoly Steel
Tie Rod Components
85,000-110,000 psi
70,000-85,000 psi
Description:
This insanely strong Kryptonite SS Centerlink and Tie Rod Package is engineered for maximum performance and durability under extreme conditions. Modeled after the legendary H1 Military Hummer steering design, this system vastly outperforms the stock setup found on GM HD trucks.
Designed to retain all factory alignment specifications and work with stock or upgraded pitman and idler arms, this setup is the ultimate steering upgrade for your 2011-2025 GM HD truck. Whether you're off-roading, towing, or daily driving, this package delivers the control and strength you need.
**Note:
If installing this system on a leveled or lifted truck , longer sway bar end links may be required . We recommend Kryptonite HD sway bar end links for best results.
This system only fits trucks that retain the centerlink in the factory location . It is not compatible with control arm drop lift kits.

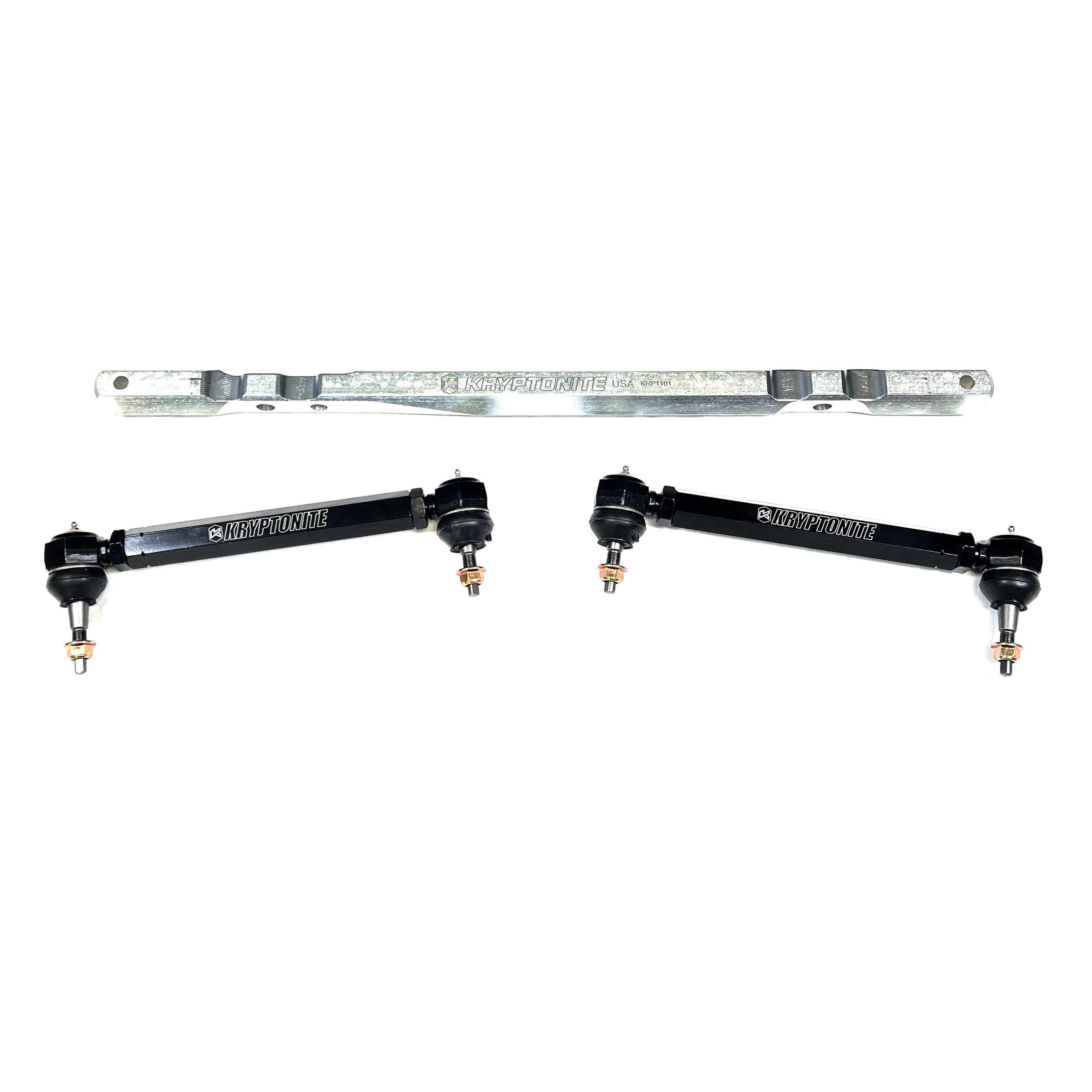

Includes:
Kryptonite SS Centerlink - Factory or Fabtech Taper (Select Fitment)
Kryptonite Death Grip Tie Rods (Driver & Passenger)
Instructions:
CLICK HERE FOR CENTERLINK INSTALLATION INSTRUCTION DOWNLOAD
(Kryptonite No Fine Print Lifetime Warranty)
Kryptonite steering and suspension components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.
Your Kryptonite products must be purchased from an Authorized Dealer , and must complete Warranty Registration within 90 days of purchase . Complete Warranty details can be found [ here ].
