SS CENTERLINK AND TIE ROD PACKAGE 2001–2010 HD TRUCKS & 2002-2009 HUMMER H2 - Kryptonite - KRCLP10

Important Fitment Info:

This system is engineered to retain factory alignment and steering geometry while significantly increasing strength. Compatible with GM and aftermarket pitman/idler arms. This package will only work on trucks with the centerlink in the factory position . If your truck is lifted, it must use a spindle-style lift (not a control arm drop).

If installing on a leveled truck, longer sway bar end links may be required. We recommend our #KRSWEL02

Features:



Modeled After Hummer H1 Military Steering - Far stronger than factory GM centerlink designs


Designed for Factory Geometry - Maintains factory alignment specs and turning radius


High-Strength Materials - Made from 1144 stress-proof carbon steel with 1-5/8” hexagonal tie rod body


Zinc Plated Finish - Enhanced corrosion resistance for long-term durability


Bolt-On Compatibility - Works with stock or aftermarket pitman and idler arms


Description:

Kryptonite’s SS Centerlink and Tie Rod Package is an elite-level upgrade for GM HD truck and Hummer H2 owners looking for serious steering durability without compromising geometry or alignment. Modeled after the robust Hummer H1 military steering design, this package dramatically increases rigidity and strength while keeping your truck driving like it just rolled off the lot.

Fabricated from 1144 stress-proof carbon steel , the 1-5/8” hex centerlink outperforms traditional chromoly options in both tensile and yield strength. Combined with Kryptonite’s tie rods, this setup eliminates flex and instability under heavy load, steering input, or aggressive terrain.

Whether you're towing, hauling, or just daily driving, this centerlink and tie rod system provides a massive leap forward in steering control and long-term reliability.

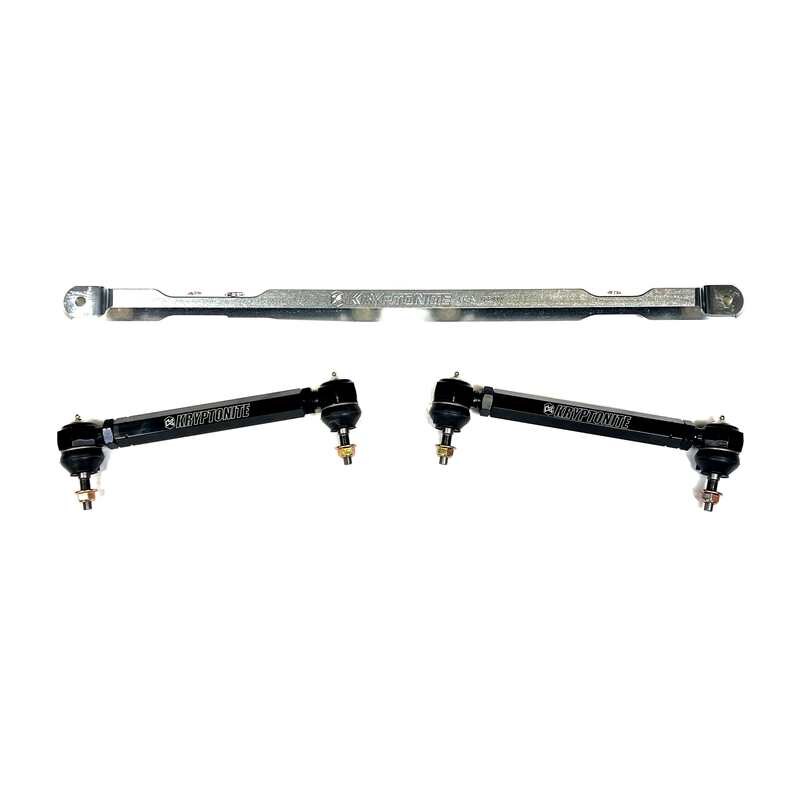

Includes:


1 x Kryptonite SS Series Solid Centerlink

2 x Kryptonite SS Series Tie Rod Assemblies


Material Specs:



Size: 1-5/8” Hexagonal


Material: 1144 Stress Proof Carbon Steel


Finish: Zinc-Plated


Strength Comparison:



Kryptonite 1144 Steel - Tensile: 115,000 psi / Yield: 100,000 psi


Typical Chromoly (4140/4130) - Tensile: 85,000-110,000 psi / Yield: 70,000-85,000 psi


DOWNLOAD CENTERLINK INSTALLATION INSTRUCTIONS HERE

Warranty:

(Kryptonite No Fine Print Lifetime Warranty)


Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it-we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase . Complete warranty details can be found [ here ] .
