STAGE 3 LEVELING KIT WITH FOX SHOCKS FOR 2020-2025 CHEVY/GMC 2500HD/3500 - Kryptonite - KYP-KR20STAGE3FOXHTO

Fits:
2020–2026 Chevy Silverado 2500HD / 3500HD

2020–2026 GMC Sierra 2500HD / 3500HD
Important Fitment Details:
Will NOT Fit: AT4X & ZR2 models equipped with DSSV shocks
Provides up to 2” of front lift
Allows clearance for 35” tires with no trimming
You can fit up to a 37" tire with some trimming
Not compatible with DSSV-equipped AT4X or ZR2 trucks
Exceeding 2” of front lift may cause shock failure
undefined
Features:
Forged torsion keys – 25% stronger than OEM
Kryptonite boxed upper control arms with pre-installed bushings and ball joints
FOX 2.5 HTO Performance Series shocks – engineered for lifted trucks
Hydraulic Top Out (HTO) technology – reduces harsh top-outs and enhances comfort with aggressive tires and taller ride height
Maintains OEM ride quality
Bolt-on installation – no cutting required
Lifetime Warranty – covers breakage, wear, and defects
Description:
The Kryptonite Stage 4 Leveling Kit featuring Fox 2.5 HTO Performance Series shocks is the ultimate suspension upgrade for 2020–2026 GM HD trucks. Designed for performance, strength, and real-world reliability, this package delivers more than just ride height—it delivers capability.
Kryptonite’s forged torsion keys lift the front end up to 2 inches while maintaining OEM ride characteristics. The included boxed upper control arms correct suspension geometry and improve articulation. For damping, the Fox 2.5 HTO shocks utilize Hydraulic Top Out technology to control rebound and reduce harsh impacts—perfect for trucks running oversized tires or frequent off-road use.
This kit is engineered for easy installation, and every component is made to handle years of hard use without compromise.

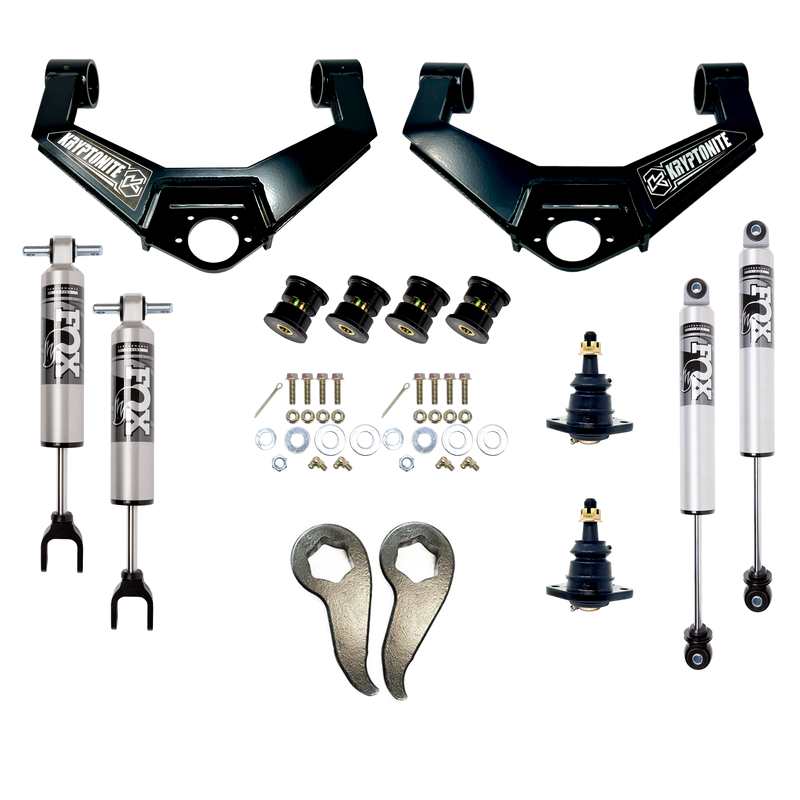

Includes:
1 x Kryptonite Upper Control Arm Pair
4 x Control Arm Sleeves
8 x Polyurethane Control Arm Bushings
2 x Kryptonite Bolt-In Upper Ball Joints
1 x Hardware Package
2 x Forged Leveling Keys
2 x Fox 2.5 HTO Performance Series Front Shocks – Part# KRS4010
2 x Fox 2.5 HTO Performance Series Rear Shocks – Part# KRS4009
Instructions:
DOWNLOAD CONTROL ARM INSTALLATION INSTRUCTIONS HERE
DOWNLOAD LEVELING KEY INSTALLATION INSTRUCTIONS HERE
