STAGE 3 LEVELING KIT WITH FOX 2.5 SHOCKS FOR 1/2 TON 6 LUG TRUCKS 2019+ - Kryptonite - KR19STAGE3FOXPS

Important Fitment Details:

2WD / 4WD trucks (CHEVY WT- Work Truck, Custom, LT, RST, LTZ,High Country) (GMC Sierra, SLE, Elevation, SLT, Denali)

This kit will not fit AT4 or Trail Boss

DESCRIPTION:

With the glaring short comings of the OEM control arm design, you can't ignore the need for an aftermarket fix. The stock arm houses a steel stud inside of an aluminum cup with no real reinforcement for retention. These are prone to failure and it's guaranteed with leveled trucks. The Kryptonite Upper Control Arms are laser-cut and fabricated into an extremely strong boxed design. Our industry leading strength following suite with our lifetime warranty ball joints. These control arms are provisioned for ride height sensors and factory brake line tabs.








This Leveling kit includes everything you need to lift the front of your truck 2" and provides a great ride. Kit includes Fox Performance Series 2.5 Coil-over Shocks pre-set at 2" above stock ride height. Plus Fox Performance Series 2.5 Shocks for the rear of your truck.







*Our Control Arms paired with OEM wheels will be limited to a maximum tire width of 11.2". (Exceeding an 11.2" tread width will require 5.6" or less in backspacing)*







FEATURES:


Fox bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.




Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.




Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.5 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

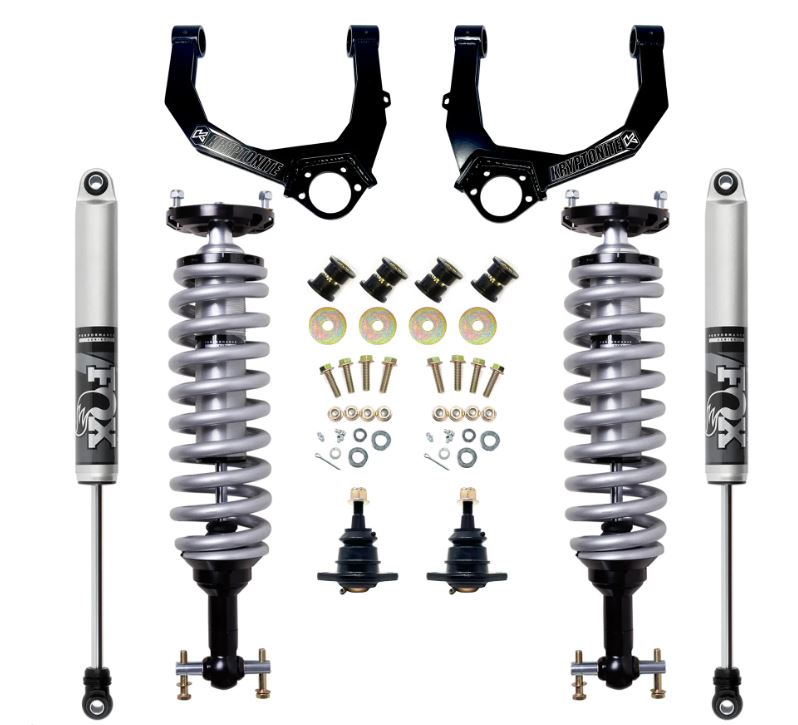

INCLUDES:


1 x Kryptonite Upper Control Arm Pair

4 x Control Arm Sleeves

8 x Control Arm Bushings

2 x Kryptonite Bolt-on Upper Ball Joints

1 x Hardware Package


2 x Fox Leveling Coil-overs Front 2" Part# KRS005



2 x Fox Shocks Part# KRS029



This leveling kit gives 2”of lift and gives clearance to add up to 33" tire.

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

Logo plate replacement: #KRUCA19PLATES

(Kryptonite No Fine Print Lifetime Warranty)


Kryptonite Steering & Suspension Components are warrantied for life to their original purchaser. This warranty is against any manufacturer defects, premature wear or breakage. Race it, jump it, off road it, wreck it, lift it, I think you get it? We don't care. If you can break it we will replace it.

Your Kryptonite products must be purchased from an Authorized Dealer , and must complete Warranty Registration within 90 days of purchase . Complete Warranty details can be found here .
