STAGE 3 LEVELING KIT WITH FOX 2.0 SHOCKS FOR CHEVY/GMC 1/2 TON 6 LUG TRUCKS 2019+ - Kryptonite - KR19STAGE3FOX

Important Fitment Details:

2WD / 4WD trucks ( CHEVY WT- Work Truck, Custom, LT, RST, LTZ) ( GMC Sierra, SLE, Elevation, SLT, Denali)

This kit will not fit AT4 or Trail Boss

Description:

This Leveling kit includes everything you need to lift the front of your truck 2" and provides a great ride. Kit includes Fox Performance Series 2.0 Coil-over Shocks pre-set at 2" above stock ride height. Plus Fox Performance Shocks for the rear of your truck. To allow for suspension travel we have included Kryptonite Upper Control arms. These arms are laser cut and welded into an extremely strong boxed design.








*Our Control Arms paired with OEM wheels will be limited to a maximum tire width of 11.2". (Exceeding an 11.2" tread width will require 5.6" or less in backspacing)*








Features:

Fox bolt-on, Performance Series Coil-Over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount includes a composite bushing that isolates noise and vibration.




Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock.




The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predictable ride quality capable of handling the roughest road conditions.

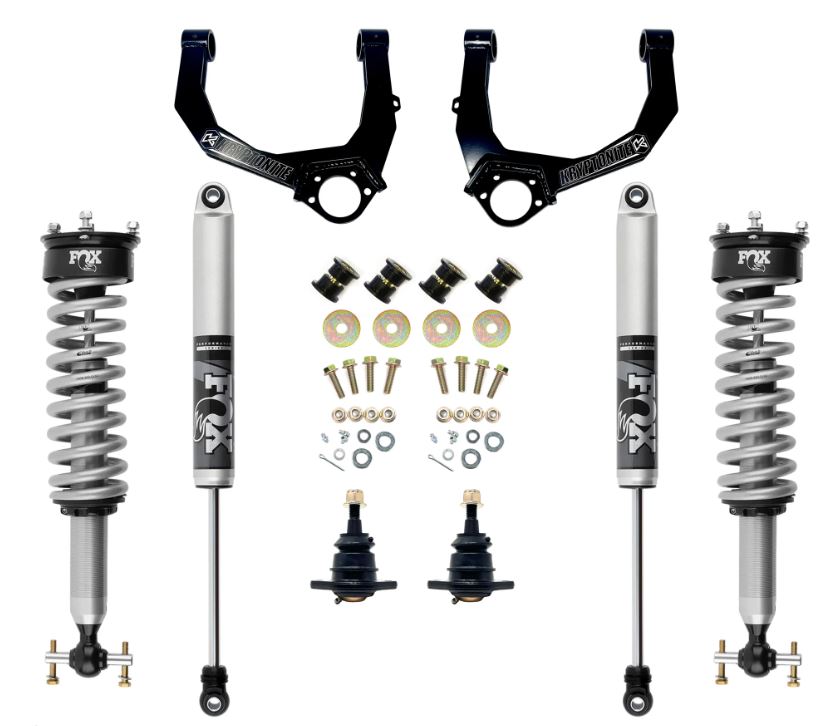

Includes:


1 x Kryptonite Upper Control Arm Pair

4 x Control Arm Sleeves

8 x Control Arm Bushings

2 x Kryptonite Bolt-on Upper Ball Joints

1 x Hardware Package


2 x Fox Leveling Coil-overs Front 2" Part# KRS134



2 x Fox Shocks Part# KRS209



This leveling kit gives 2”of lift and gives clearance to add up to 33" tire.

Logo plate replacement: #KRUCA19PLATES

Instructions:

DOWNLOAD INSTALLATION INSTRUCTIONS HERE

Warranty:

(Kryptonite No Fine Print Lifetime Warranty)


Kryptonite Steering & Suspension components are warrantied for life to their original purchaser. This warranty covers manufacturer defects, premature wear, or breakage. Race it, jump it, off‑road it, wreck it, lift it-we don’t care. If you can break it, we’ll replace it.

Your Kryptonite products must be purchased through an Authorized Dealer, and Warranty Registration completed within 90 days of purchase . Complete warranty details can be found [ here ] .
