Quick Spool Turbocharger for Detroit Series 60 12.7L & 14L - Industrial Injection - QS-4754109560

Industrial Injection Quick Spool Turbocharger for Detroit Series 60

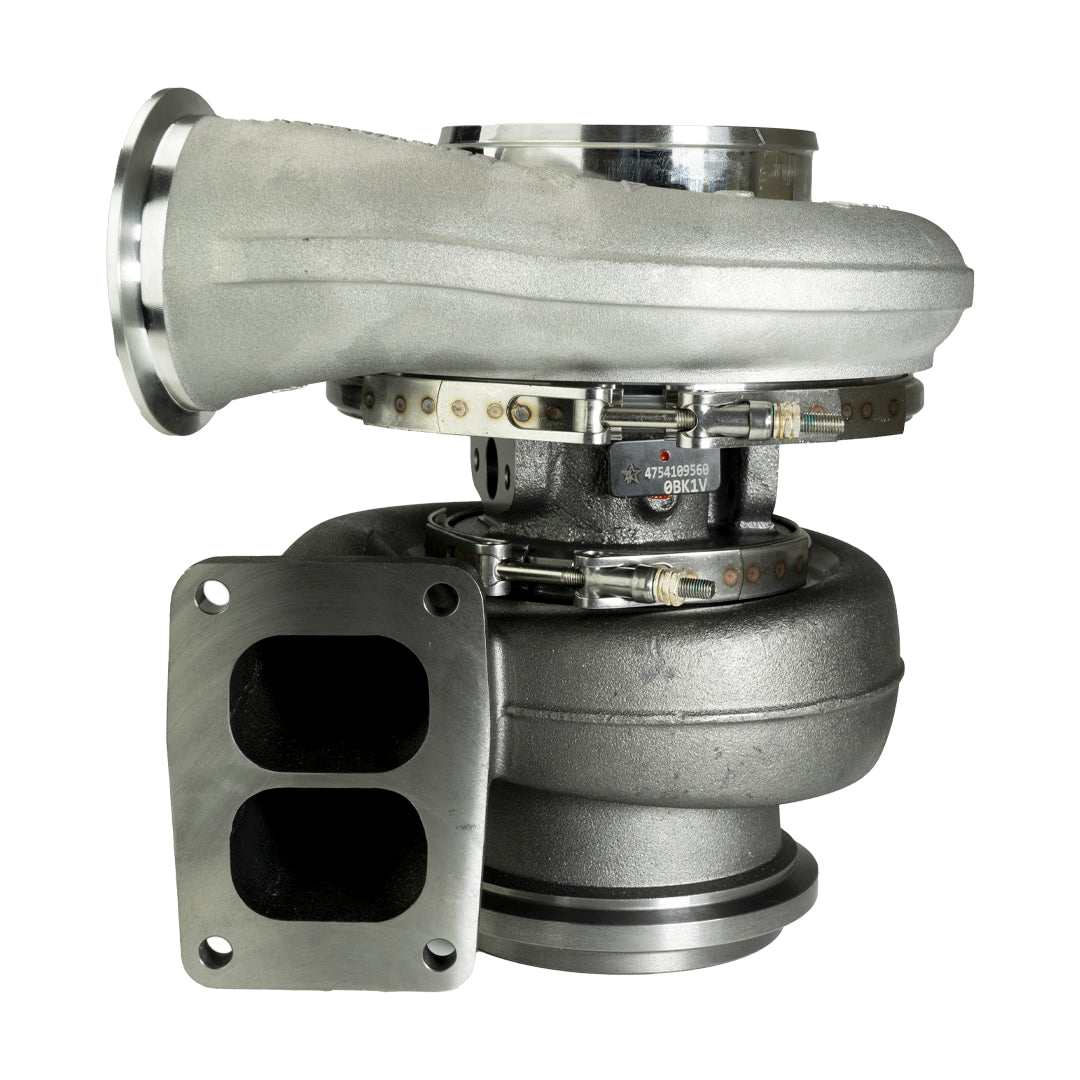

Upgrade your Detroit Diesel Series 60 with the Industrial Injection Quick Spool turbocharger. Designed for select 12.7L and 14L applications, the QS-4754109560 combines a 75mm billet compressor wheel with a 96mm turbine wheel and 1.32 A/R divided T6 turbine housing.
The Quick Spool configuration is designed to improve turbocharger response while providing the airflow capacity required for performance-oriented Series 60 applications. The 1.32 A/R turbine housing helps balance spool-up and exhaust flow while controlling drive pressure across the engine’s operating range.
This turbocharger features a 360-degree thrust bearing for improved load capacity and durability under increased boost and exhaust temperatures. Its application-specific configuration allows it to serve as a drop-in upgrade for qualifying Detroit Series 60 installations.
Features
Industrial Injection Quick Spool performance turbocharger
Designed for select Detroit Series 60 12.7L and 14L engines
Quick-spooling configuration for improved turbocharger response
75mm billet compressor wheel
96mm turbine wheel
Divided 1.32 A/R T6 turbine housing
360-degree thrust bearing for increased load capacity
Designed to support increased airflow and performance
Drop-in configuration for qualifying applications
Technical Specifications
Compressor Wheel: 75mm billet
Turbine Wheel: 96mm
Turbine Housing A/R: 1.32
Turbine Inlet: Divided T6
Thrust Bearing: 360-degree
Turbocharger Type: Fixed-geometry performance upgrade
Application
Engine: Detroit Diesel Series 60
Displacement: Select 12.7L and 14L applications
Brand: Industrial Injection
Product Line: Quick Spool
Part Number: QS-4754109560
This is a performance upgrade and may not match every original Series 60 turbocharger configuration. Fitment can vary by model year, engine rating, exhaust manifold, compressor connections, and turbine outlet. Verify the original turbocharger and connection specifications or contact Industrial Injection before ordering.
