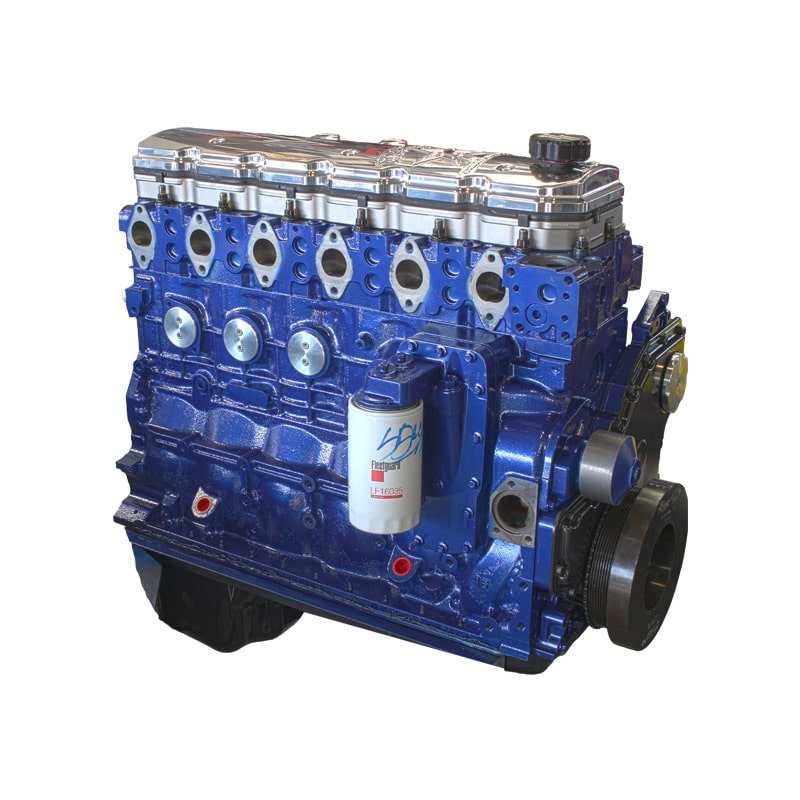

Industrial Injection 6.4L Shredder Series Cummins Long Block Engine
The Industrial Injection 6.4L Shredder Series Cummins Long Block is the ultimate high-horsepower diesel engine built for customers who refuse to compromise. Engineered for drag racing, sled pulling, and extreme competition use, the Shredder Series combines race-proven components, advanced machining processes, and industry-leading airflow technology to create one of the most capable Cummins engines available.
Starting with a 6.7L Cummins block fitted with 4.130" ductile iron sleeves, every engine is torque plate honed and assembled using a fully balanced and polished rotating assembly. Diamond forged pistons, Wagler HD Forged Rods, a 14mm Two-Piece Silver Back Gorilla Girdle with ARP Main Studs, and premium coated bearings provide the strength necessary to withstand extreme cylinder pressures and horsepower levels.
The valvetrain is built around a Billet Hamilton 220/240 Camshaft, Billet Oversized Tappets, Billet Valve Bridges, DLC-Coated Trunnions, and Stage 2 Billet Pushrods to ensure maximum durability and valve train stability at high RPM.
At the heart of the Shredder Series is our race-proven Stage 3 Cylinder Head featuring oversized 36mm valves, extensive CNC porting, and an incredible 285 CFM of airflow at .450" lift . This cylinder head design has supported over 4,400 horsepower in competition applications, making it one of the most proven and capable Cummins cylinder heads in the industry.
To ensure maximum reliability under extreme boost levels, the engine is secured with ARP 625 High Strength Head Studs, billet freeze plugs, a Fluidampr harmonic damper, and premium oiling and cooling components throughout.
Features:
6.7L Cummins block with 4.130" ductile iron sleeves
Torque plate honed cylinder bores
Fully balanced and polished rotating assembly
Diamond Forged 4.130" bore pistons with Total Seal rings
Wagler HD Forged Connecting Rods
14mm Two-Piece Silver Back Gorilla Girdle with ARP Main Studs
Billet Hamilton 220/240 Camshaft
Billet oversized tappets
Sim-tested engine assembly
Stage 3 CNC Ported Cylinder Head with Fire Ring Grooves
285 CFM airflow at .450" lift
Oversized 36mm stainless steel nitride-coated valves
Premium oversized high-temperature valve seats
Hardened alloy valve guides
Drilled and tapped coolant freeze plugs
USA-made 120lb performance valve springs
Billet valve bridges
Custom DLC-coated trunnions
ARP 625 high-strength head studs
Stage 2 billet pushrods
Billet Shredder Series valve cover
Coated HX Series main and rod bearings
Billet freeze plugs
Fluidampr harmonic damper
New oil pump
New oil cooler
New water pump
Stamped oil pan
Benefits:
Designed for extreme horsepower and competition applications
Proven Stage 3 cylinder head supports over 4,400 horsepower
Increased airflow and engine efficiency
Maximum bottom-end strength and durability
Enhanced head gasket sealing with fire ring grooves
Superior valve train stability at elevated RPM
Built to withstand extreme boost and cylinder pressures
Optimized for drag racing, sled pulling, and competition use
Precision balanced for smooth operation and reliability
Applications:
High-performance 5.9L and 6.7L Cummins competition builds
Drag racing
Sled pulling
Extreme horsepower street and race applications
Super Shredder Series Upgrade Available:
Take performance even further with the Super Shredder Series Upgrade , featuring:
Concrete-filled engine block
1" deck plate
1" longer Wagler HD Forged Connecting Rods
9/16" ARP Head Studs
$4,000 Upgrade
Important Notes:
Turbocharger not included
Fuel system components not included
Side draft intake not included
Recommended break-in oil: Driven Racing Oil / Joe Gibbs Break-In Oil during initial break-in period (sold separately)
Why Choose Industrial Injection?
The Shredder Series represents the pinnacle of Cummins engine performance. Built using race-proven components, advanced machining technology, and a cylinder head capable of supporting over 4,400 horsepower , this engine is designed for competitors who demand the absolute best in strength, airflow, and reliability.
