6.7L Cummins Stage 3 Ported & Polished Cylinder Head (2007.5-2018) - Industrial Injection - PDM-67RHS2

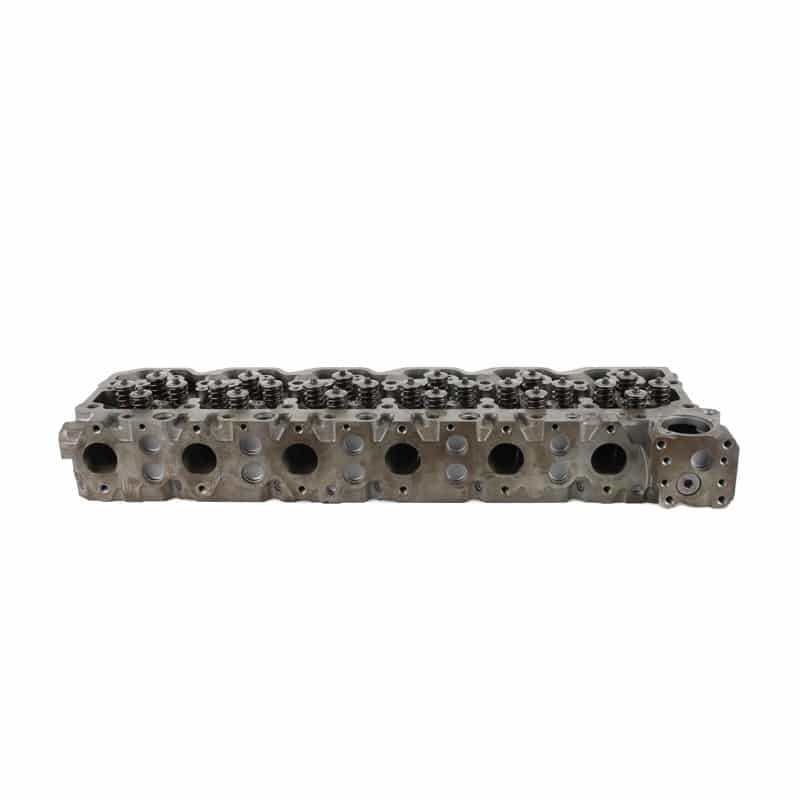

Industrial Injection 6.7L Cummins Stage 3 Ported and Polished Cylinder Head with Fire Ring Grooves (2007.5-2018)
The Industrial Injection Stage 3 Ported and Polished Cylinder Head with Fire Ring Grooves is engineered for serious 6.7L Cummins racers, sled pullers, and high-horsepower performance builds. Featuring extensive CNC porting, oversized valves, and premium valvetrain components, this cylinder head is designed to maximize airflow, improve durability, and support extreme horsepower applications. Proven in the most demanding competition environments, this cylinder head design has supported over 4,400 horsepower , making it one of the most capable and proven Cummins cylinder heads available.
Using advanced 5-axis CNC porting technology and precision hand-finishing, each cylinder head delivers exceptional airflow and cylinder-to-cylinder consistency. With an impressive 285 CFM of airflow at .450" lift , compared to approximately 165 CFM from a stock cylinder head, the Stage 3 head provides the airflow required to support today's highest horsepower diesel engines.
The intake shelf is machined off to accept a performance intake runner, while oversized 36mm stainless steel nitride-coated valves, premium high-temperature valve seats, hardened alloy valve guides, and USA-made 120lb valve springs provide the strength and reliability needed for extreme race and sled pull applications.
Radius-cut fire ring grooves are machined into the head to enhance combustion sealing and help prevent head gasket failure in high-boost, high-cylinder-pressure environments. Drilled and tapped steel coolant freeze plugs eliminate a common factory failure point, ensuring maximum reliability under extreme operating conditions.
Features:
Intake shelf machined off to accept performance intake runner
Fully CNC ported cylinder head with performance hand blending
285 CFM airflow at .450" lift
Oversized 36mm stainless steel nitride-coated valves
Premium oversized high-temperature valve seats
Diamond honed hardened alloy valve guides
Drilled and tapped steel coolant freeze plugs
USA-made 120lb performance valve springs
Radius-cut fire ring grooves for improved head gasket sealing
Complete and ready for installation
Benefits:
Proven to support over 4,400 horsepower
Significantly increased airflow and engine efficiency
Supports extreme horsepower and competition builds
Enhanced combustion sealing for high-boost applications
Improved valve train control at elevated RPM
Reduced risk of dropped valve seats and freeze plug failures
Optimized for sled pulling, drag racing, and competition use
Built to withstand extreme cylinder pressures and temperatures
Applications:
2007.5-2018 Dodge Ram 2500/3500 6.7L Cummins Engines
High-performance street, race, and sled pull builds
Important Notes:
Fire Ring Head Gasket sold separately
Performance Intake Runner sold separately
Due to the oversized 36mm valves, this cylinder head will not clear a standard 5.9L Cummins bore. A minimum 4.125" bore is required.
Why Choose Industrial Injection?
Designed for serious competitors, the Stage 3 Ported and Polished Cylinder Head combines industry-leading airflow, premium valvetrain components, and advanced CNC machining to deliver the performance and reliability required in today's highest horsepower diesel applications. With a proven track record of supporting over 4,400 horsepower , this cylinder head has been tested and trusted in some of the most demanding race and sled pull builds in the industry.
