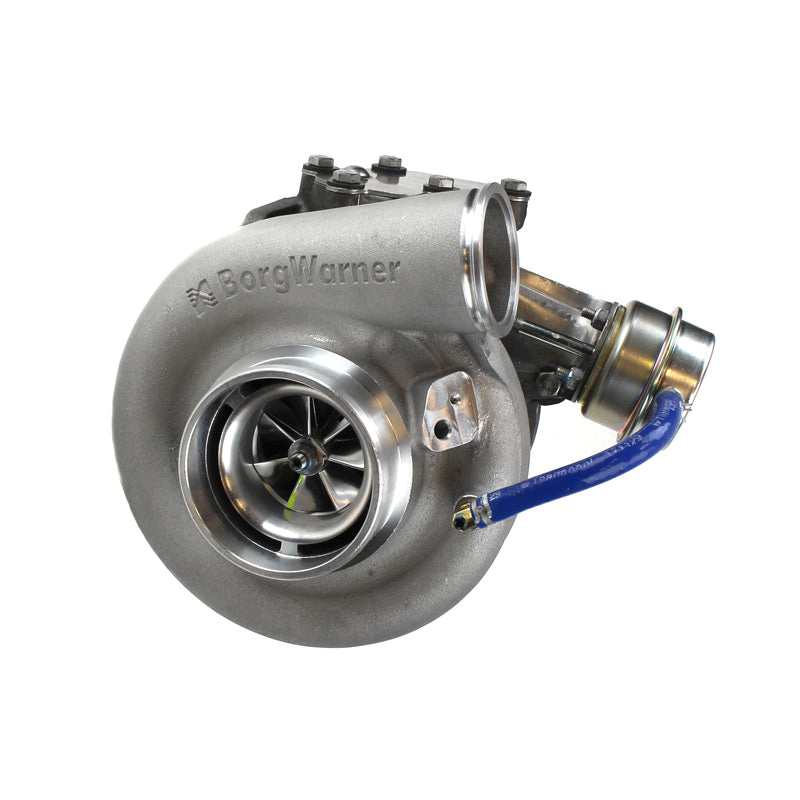

1994-2002 5.9 Cummins PhatShaft Turbos - 64 Turbo 12cm Housing - Industrial Injection - 3642306501

1994-2002 5.9 Cummins PhatShaft Turbos
Fits: 1994-2002 5.9 Cummins
Item Type: Industrial Injection 5.9 Cummins PhatShaft
Brand: Industrial Injection
FEATURES:
Increased Performance
Lower EGTs
Designed For Towing and Daily Driving
62mm or 64mm Compressor Wheel
65mm Turbine Wheel
(FMW) Forged Milled Compressor Wheel
360* Thrust Bearing
Dual Grooved High Performance Journal Bearing
Drop In Replacement Turbo
The Industrial Injection Original PhatShaft Series Turbos were designed to handle mild fueling upgrades to help increase overall performance and be perfect for towing and daily driving. The PhatShaft comes equipped with an extended tip 62mm, or 64mm forged milled compressor wheel and 360 degree thrust bearing. The PhatShaft utilizes the 65mm turbine wheel and is available in a 12cm or 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel. Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow. We recommend the 12cm Housing for 12 valve and 24 valve trucks for faster spool up.
NOTE: Requires HX40 Downpipe
NOTE: Depending on the factory oil drain configuration it may need to be slightly modified to clear the wastegate rod
CAN NOT SHIP TO CALIFORNIA
*All Industrial Injection Performance Products Are Not Legal For "On-Road", "Off-Road", or "Dual-Use". These Products May Only Be Used In " Dedicated Competition Use Only " Vehicles. Compliance With State and Federal Emission Standards Is The Consumer's Responsibility.
