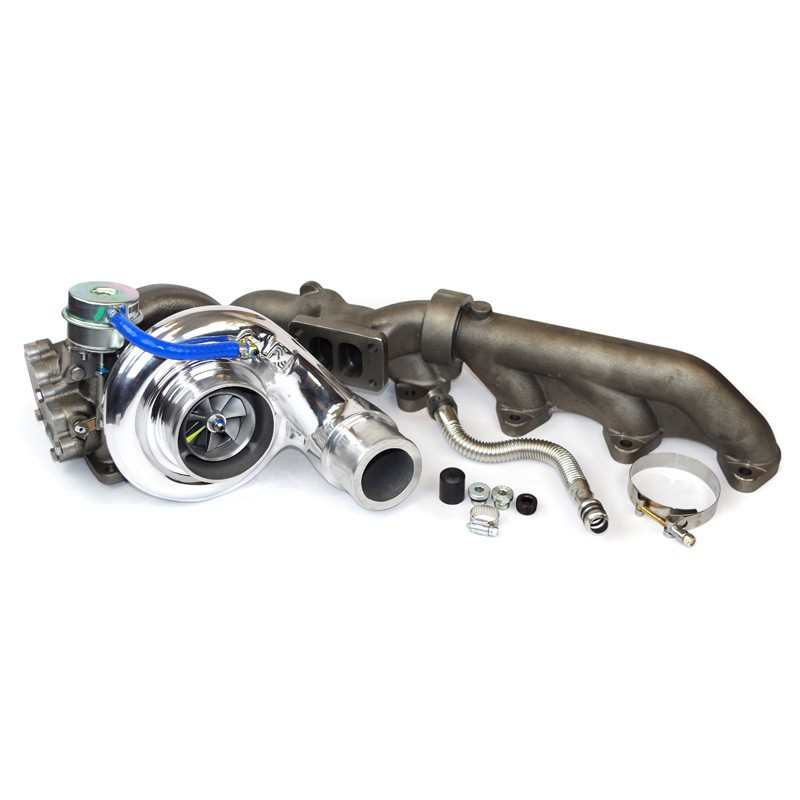

Dodge Silver Bullet 69 Turbo Kit For 13-18 6.7L Cummins 3500 Industrial Injection

2013-2018 Cummins 6.7L Silver 69 Kit (Will Not Fit 2013 2500). This kit is designed by Industrial Injection as the best single turbo upgrade for the 6.7L Cummins engine. We have tested all different size turbos and believe this setup will get you the best results.

The Silver Series PhatShaft is our latest effort to achieve perfection. Much like the Super PhatShaft it was designed to handle multiple fueling upgrades and comes in three sizes.

62mm 64mm, and 66mm and now 69mm. What separates the Silver Series PhatShaft from the Super PhatShaft is our new technology 74mm turbine wheel. To improve on the Super PhatShaft turbos we needed improve performance at a lower rpm range and we needed to reduce compressor surge.

The solution is the 74mm turbine which is the latest in turbine trim design technology. The new trim design transfers exhaust gas energy more efficiently than any other turbine on the market.

It also allows for better exhaust gas expulsion which results in lower EGT's and quicker rotor acceleration. The most important benefit of the 74 mm turbine wheel is that it gets rid of turbo surge and broadens the power range.

All silver series turbo come with a 360 degree thrust bearing and an appealing polished compressor housing. The Silver series utilizes the proven 14cm exhaust housing with a modified exhaust nozzle. We maximize the wastegate ports in the 14cm housing by enlarging the diameter.

The turbine housing wastegate cover it custom build to allow full wastegate travel. Like all PhatShaft turbochargers they are equipped with dual grooved high performance bearings and an adjustable boost elbow.

The Silver Bullet 66 Kit for the 6.7L Cummins was designed to handle multiple fueling upgrades and increase overall performance. The Bullet comes equipped with an extended tip 66mm forged milled compressor wheel and 360 degree thrust bearing.

The Silver Bullet utilizes the 74mm turbine wheel and comes standard with an appealing polished compressor housing. The Silver Bullet uses a 14 cm exhaust housing in which we modify the angle of the exhaust nozzle, maximize the wastegate ports, and enlarge the wastegate chamber for full wastegate travel.

Like all PhatShaft turbochargers it is equipped with dual grooved high performance bearings and an adjustable boost elbow.

Features:


Cummins 6.7L 2013-2018

Silver Bullet 69mm Kit

Increased Performance

Lower EGTs

(FMW) Forged Milled Compressor Wheel

360 Thrust Bearing

Dual Grooved High Performance Journal Bearings

Full Travel Wastegate Modification

Drop In Replacement Turbo Kit


All Industrial Injection Performance Products Are Not Legal For On-Road, Off-Road, or Dual-Use. These Products May Only Be used In Closed Circuit Competition Only Vehicles. Compliance With State And Federal Emission Standards Is The Consumer's Responsibility.
