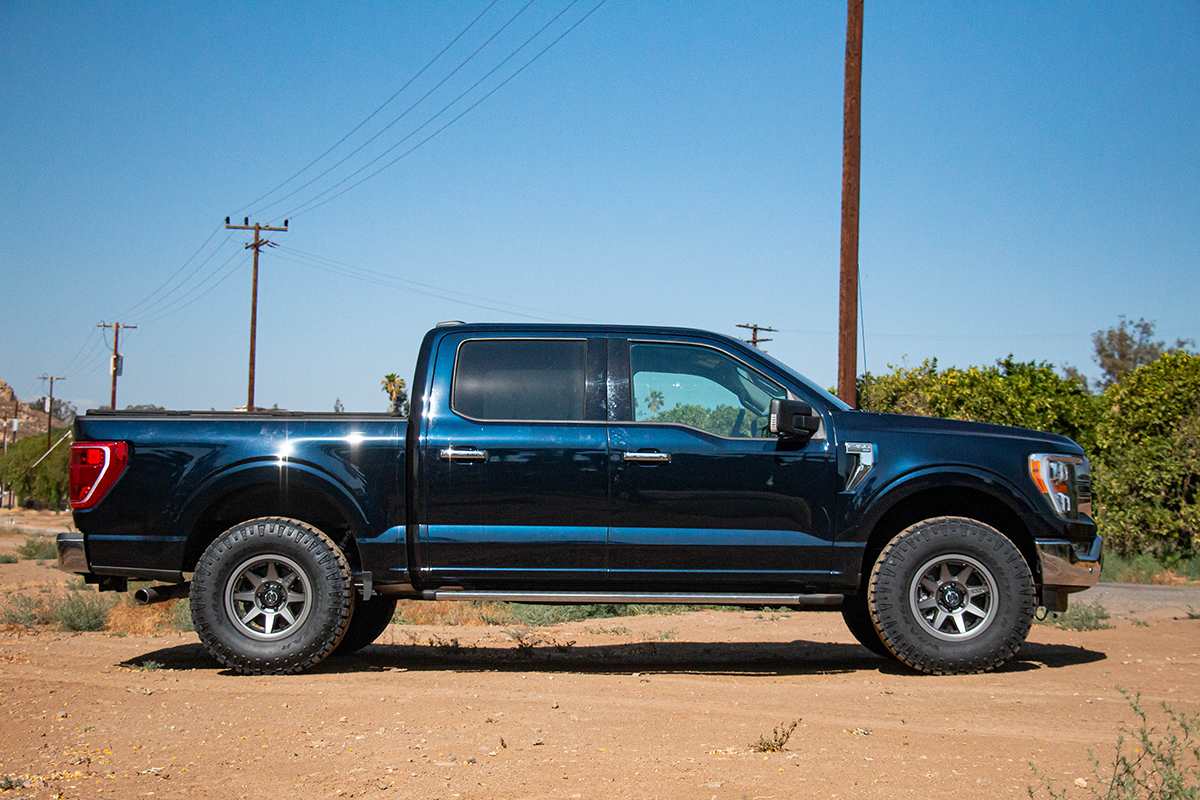

21-24 Ford F-150 (4WD - Leaf) Suspension Lift Kit - ICON Vehicle Dynamics - K93114

SUSPENSION SYSTEM
K93114
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
APPLICATION NOTE #179: Only compatible with stock or original ICON Delta Joint UCAs.
Not compatible with ICON Delta Joint Pro UCAs.
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Not compatible with F-150 Tremor or F-150 Raptor
TECH NOTE: Not compatible with F-150s equipped with BlueCruise
TECH NOTE: Models equipped with PowerBoost hybrid engines will have lift height range of 0-2.
5" over stock
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.
25" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
21-24 FORD F150 4WD 0-2.
75" STAGE 4 SUSPENSION SYSTEM CDCV
Stage 4 includes 2.
5” coilovers with remote reservoirs with height adjustability from 0-2.
75” of lift.
ICON 2.
5 Series piggyback rear rshocks balance the performance of the truck from front to rear.
All shocks also include CDC Valves.
ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
The Stage 4 system includes vehicle-specific tuned 2.
5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-2.
75” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
5 Aluminum Series CDCV piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The included ICON CDC Valves are externally adjustable valves that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.
The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 4 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
2.
5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
Adjustable coilovers from 0-2.
75" of lift height
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
6061 Aircraft grade aluminum CNC machined components
High strength alloy CNC machined lower bar pins
FK rod end bearings for extended longevity and minimal deflection
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
2.
5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
100% Bolt-on system - no cutting or welding necessary for install
ICON 2021-2024 Ford F-150 4WD, 0-2.
75" Lift, Stage 4 Suspension System, CDCV, K93114
ICON 2021-2024 Ford F-150 4WD, 0-2.
75" Lift, Stage 4 Suspension System, CDCV
ICON 21-24 FORD F150 4WD 0-2.
75" STAGE 4 SUSPENSION SYSTEM CDCV.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2021 Ford F-150 XL ; ; ; ; ; ; 2021 Ford F-150 SSV 2021 Ford F-150 Police Responder 2021 Ford F-150 XLT ; ; ; ; ; ; 2021 Ford F-150 King Ranch ; ; ; ; ; ; 2021 Ford F-150 Platinum ; ; ; ; ; ; 2021 Ford F-150 Lariat ; ; ; ; ; ; 2022 Ford F-150 XL ; ; ; ; 2022 Ford F-150 SSV 2022 Ford F-150 Police Responder 2022 Ford F-150 XLT ; ; ; ; 2022 Ford F-150 Lariat ; ; ; ; 2022 Ford F-150 King Ranch ; ; ; ; 2022 Ford F-150 Platinum ; ; ; ; 2023 Ford F-150 XL ; ; ; ; 2023 Ford F-150 SSV 2023 Ford F-150 Police Responder 2023 Ford F-150 XLT ; ; ; ; 2023 Ford F-150 Lariat ; ; ; ; 2023 Ford F-150 King Ranch ; ; ; ; 2023 Ford F-150 Platinum ; ; ; ; 2024 Ford F-150 XL ; ; 2024 Ford F-150 SSV 2024 Ford F-150 Police Responder 2024 Ford F-150 XLT ; ; ; ; 2024 Ford F-150 STX ; ; ; ; 2024 Ford F-150 Lariat ; ; ; ;
