15-20 Ford F-150 (4WD - Leaf) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K93081

SUSPENSION SYSTEM
15-20 F-150 4WD 0-2.
63" STG 1 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
TECH NOTE: Models equipped with Power-Stroke diesel engines will have lift height range of 0-2.
13" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
Ships in multiple boxes
2015-2020 FORD F-150 4WD 0-2.
63" STAGE 1 SUSPENSION SYSTEM
2015-2020 FORD F-150 4WD 0-2.
63" LIFT STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics 2015-2020 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

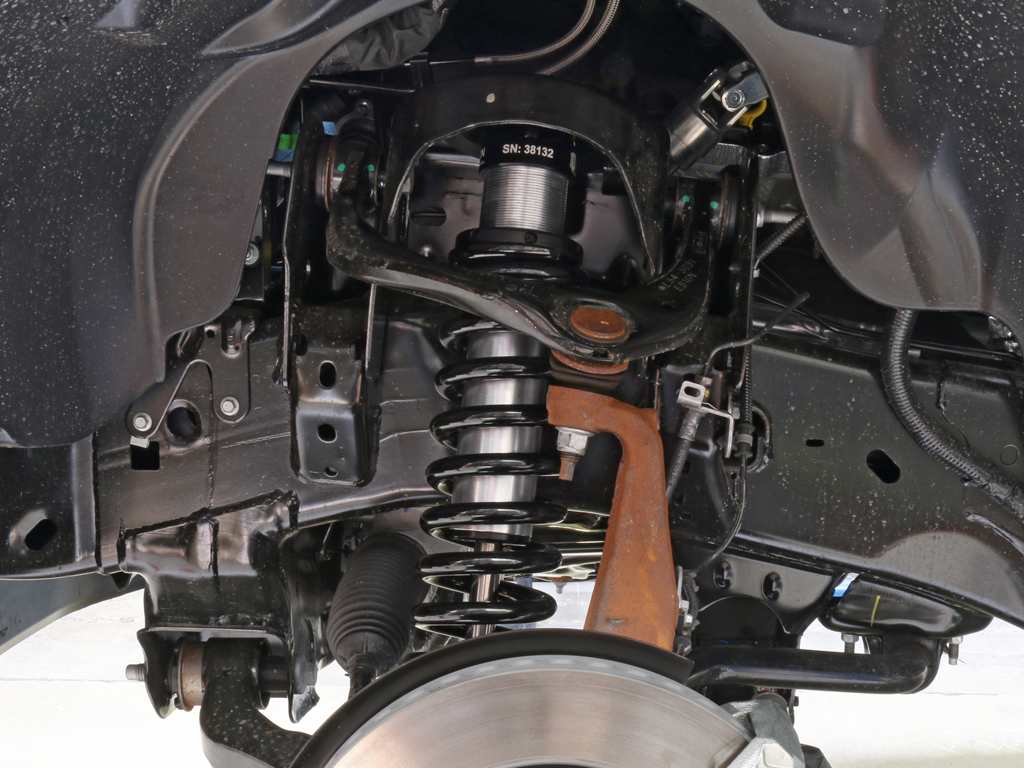

The Stage 1 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-2.
63” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2015-2020 F-150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
Unique valving developed for the lighter weight of the 2015-2020 F-150
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers from 0-2.
63" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8 shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.
0 aluminum body rear IFP shock with 5/8" polished shaft
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2015-20 Ford F150 4WD, 0-2.
63" Lift, Stage 1 Suspension System, K93081
ICON 2015-20 Ford F150 4WD, 0-2.
63" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2015 Ford F-150 King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2015 Ford F-150 Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2015 Ford F-150 Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2015 Ford F-150 XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2015 Ford F-150 XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 XL Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 XLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2016 Ford F-150 SSV Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2017 Ford F-150 King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment 2017 Ford F-150 Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
Lift heights above 2” over stock may require aftermarket front upper control…
