2014 Ford F-150 (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K93065

SUSPENSION SYSTEM
2014 F150 4WD 1.
75-2.
63" STG 5 SUSP ALUM
OEM Wheels and Tires Fitment: Not compatible with all available OE wheel/tire combinations.
Aftermarket wheels with lower offset/less backspace recommended.
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
Ships in multiple boxes
2014 FORD F150 4WD 1.
75-2.
63" STAGE 5 SUSPENSION SYSTEM W BILLET UCA
2014 FORD F150 4WD 1.
75-2.
63" LIFT STAGE 5 SUSPENSION SYSTEM WITH BILLET UCA

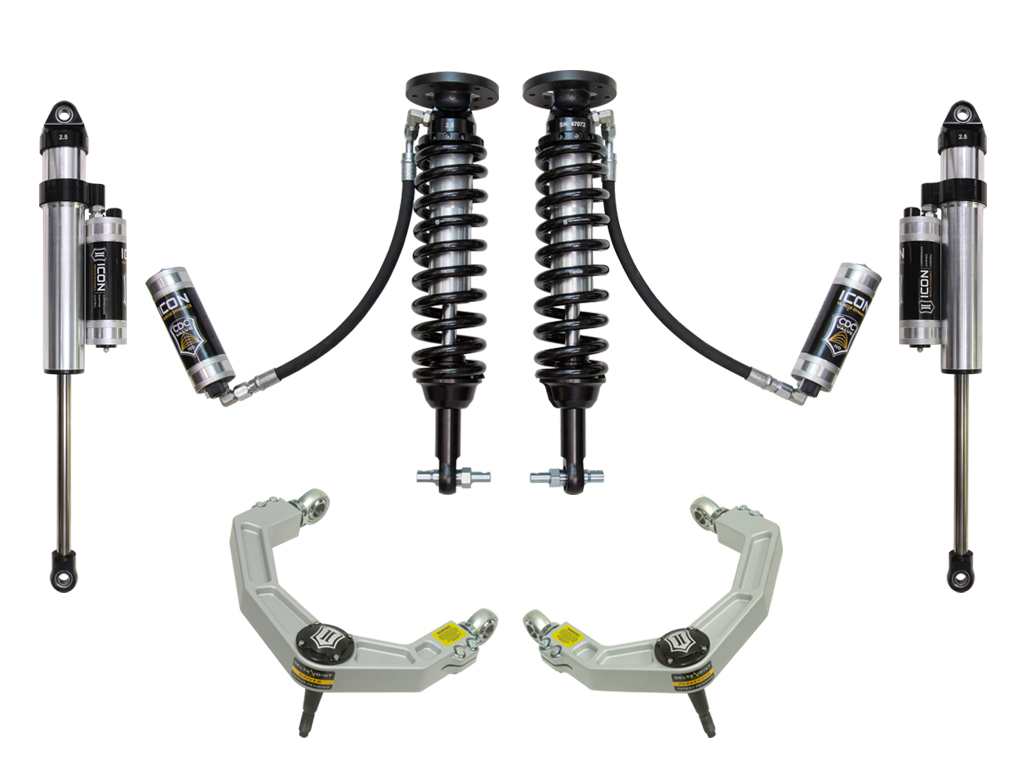

The ICON Vehicle Dynamics 2014 Ford F150 4WD Stage 5 suspension system is the best choice for drivers looking to maximize the on and off-road potential of their trucks and will inspire confidence behind the wheel in nearly any situation.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
This system includes vehicle-specific tuned 2.
5” coilover shocks featuring external remote reservoirs w/ CDCV for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 1.
75-2.
63” of lift over stock allowing the use of larger, more aggressive wheel and tire combinations.
Billet aluminum upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock.
ICON 2.
5 Aluminum Series Piggyback rear shocks w/ CDCV utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
2.
5" CDC reservoir front and rear shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.
ICON's CDC Valve upgrade is included in this stage front and rear for those desiring an easy way to tune the ride externally with 10 settings from soft to hard.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers from 1.
75-2.
63" of lift height
ICON CDCV equipped shocks front and rear for full compression tuneability of your shocks
Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
FK Rod End bearings for extended longevity and minimal deflection
2.
5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
Bolt-on system - No cutting or welding necessary for install
ICON 2014 Ford F150 4WD, 1.
75-2.
63" Lift, Stage 5 Suspension System, Billet UCA, K93065
ICON 2014 Ford F150 4WD, 1.
75-2.
63" Lift, Stage 5 Suspension System, Billet UCA.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2014 Ford F-150 FX4 2014 Ford F-150 King Ranch 2014 Ford F-150 Lariat 2014 Ford F-150 Limited 2014 Ford F-150 Platinum 2014 Ford F-150 STX 2014 Ford F-150 Tremor 2014 Ford F-150 XL ; ; 2014 Ford F-150 XLT ; ;
