2014 Ford F-150 (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K93062T

SUSPENSION SYSTEM
2014 F150 4WD 0-2.
63" STG 2 SUSP TUBE
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Only compatible with OE spindles.
DO NOT install in combination with ANY aftermarket spindles.
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Included tubular front upper control arms are optimized for front lift heights from 1.
75-3" over stock
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
Ships in multiple boxes
2014 FORD F150 4WD 0-2.
63" STAGE 2 SUSPENSION SYSTEM W TUBULAR UCA
2014 FORD F150 4WD 0-2.
63" LIFT STAGE 2 SUSPENSION SYSTEM WITH TUBULAR UCA

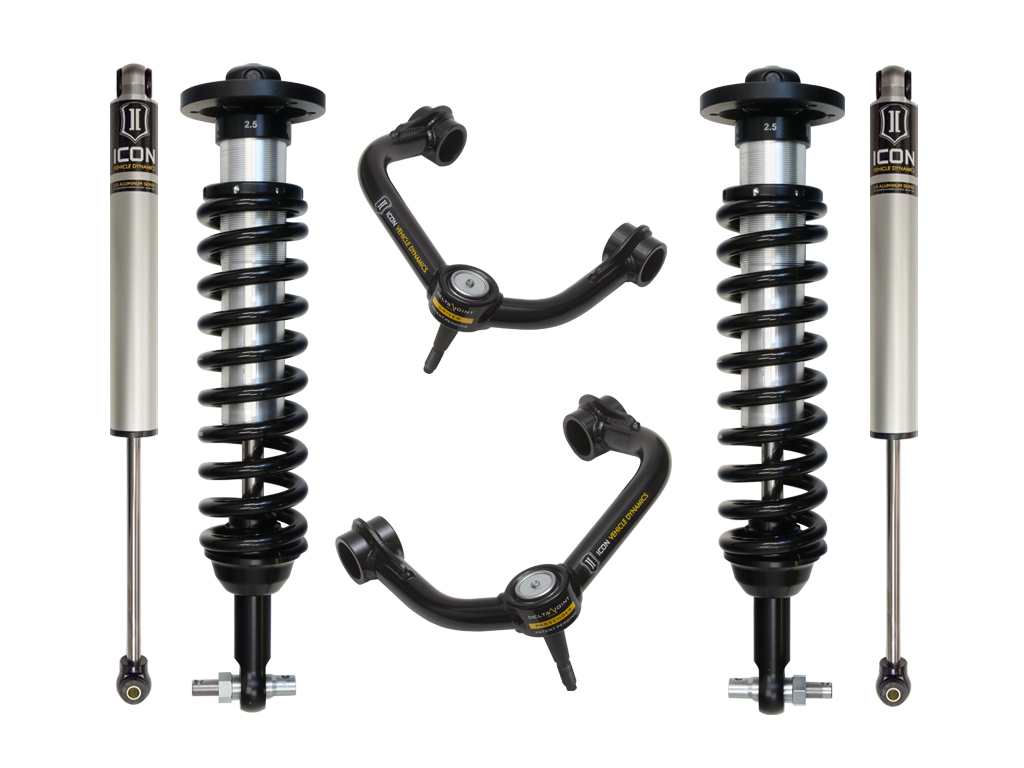

ICON Vehicle Dynamics 2014 Ford F150 suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
The Stage 2 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-2.
63” allowing the use of larger, more aggressive wheel and tire combinations.
Tubular upper control arms on the F150 not only add strength and durability, but help retain factory alignment spec range increasing caster over stock.
ICON 2.
0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2014 F150 4WD Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers provide 0-2.
63" of lift height
Tubular upper control arms for added strength, durability, and improved alignment geometry
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
High strength alloy CNC machined lower bar pin
FK Rod End bearings for extended longevity and minimal deflection
2.
0 aluminum body IFP rear shock with 5/8" polished nitro steel shaft
100% bolt-on system - no drilling, cutting or welding necessary for install
ICON 2014 Ford F150 4WD, 0-2.
63" Lift, Stage 2 Suspension System, Tubular UCA, K93062T
ICON 2014 Ford F150 4WD, 0-2.
63" Lift, Stage 2 Suspension System, Tubular UCA.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2014 Ford F-150 FX4 Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 King Ranch Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Lariat Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Limited Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Platinum Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 STX Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Tremor Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 XL ; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 XLT ; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset; Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
