2014 Ford F-150 (4WD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K93061

SUSPENSION SYSTEM
2014 F150 4WD 0-2.
63" STG 1 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
TECH NOTE: Only compatible with 4-wheel drive (4WD) models
TECH NOTE: Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
TECH NOTE: Included rear shocks are compatible with 0-1" of rear lift over stock on most models
TECH NOTE: Not compatible with models equipped with CNG or LPG fueled engines
Ships in multiple boxes
2014 FORD F150 4WD 0-2.
63" STAGE 1 SUSPENSION SYSTEM
2014 FORD F150 4WD 0-2.
63" LIFT STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics 2014 Ford F150 4WD suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

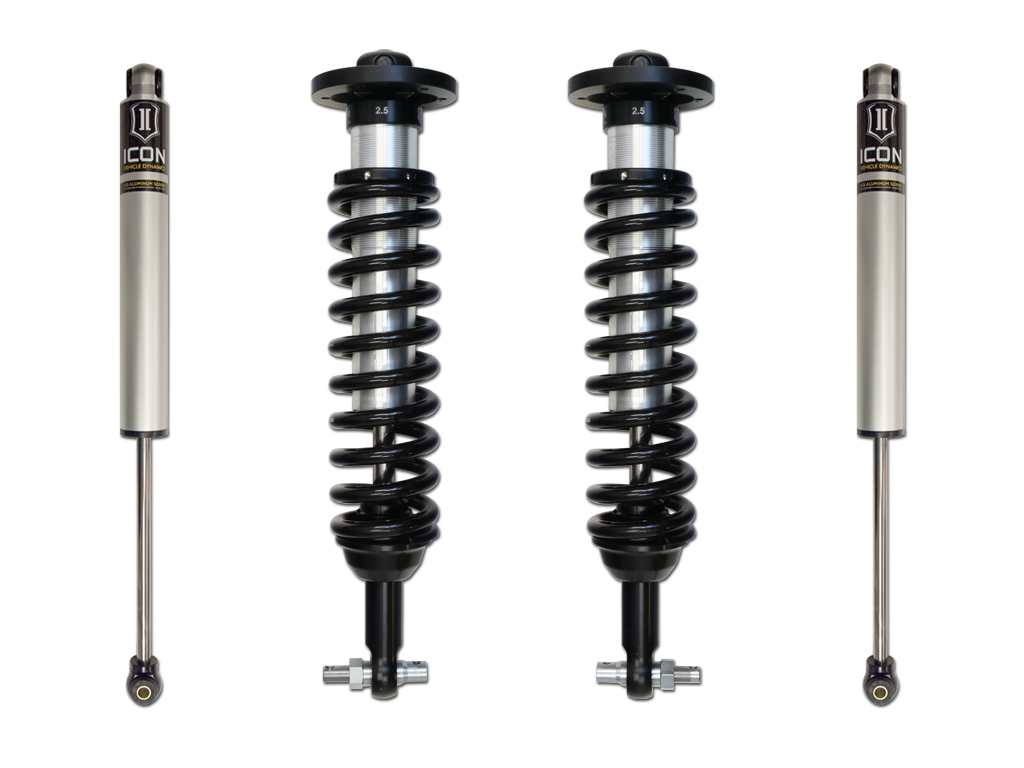

The Stage 1 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-2.
63” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2014 F150 4WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers provide 0-2.
63" of lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
High strength alloy CNC machined lower bar pin
FK Rod End bearings for extended longevity and minimal deflection
2.
0 aluminum body IFP rear shock with 5/8" polished shaft
100% bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2014 Ford F150 4WD, 0-2.
63" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2014 Ford F-150 FX4 Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 King Ranch Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Lariat Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Limited Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Platinum Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 STX Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 Tremor Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 XL ; Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset; Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset 2014 Ford F-150 XLT ; Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset; Lift heights above 2” over stock may require aftermarket front upper control arms to maintain proper alignment
Recommended Aftermarket Wheel Size: 17x8.5 inch with 5” Backspace / 6mm Offset
