10-14 Ford F-150 SVT Raptor Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K93051

SUSPENSION SYSTEM
10-14 FORD RAPTOR STG 1 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes

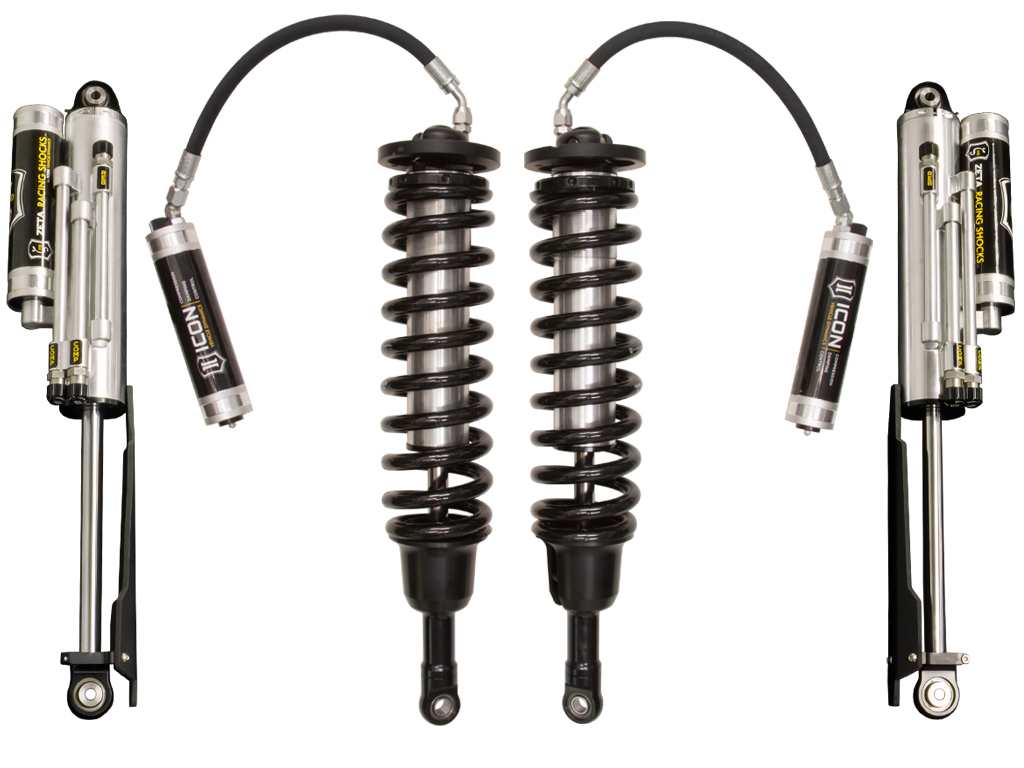

10-14 FORD RAPTOR STAGE 1 SUSPENSION SYSTEM
2010-2014 FORD RAPTOR STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics is known for its extensive research and development put into every product, the revolutionary outcome of this research is what sets ICON apart from the off-road industry standard.
The Ford SVT Raptor was the first production truck, designed and built, to bridge the gap between a standard street “pickup truck” and an off-road pre-runner.
ICON Vehicle Dynamics new 3.
0 Performance Shock System for the SVT Raptor went through rigorous tests both on- and off-road for several months to enhance the overall performance and ride quality.
The engineers at ICON Vehicle Dynamics took a different approach to position sensitive performance in our 3.
0 front coil over shock.
Instead of bypassing a small internal piston at the cost of poor control, road holding, and cornering like a traditional internal position sensitive shock, our shock starts with a true 3” main piston that has robust features such as digressive rebound and flutter stack compression.
This combination produces outstanding control, great response, and unparalleled ride performance.
To achieve even more control for extreme off-road use, we added an additional internal hydraulic system (much like an external mounted hydraulic bump stop) that produces the extreme forces required during the last 40% of travel to achieve maximum bottom out control.
These multiple stages of compression and rebound have been tuned independently to maximize overall performance of the Ford SVT Raptor front suspension.
For owners who wish to optimize the ride specific to his or her liking, the front coil-over shocks are equipped with an external, “Easy to Adjust” Compression Damping Control Valve, that is effective for the entire stroke of the shock.
This compression adjustment valve offers you 10 high resolution settings, each bringing a true feel difference from soft to firm.
Our Rear Zeta Ford SVT Raptor Shocks are a true 3.
0” (inside and out), three tube External Bypass shock.
These are far from the norm when compared to a traditional bypass shock you see on Trophy Trucks and other off-road race vehicles.
Each bypass valve has a specific port design and individually equipped with a different spring rate to ensure proper performance at each zone of shock travel.
These same bypass valves feature dampened valve stops for quiet and precise operation.
That means no clicking noises as you hit bumps or road chatter driving down the road.
The biggest difference in these shocks versus an industry standard bypass shock, are the “Easy-to-Adjust” knobs and the replaceable bypass tubes.
The “Easy to Adjust” Hi Resolution Clicker Knobs do not require any tools for adjustment, and can be adjusted in seconds from plush off-road performance to firm on road manners for extra control while driving the mountains or towing a trailer.
Another unique feature of this shock is the replaceable bypass tubes that can be swapped out during a standard rebuild if any damage were to occur, where a normal bypass shock body would need to be completely replaced, saving you hundreds of dollars.
Key Features of the Raptor Front 3.
0 Coil Over Shock:
3.
0 OEM Replacement Remote Reservoir Compression Adjustable Front Coil Over Shocks
Internal Hydraulic Bump Zone Designed for Maximum G-out Control in the Last 40% of Travel
Easy-to-Adjust High Resolution Compression Adjuster Offers Fine Tuning Adjustments For All Types of Terrains
Direct Bolt in to OEM Location and Optimum Reservoir Positioning for Superb Heat Dissipation and protection
Nitrogen Charged 6063-T832 Aluminum 10” Remote Reservoirs that are Precision CNC Honed and Hard Anodized
Adjustable Ride Height from 1 - 3” of Lift
ICON Engineered Eibach 3 5/8” ID High Quality Chrome Silicon Steel Springs that offer increased travel and performance
Com 12 PTFE Lined Bearings Ensure Maximum Strength and Durability
Oversized 1” Heavy Duty CNC Machined Shock Shafts
Extended Droop Travel and Increased Overall Performance on and off road
Key Features of the Raptor Rear 3.
0 Bypass Shock:
3.
0 OEM Replacement PiggyBack Reservoir Zeta 3 Tube Bypass Rear Shocks
Easy-to-Adjust Detended Adjustment Knobs Offer Quick Adjustability without the Use of Tools
High Resolution Bypass Valves Designed for Noticeable Fine Tune Adjustments in Rebound and Compression
High Flow CNC Machined Welded Bypass Blocks designed to Increase Fluid Flow for Enhanced Performance and High Definition Tuning
Replaceable Bypass Tubes That Can Easy Slide in to Position if you were to Dent or Damage One
Direct Bolt in to OEM Location with Bypass Adjustment Knobs Easily Accessible for Tuning Adjustment
Special Engineered Dampened Valve Stops for Quiet and Precise Operation without the Standard Bypass Loud “Clicking” Noise you will find with Other Brands
Multi Stage Cad Plated Finish with Polished and Anodized Top Cap / Rod Ends
UHMH Machined Shaft and Rod End Protective Shin Guards Standard with Every Kit
ICON 2010-2014 Ford Raptor, Stage 1 Suspension System, K93051
ICON 2010-2014 Ford Raptor, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model Submodel 2010 Ford F-150 SVT Raptor 2011 Ford F-150 SVT Raptor 2012 Ford F-150 SVT Raptor 2013 Ford F-150 SVT Raptor 2014 Ford F-150 SVT Raptor
