04-08 Ford F-150 (RWD) Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K93030

SUSPENSION SYSTEM
04-08 FORD F150 2WD STG 1 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
00” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
25" Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
625" Backspace / 16mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
04-08 FORD F150 2WD 0-2.
63" STAGE 1 SUSPENSION SYSTEM
2004-2008 FORD F150 2WD 0-2.
63" LIFT STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics 2004-2008 Ford F150 2WD suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

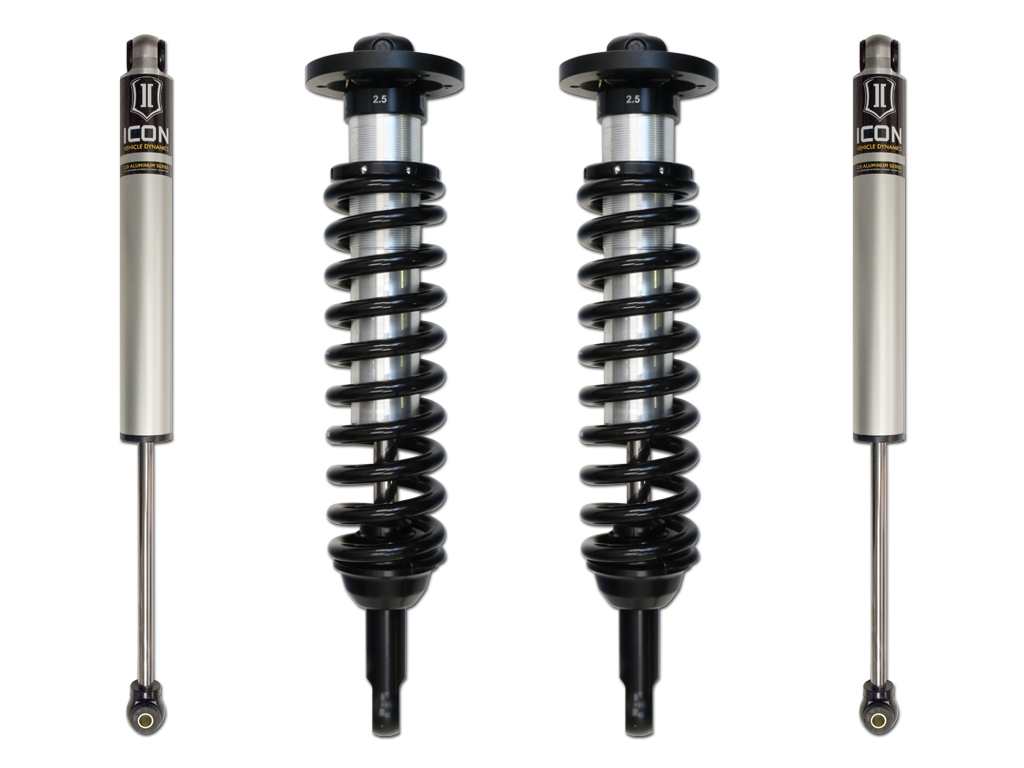

The Stage 1 system includes vehicle-specific tuned 2.
5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-2.
63” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2004-2008 F150 2WD Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Increased wheel travel and ride quality over stock with no change in towing capacity
Unique valving developed for the F150
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable coilovers provide 0-2.
63" of lift height
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
High strength alloy CNC machined lower bar pin
FK Rod End bearings for extended longevity and minimal deflection
2.
0 aluminum body IFP rear shock with 5/8" polished shaft
100% bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2004-08 Ford F150 2WD, 0-2.
63" Lift, Stage 1 Suspension System, K93030
ICON 2004-08 Ford F150 2WD, 0-2.
63" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model 2004 Ford F-150 2005 Ford F-150 2006 Ford F-150 2007 Ford F-150 2008 Ford F-150
