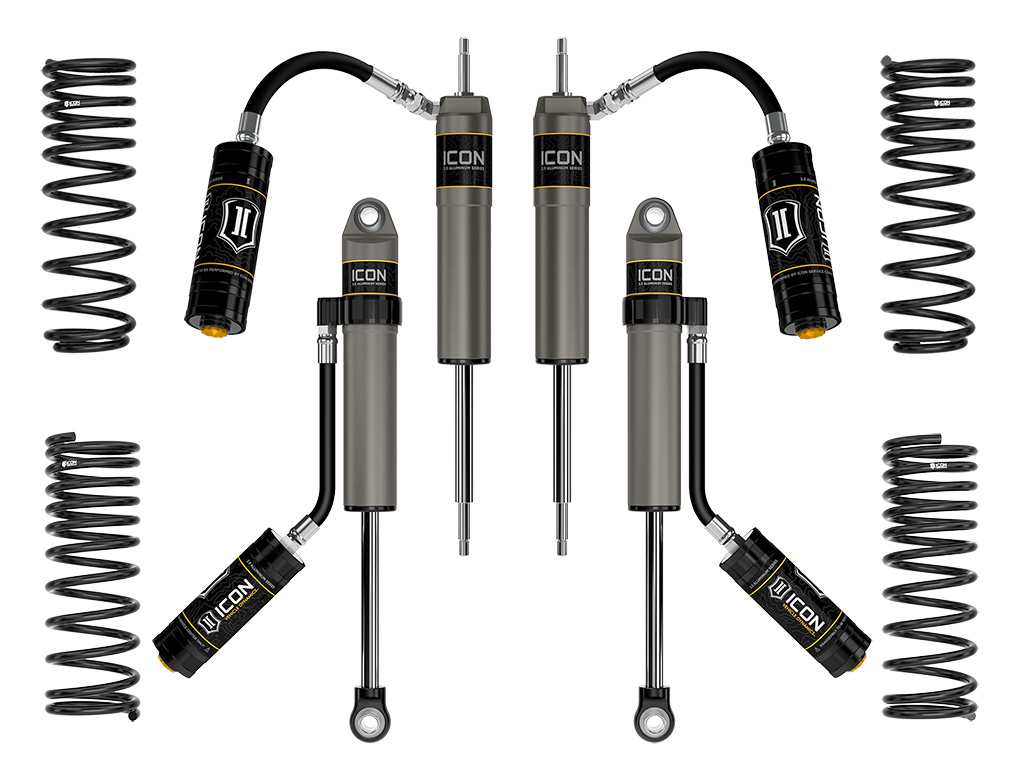

1997-2023 Nissan Patrol Y61 2 Inch Lift Stage 1 Suspension System - ICON Vehicle Dynamics - K83101

The Nissan Patrol (Y61) - a rugged, capable, and reliable off-road platform that has been known for its prowess in harsh and unforgiving environments for nearly two and a half decades. From the deep bush of the Australian Outback to the scorching deserts of Dubai, these vehicles have withstood the test of time and terrain.

ICON Vehicle Dynamics is proud to now offer a suspension system for the Patrol that improves the performance, handling, and ride quality of this already capable vehicle.

Features and Benefits:


The Stage 1 suspension system includes dual rate front and rear coil springs that provide 2 Inch of lift over stock to allow for the installation of larger, more aggressive wheel tire combinations and increased ground clearance. 2.5 Series remote reservoir shock absorbers that feature a vehicle specific valving are also included for optimized ride quality and balanced damping front to rear. The 2.5 Inch remote reservoir shocks ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during extended off-road use. ICON designed these suspension systems to give the Y61 owner confidence in knowing that their vehicle can handle the toughest of situations. Whether it's weekend trips to the dunes or a month-long holiday in the bush, these adventures can now be enjoyed to their full potential.

Front and rear dual rate coil springs provide 2.0 Inch of lift height over stock

Increased front and rear wheel travel over stock

Vehicle specific tuned ICON 2.5 Aluminum Series remote reservoir shocks for superior performance and ride quality

Corrosion resistant hard anodized shock bodies with 7/8 Inch shafts

FK Rod End bearings for extended longevity and minimal deflection

Lifetime guarantee against coil spring breakage or sag

100 Percent bolt-on design


Details


Active Or Passive Suspension: Passive

Adjustable Damping: No

Adjustable Rebound: No

Bushings Included: Yes

Coil Spring End 1 Type: Open

Coil Spring End 2 Type: Open

Coils Quantity Front: 2.0

Coils Quantity Rear: 2.0

Front Reservoir Style: Remote

Front Shock Body Diameter: 2.5

Front Spring Rate Type: Progressive Dual Rate

Grade Type: Performance

Maximum Lift: 2.0 Inch

Maximum Lift Front: 2.0 Inch

Maximum Lift Rear: 2.0 Inch

Mounting Hardware Included: Yes

Oem Wheels & Tires Fitment: Yes

Rear Reservoir Style: Remote

Rear Shock Body Diameter: 2.5

Rear Spring Rate Type: Progressive Dual Rate

Recommended Aftermarket Tires: 305/70R17 (Larger Tires May Fit But Fender Trimming And Modifications Will Be Required.)

Recommended Aftermarket Wheels: Icon Alloys - 17x8.5 With 4.75 Inch Backspace / 0mm Offset

Shocks Included: Yes

Spring Color: Black

Spring Material: Steel

Add On Part: 82021 - 97-23 Patrol (Y61) 2.0 Centerline Stabilizer Kit Resi, 252012 - -4 To -10 Hose Shield Kit
