16-23 Nissan TITAN XD Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K83031

SUSPENSION SYSTEM
K83031
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #115: Lift Heights Based On 4Wd Crew Cab Diesel
Ships in multiple boxes
16-23 NISSAN TITAN XD 3" STAGE 1 SUSPENSION SYSTEM
ICON 2.
5-3” suspension systems lift your Nissan Titan XD while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.
The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability.
With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market.

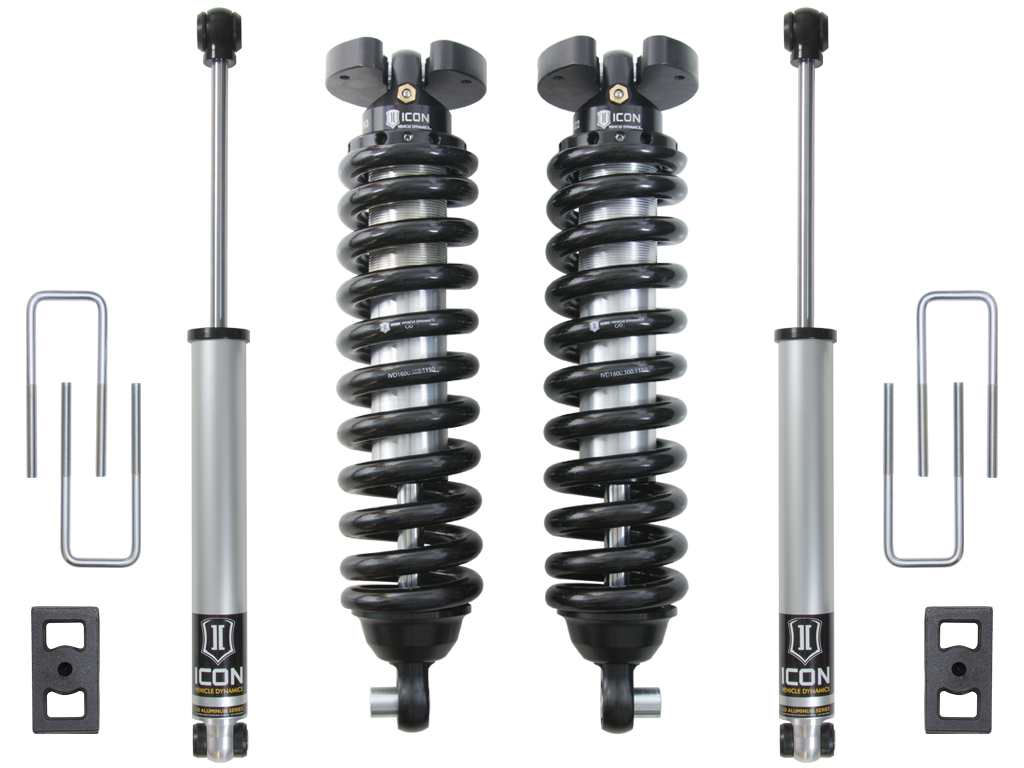

The Stage 1 system includes ICON 2.
5 Series coilovers, 2.
0 Aluminum Series rear shocks, rear lift blocks, and u-bolts.
These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none.
The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Fits 2WD / 4WD applications
Increased ride quality over stock with no change in towing capacity
Approximately 32% increased front wheel travel over stock
Adjustable coilovers provide 2.
5-3" of lift height
Vehicle specific tuned front and rear shocks for superior shock damping and control
6061 aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
Corrosion resistant anodized shock body with 5/8" shaft (2.
0 Aluminum Series shocks)
FK Rod End bearings for extended longevity and minimal deflection
100% bolt-on system
ICON 2016-2023 Nissan Titan XD, 3" Lift, Stage 1 Suspension System, K83031
ICON 2016-2023 Nissan Titan XD, 3" Lift, Stage 1 Suspension System
ICON 16-23 NISSAN TITAN XD 3" STAGE 1 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Fitment Notes 2016 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2017 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2018 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2019 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2020 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2021 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2022 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2023 Nissan TITAN XD Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset
