04-15 Nissan TITAN Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K83002

TITAN STAGE 2 SYS
04-15 NISSAN TITAN 0-3" STAGE 2 SUSP SYS
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
04-15 NISSAN TITAN 2/4WD 0-3" STAGE 2 SUSPENSION SYSTEM
2004-2015 NISSAN TITAN 2/4WD 0-3" LIFT STAGE 2 SUSPENSION SYSTEM
ICON Vehicle Dynamics 2004-2015 Nissan Titan suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

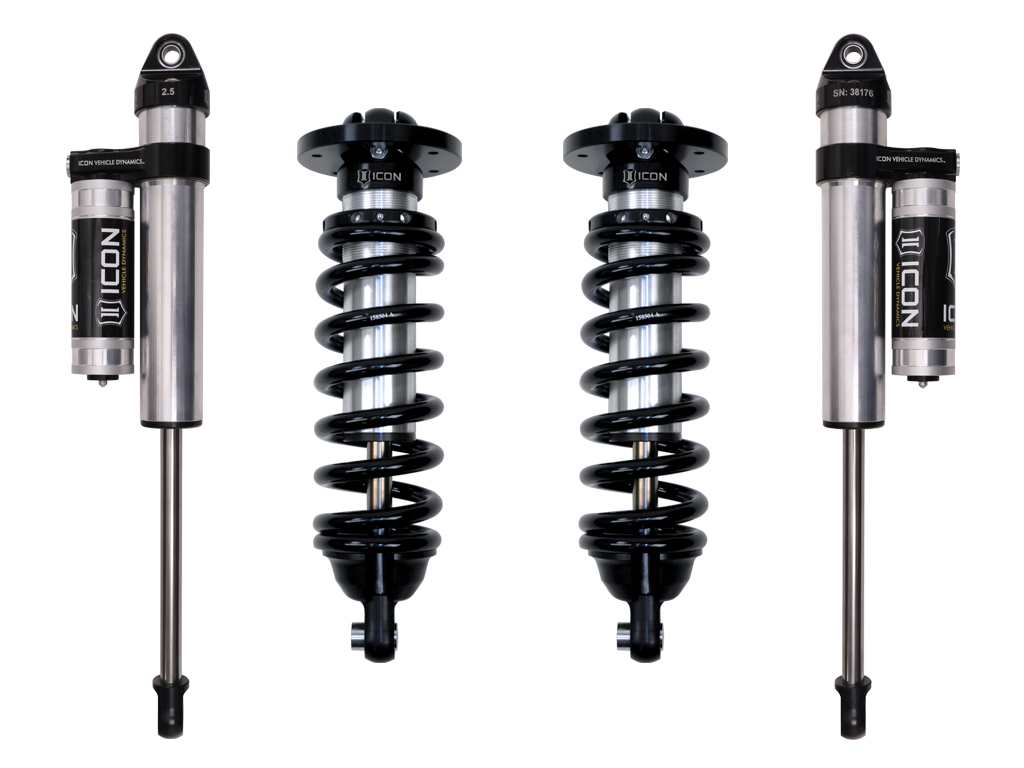

The Stage 2 system includes vehicle-specific tuned 2.
5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
5 Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2004-2015 Nissan Titan Stage 2 suspension system is an excellent choice for those drivers looking to drastically improve the capabilities of their pickup on the road as well as in the dirt.
Fits 2WD and 4WD applications
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers from 0-3" of lift height
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
FK Rod End bearings for extended longevity and minimal deflection
2.
5 Series piggyback reservoir rear shock with 7/8" shaft
100% bolt-on system means no drilling, cutting, or welding necessary for install
ICON 2004-15 Nissan Titan 2/4WD, 0-3" Lift, Stage 2 Suspension System.

Detailed Fitment Results
Year Make Model 2004 Nissan TITAN 2005 Nissan TITAN 2006 Nissan TITAN 2007 Nissan TITAN 2008 Nissan TITAN 2009 Nissan TITAN 2010 Nissan TITAN 2011 Nissan TITAN 2012 Nissan TITAN 2013 Nissan TITAN 2014 Nissan TITAN 2015 Nissan TITAN
