Chevrolet, GMC Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K77102

SUSPENSION SYSTEM
01-10 GM HD 0-2" STAGE 3 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 5.
25” Backspace / 13mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
50" Backspace / 12mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
Ships in multiple boxes
01-10 GM 2500HD/3500 0-2" STAGE 3 SUSPENSION SYSTEM
2001-2010 GM 2500HD/3500 0-2" LIFT STAGE 3 SUSPENSION SYSTEM
The 2001-2010 GM 2500HD / 3500HD requires significant shock damping to comply with the massive spring rate of the factory torsion bar system.
ICON Vehicle Dynamics has developed a range of suspension systems with optimized vehicle specific shock damping.
These systems offer excellent on and off-road drivability.
While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort just like your drive to work.

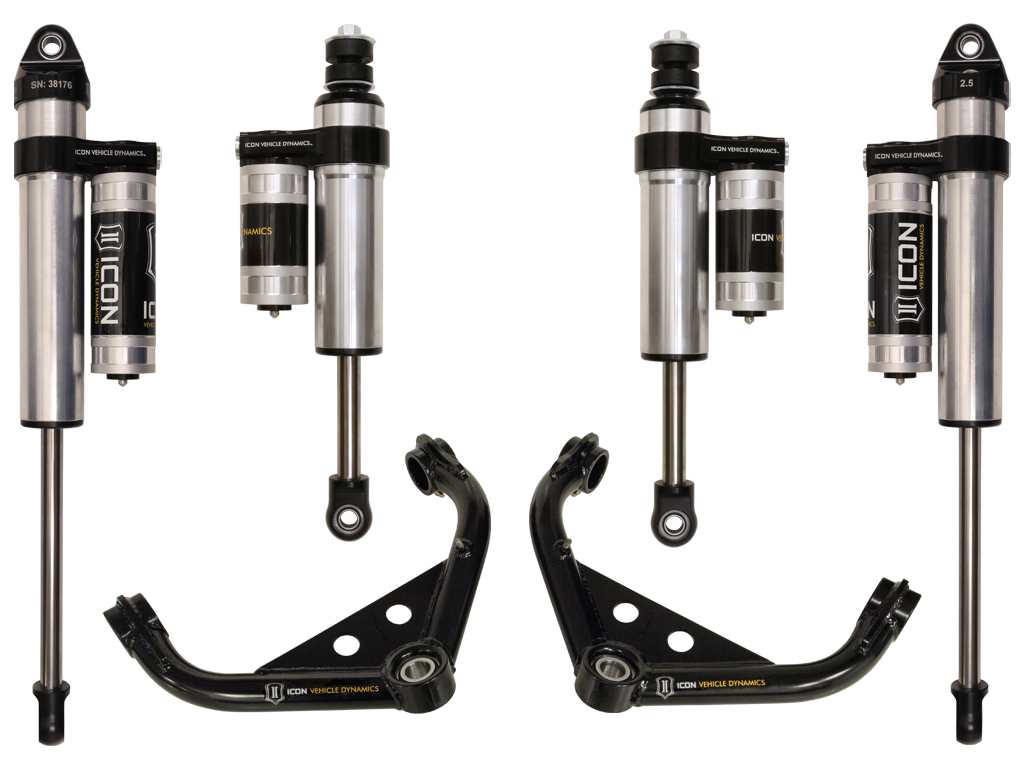

ICON's Stage 3 system is comprised of 2.
5 VS Piggyback front and rear shocks and a tubular steel Delta Joint UCA kit.
The ICON vehicle specific tuned shocks are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 and 1-ton working capability.
This system features upper control arms with ICON's patented Delta Joint.
The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball.
While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements.
The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint.
Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation.
What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.
Vehicle specific tuned front and rear shocks for superior shock damping and control
Tubular steel Delta Joint UCAs for more droop and strength
Improved ride quality over stock with no change in towing capacity
100% bolt-on system
6061 Aircraft grade aluminum CNC machined components
2.
5 Aluminum Series front and rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
ICON 2001-2010 GM 2500/3500 HD, 0-2" Lift, Stage 3 Suspension System, K77102
ICON 2001-2010 GM 2500/3500 HD, 0-2" Lift, Stage 3 Suspension System.

Detailed Fitment Results
Year Make Model 2001 Chevrolet Silverado 2500 HD 2001 Chevrolet Silverado 3500 2001 GMC Sierra 2500 HD 2001 GMC Sierra 3500 2002 Chevrolet Silverado 2500 HD 2002 Chevrolet Silverado 3500 2002 GMC Sierra 2500 HD 2002 GMC Sierra 3500 2003 Chevrolet Silverado 2500 HD 2003 Chevrolet Silverado 3500 2003 GMC Sierra 2500 HD 2003 GMC Sierra 3500 2004 Chevrolet Silverado 2500 HD 2004 Chevrolet Silverado 3500 2004 GMC Sierra 2500 HD 2004 GMC Sierra 3500 2005 Chevrolet Silverado 2500 HD 2005 Chevrolet Silverado 3500 2005 GMC Sierra 2500 HD 2005 GMC Sierra 3500 2006 Chevrolet Silverado 2500 HD 2006 Chevrolet Silverado 3500 2006 GMC Sierra 2500 HD 2006 GMC Sierra 3500 2007 Chevrolet Silverado 2500 HD 2007 Chevrolet Silverado 3500 HD 2007 GMC Sierra 2500 HD 2007 GMC Sierra 3500 HD 2008 Chevrolet Silverado 2500 HD 2008 Chevrolet Silverado 3500 HD 2008 GMC Sierra 2500 HD 2008 GMC Sierra 3500 HD 2009 Chevrolet Silverado 2500 HD 2009 Chevrolet Silverado 3500 HD 2009 GMC Sierra 2500 HD 2009 GMC Sierra 3500 HD 2010 Chevrolet Silverado 2500 HD 2010 Chevrolet Silverado 3500 HD 2010 GMC Sierra 2500 HD 2010 GMC Sierra 3500 HD
