Chevrolet, GMC (Coil/Coil) Suspension Lift Kit - ICON Vehicle Dynamics - K73101

SUSPENSION SYSTEM
K73101
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5 with 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33"x12.
50" (Larger tires may fit but fender trimming and modifications may be required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle.
Increasing weight of vehicle due to accessories will alter lift range.
APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension
APPLICATION NOTE #162: Not compatible with factory air ride equipped vehicles
TECH NOTE: Most SUV submodels equipped with gasoline engines will have front lift height range of 2.
5-3.
25" over stock
TECH NOTE: Most SUV submodels equipped with diesel engines will have front lift height range of 2-2.
75" over stock
TECH NOTE: Most Tahoe/Yukon submodels will have rear lift height range of 3-4" over stock
TECH NOTE: Most Suburban/Yukon XL submodels will have rear lift height range of 2.
5-3.
5" over stock
21-23 GM SUV 2.
5-3.
25" STAGE 1 SUSPENSION SYSTEM
ICON 21-23 GM SUV suspension systems are designed to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.

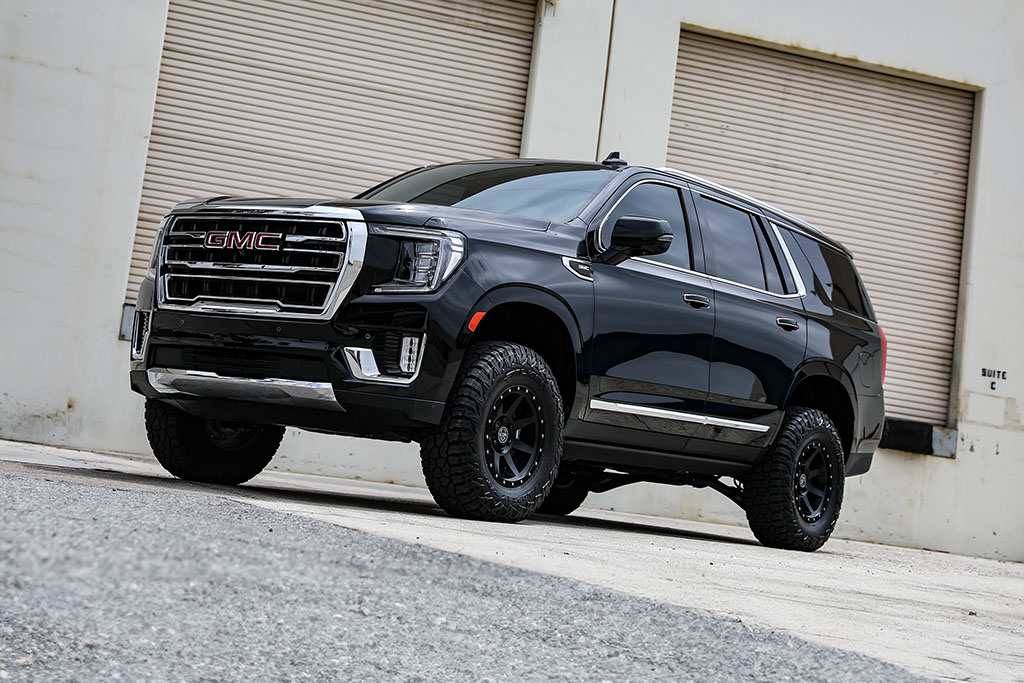

ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
With wheel travel and ride quality in mind, ICON engineers researched each component of the vehicle platform’s suspension and addressed any areas where performance could be extracted.
The Stage 1 system includes vehicle-specific tuned front and rear 2.
5 Series coilover shocks featuring internal reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 2.
5-3.
25” of front lift and 3-4” of rear lift over stock for an aggressive stance and allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
5 Series coilover shocks feature a vehicle-specific valving that balances the performance of the truck from front to rear.
The system also includes fabricated rear toe links for proper rear-end alignment at the new, taller ride heights, ensuring optimal handling.
Additionally, ICON offers the necessary components to make this system compatible with all submodels and configurations that these vehicles are offered from the manufacturer, including those equipped with Magnetic Ride control and/or Adaptive Air Ride suspension.
Features like these make the ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL Stage 1 suspension system an excellent choice for those drivers looking to enhance the capabilities of their SUV on the road as well as in the dirt.
Adjustable front coilovers provide 2.
5-3.
25” of front lift height
Adjustable rear coilovers provide 3-4” of rear lift height
Increased lift height allows for fitment of larger and more aggressive tires
Up to 20% increase in front wheel travel over stock
ICON shocks feature vehicle specific tune for superior performance and ride quality
2.
5 Series coilovers feature corrosion resistant CAD plated shock bodies with 7/8" shafts
Internal nitrogen reservoirs ensure consistent performance under hard use
Fabricated rear toe links allow for proper rear end alignment with taller ride height
FK Rod End bearings provide extended longevity and minimal deflection
Shocks are fully rebuildable and re-tunable
ICON 2021-2023 Chevrolet Tahoe and Suburban/2021-2023 GMC Yukon and Yukon XL, 2.
5-3.
25" Lift, Stage 1 Suspension System, K73101
ICON 2021-2023 Chevrolet Tahoe and Suburban/2021-2023 GMC Yukon and Yukon XL, 2.
5-3.
25" Lift, Stage 1 Suspension System
ICON 21-23 GM SUV 2.
5-3.
25" STAGE 1 SUSPENSION SYSTEM.

Detailed Fitment Results
Year Make Model Submodel Qualifiers Fitment Notes 2021 Chevrolet Suburban LS ; ; 2021 Chevrolet Suburban LT ; ; 2021 Chevrolet Suburban Z71 2021 Chevrolet Suburban RST ; ; 2021 Chevrolet Suburban Commercial 2021 Chevrolet Tahoe LS ; ; 2021 Chevrolet Tahoe LT ; ; 2021 Chevrolet Tahoe Z71 2021 Chevrolet Tahoe RST ; ; 2021 Chevrolet Tahoe Commercial 2021 Chevrolet Tahoe PPV 2021 Chevrolet Tahoe SSV 2021 GMC Yukon XL SLE ; ; 2021 GMC Yukon XL SLT ; ; 2021 GMC Yukon SLE ; ; 2021 GMC Yukon SLT ; ; 2022 Chevrolet Suburban LS ; ; 2022 Chevrolet Suburban LT ; ; 2022 Chevrolet Suburban Z71 2022 Chevrolet Suburban RST ; ; 2022 Chevrolet Suburban Commercial 2022 Chevrolet Tahoe LS ; ; 2022 Chevrolet Tahoe LT ; ; 2022 Chevrolet Tahoe Z71 2022 Chevrolet Tahoe RST ; ; 2022 Chevrolet Tahoe Commercial 2022 Chevrolet Tahoe PPV 2022 Chevrolet Tahoe SSV 2022 GMC Yukon XL SLE ; ; 2022 GMC Yukon XL SLT ; ; 2022 GMC Yukon SLE ; ; 2022 GMC Yukon SLT ; ; 2023 Chevrolet Suburban LS ; ; 2023 Chevrolet Suburban LT ; ; 2023 Chevrolet Suburban Z71 2023 Chevrolet Suburban RST ; ; 2023 Chevrolet Suburban Commercial 2023 Chevrolet Tahoe LS ; ; 2023 Chevrolet Tahoe LT ; ; 2023 Chevrolet Tahoe Z71 2023 Chevrolet Tahoe RST ; ; 2023 Chevrolet Tahoe Commercial 2023 Chevrolet Tahoe PPV 2023 Chevrolet Tahoe SSV 2023 Chevrolet Tahoe Police 2023 GMC Yukon XL SLE ; ; 2023 GMC Yukon XL SLT ; ; 2023 GMC Yukon SLE ; ; 2023 GMC Yukon SLT ; ;
