Chevrolet, GMC Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K73083

SUSPENSION SYSTEM
K73083
Factory Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: 17x8.
5" w/ 5.
46” Backspace / 18mm Offset
Recommended Aftermarket Tires: 35" x 12.
50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
APPLICATION NOTE #55: Shocks are fully serviceable.
Lift heights indicated are for a stock equipped vehicle.
APPLICATION NOTE #152: ICON Delta Joint Pro upper control arms required
APPLICATION NOTE #156: Springs are rated for gasoline engines
APPLICATION NOTE #158: Only fits "Ultra-Wide Stance" vehicles
APPLICATION NOTE #159: Will not fit Chevrolet Colorado WT, LT, Z71, or ZR2.
Will not fit GMC Canyon AT4X.
TECH NOTE: Rear shocks are compatible with 0-1" of rear lift over stock
TECH NOTE: Only compatible with OE steering knuckles.
DO NOT install in combination with ANY aftermarket steering knuckles.
23-24 GM CANYON/COLORADO 1.
75-2.
5" STAGE 3 SUSPENSION SYSTEM W BILLET UCA
ICON suspension systems lift your Canyon/Colorado while improving ride quality and performance.
With endless hours spent testing and tuning our suspension components and shocks, you’ll have the best suspension solution on the market.

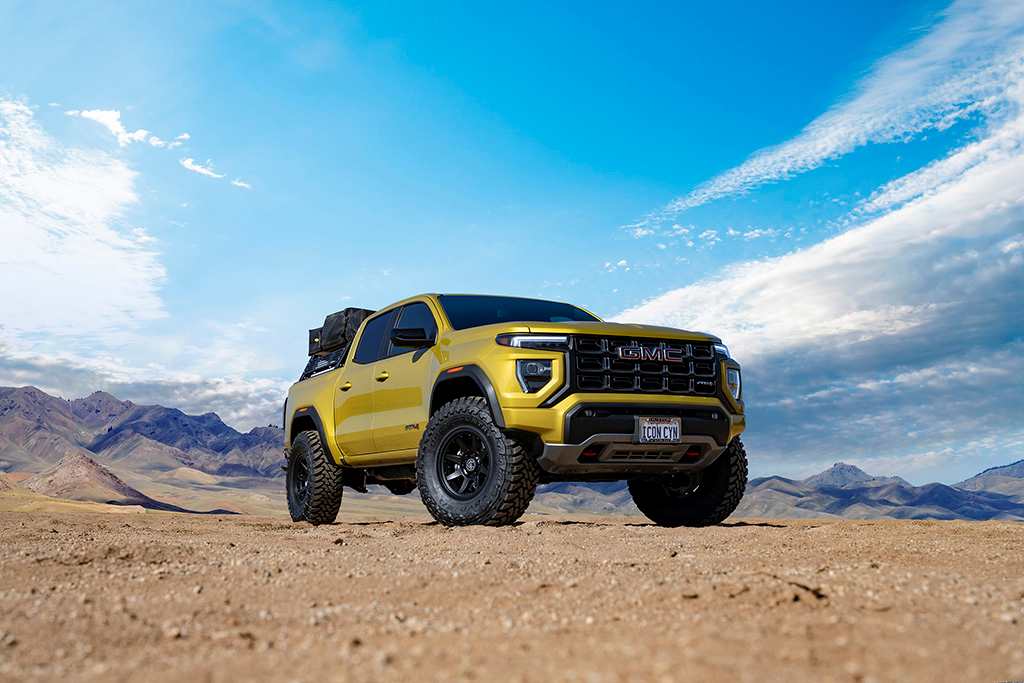

ICON Vehicle Dynamics 2023-2024 GMC Canyon AT4, Denali, and Elevation/Chevrolet Colorado Trail Boss suspension systems are designed with maximum performance and the serious driver in mind.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
This Stage 3 system includes vehicle-specific tuned 2.
5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel.
These coilovers, specifically designed for the wider track width of GMC Canyon and Chevrolet Colorado Trail Boss, are also height adjustable for 1.
75-2.
5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations.
Their extended travel length improves performance by increasing front wheel travel by 20% over stock, for a total of 10.
25”, from full compression to full extension.
Billet aluminum Delta Joint PRO upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and the Delta Joint PROs' increased range of motion allows the fitment of the extended travel coilovers and the increased wheel travel this system provides.
ICON 2.
0 Aluminum Series remote reservoir rear shocks offer improved performance and utilize vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics 2023-2024 GMC Canyon AT4, Denali, and Elevation/Chevrolet Colorado Trail Boss Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
This system features upper control arms with ICON's patented Delta Joint PRO.
Delta Joint PRO is ICON's innovative new suspension articulation joint which combines the durability and longevity of factory style ball joints with performance and strength that exceeds traditional motorsports-style ball joints.
The Delta Joint PRO features a new rebuildable, serviceable design in which any component may be removed, inspected, and replaced without having to purchase a whole new joint.
Strength and durability are improved by using a larger ball with 56% more bearing surface than our standard Delta Joint, along with improved lubrication sealing.
But improved performance is at the heart of the Delta Joint PRO, with a full 90 degrees of articulation, from one extreme to the other.
This represents a 14% improvement in range of motion, over the highly capable original Delta Joint, allowing for maximum bind-free suspension movement through the complete range of travel.
The Delta Joint PRO is built to take the abuse, with a chromoly ball and shaft that has a bearing surface hardened to Rockwell C 55.
The replaceable races are made of graphite-impregnated sintered metal, machined to the finest tolerance to provide a flawless, metal-to-metal bearing interface.
We also redesigned the lubrication system, with lubricant channels that distribute grease more efficiently without extending past the bearing seal.
20% increase in wheel travel over stock and improved ride quality with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior damping and vehicle control
Adjustable Coilovers from 1.
75-2.
5" of front lift height over stock
2.
5 Series extended travel front coilovers with remote reservoirs for improved shock cooling and performance
Billet Upper Control Arms with Delta Joint PRO ball joints for added strength, durability, and alignment spec range with on-vehicle adjustability
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.
0 Aluminum Series rear remote reservoir shocks with 5/8" polished shafts
100% Bolt-on system - no drilling, cutting, or welding necessary for install
ICON 2023-2024 GMC Canyon AT4, Denali, and Elevation/Chevrolet Colorado Trail Boss, 1.
75-2.
5" Lift, Stage 3 Suspension System w/ Billet Upper Control Arms, K73083
ICON 2023-2024 GMC Canyon AT4, Denali, and Elevation/Chevrolet Colorado Trail Boss, 1.
75-2.
5" Lift, Stage 3 Suspension System w/ Billet Upper Control Arms
ICON 23-24 GM CANYON/COLORADO 1.
75-2.
5" STAGE 3 SUSPENSION SYSTEM W BILLET UCA.

Detailed Fitment Results
Year Make Model Submodel 2023 Chevrolet Colorado Trail Boss 2023 GMC Canyon AT4 2023 GMC Canyon Denali 2023 GMC Canyon Elevation 2024 Chevrolet Colorado Trail Boss 2024 GMC Canyon AT4 2024 GMC Canyon Denali 2024 GMC Canyon Elevation
