Chevrolet, GMC Suspension Lift Kit - Front and Rear - ICON Vehicle Dynamics - K73001

SUSPENSION SYSTEM
07-18 GM 1500 1-3" STAGE 1 SUSP SYSTEM
OEM Wheels and Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.
5" w/ 4.
75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.
00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.
50" (Larger tires may fit but fender trimming and modifications will be required.
)
APPLICATION NOTE #48: Slight Modifications To Factory Shock Mounts May Be Required
APPLICATION NOTE #55: Shocks Are Fully Serviceable.
Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #83: Trimming Of The Upper Control Arm Stop Required Or Down Travel Will Be Limited By Upper Arm Stop
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift on most models
TECH NOTE: Not recommended for Hybrid models
Ships in multiple boxes
07-18 GM 1500 1-3" STAGE 1 SUSPENSION SYSTEM
2007-2018 GM 1500 1-3" LIFT STAGE 1 SUSPENSION SYSTEM
ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality.
ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road.
With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform’s suspension and addressed any areas where performance could be extracted.

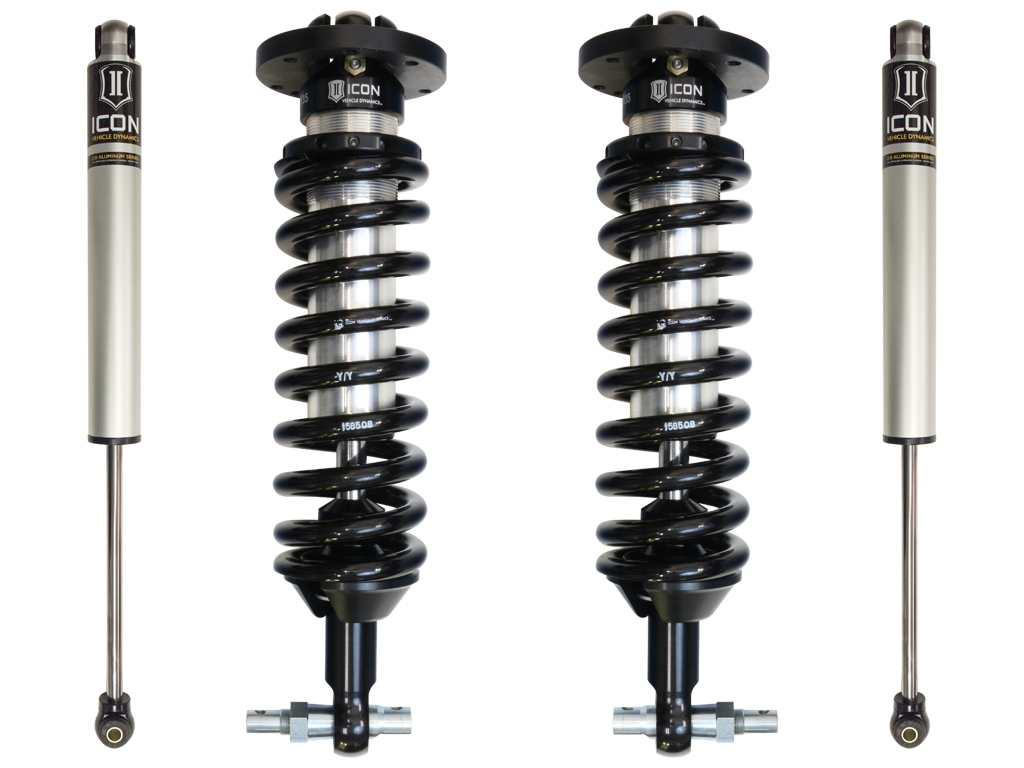

The Stage 1 system includes vehicle-specific tuned 2.
5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel.
These coilovers are also height adjustable from 1-3” allowing the use of larger, more aggressive wheel and tire combinations.
ICON 2.
0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear.
The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Fits 2WD and 4WD models
Increased wheel travel and ride quality over stock with no change in towing capacity
Vehicle specific tuned front and rear shocks for superior shock damping and control
Adjustable coilovers allow for f 1-3" of front lift height over stock
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
High strength alloy CNC machined lower bar pin
FK rod end bearings for extended longevity and minimal deflection
2.
0 Aluminum Series rear IFP shocks with 5/8" shock shafts
ICON 2007-2016 GM 1500, 1-3" Lift, Stage 1 Suspension System, K73001
ICON 2007-2016 GM 1500, 1-3" Lift, Stage 1 Suspension System.

Detailed Fitment Results
Year Make Model Submodel Fitment Notes 2007 Chevrolet Silverado 1500 LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Silverado 1500 LTZ Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Silverado 1500 WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Silverado 1500 LS Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Silverado 1500 Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Suburban 1500 LS Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Suburban 1500 LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Suburban 1500 LTZ Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Suburban 1500 Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Tahoe LS Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Tahoe LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Tahoe LTZ Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 Chevrolet Tahoe Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Sierra 1500 SLE Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Sierra 1500 SLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Sierra 1500 Denali Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Sierra 1500 SL Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Sierra 1500 WT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon SLE Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon SLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon Denali Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon Base Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon XL 1500 Denali Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon XL 1500 SLE Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2007 GMC Yukon XL 1500 SLT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2008 Chevrolet Silverado 1500 LT Recommended Aftermarket Wheel Size: 17x8.5 inch with 4.75” Backspace / 0mm Offset 2008 Chevrolet Silverado 1500 LTZ Recommended Aftermarket…
